Product Overview

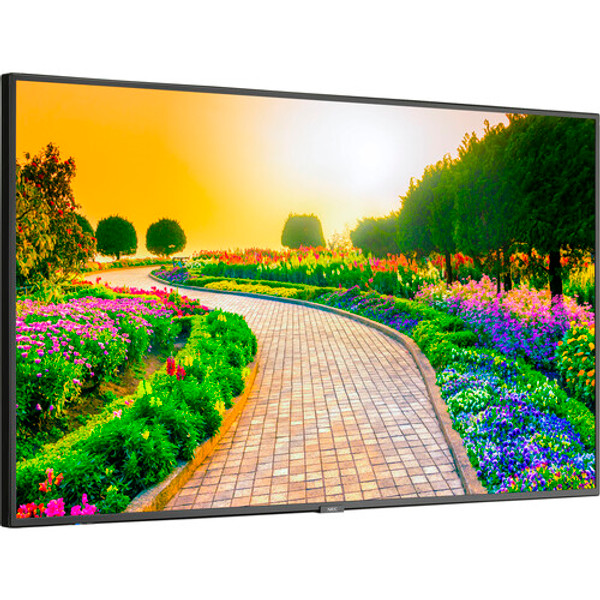

Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays with anti-glare 40-point edge to edge PCAP touch pre-installed. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also allowing the modularity possibilities to customize their needs dependent on their application and use. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters – the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget.

Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
Accepts Intel® Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays
Raspberry Pi Compute Module 4 allows for future proof expansion and NEC Mediaplayer support
Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
500 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
Integrated Media Player allows for audio, video or image playback via USB
Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
Integrated Ambient Light Sensor allows the display to autmatically adjust its luminance based on external brightness conditions
Energy Star 8.0 Certified Product
Full 3 year commercial warranty to allow for peace of mind and protection of your investment
NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations

Specifications

Contrast Ratio 8000:1
Viewing Angle 178/178
Response Time 8 ms
Screen Size (Diagonal) 55"
Inputs Digital: HDMI (2.0 x 2 with HDCP), DisplayPort (1.2 with HDCP) Audio: 3.5 Mini-Jack x2, DisplayPort Audio, HDMI Audio x3 External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) Data: USB 2.0 (Media Player)
Outputs Audio: 3.5mm Mini-Jack
Monitor Configuration General Use Monitor
Brightness (cd/m) 500
Native Resolution 3840 x 2160
Display orientation Landscape & Portrait
Duty Cycle (Hours of Use) 16/7
WiFi No
