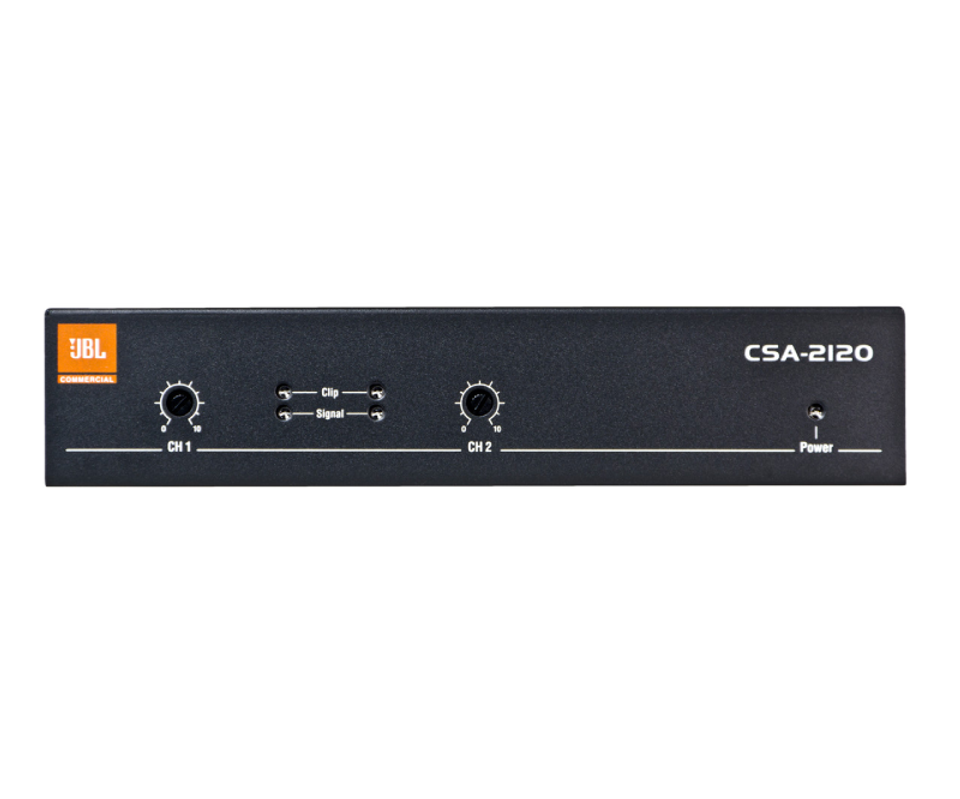

The CSA-2120 is a professional-grade power amplifier built for commercial and installed sound applications. The amplifier is a two-channel model providing simple analog front-end processing with a switch-mode universal power supply.
Product Overview
Features
- 2 x 120W at 4/8Ohms
- Plenum Rated (UL2043)
- Compact size and light weight
- Convection Cooled
- Auto-standby mode for energy savings
- Summing RCA inputs for each channel
Specifications
Output 120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%)
Frequency Response +/- 1dB (@1W into 4 or 8 Ohms)
Load Impedance Stable from 2 - 16 Ohms
Sensitivity 1.4Vrms
Signal to Noise Ratio Greater than 100 dB - 1kHz, A-weighted
Input Impedance Balanced 20K Ohms/Unbalanced 10K Ohms
Max Input +20dBu Typical
Dimensions 8.2" x 1.7" x 7" (209 mm x 44 mm x 178 mm)
Shipping Weight 2.9 Lbs (1.3 Kg)
Included Accessories Rack mounting kit
Warranty Information
This product has a limited warranty of 12 months.
