Product Overview

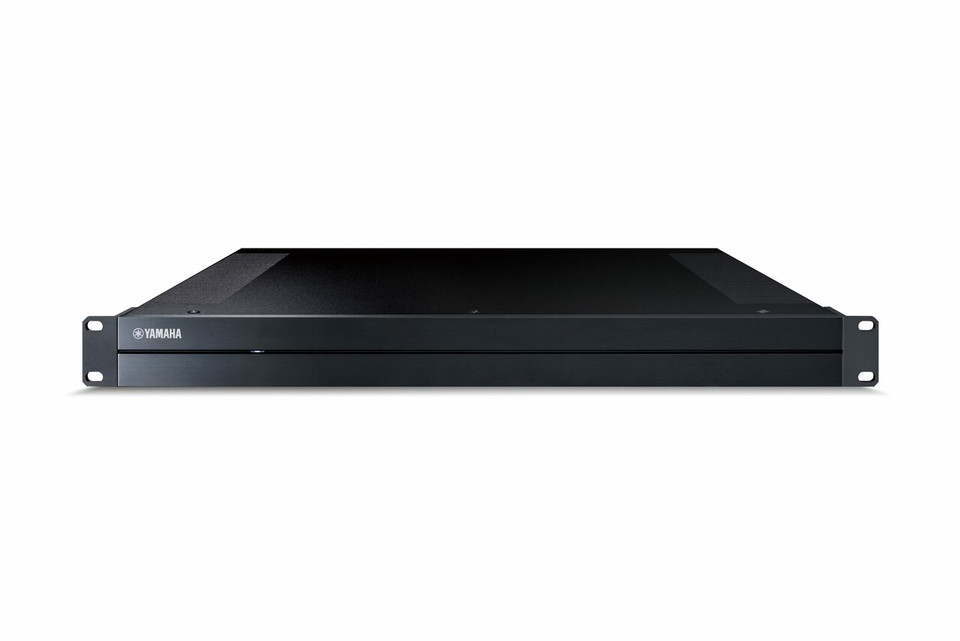

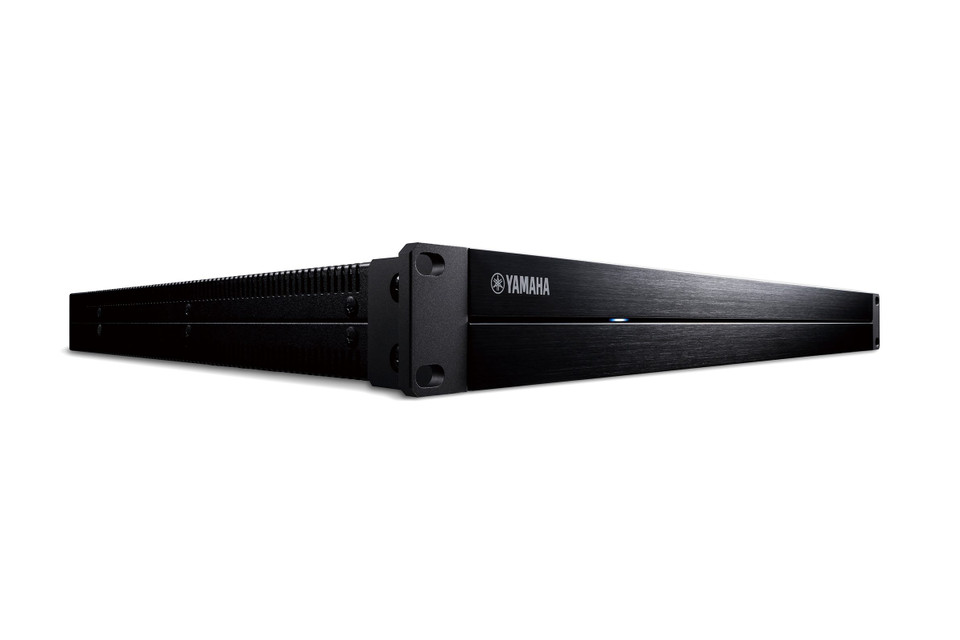

Specially designed for custom integration of whole home audio systems, the "QS" (Quad Streamer) provides four zones of audio streaming and eight channels of high-performance audio amplification in an ultra-slim, 1U-high, rack-mountable enclosure. Expandable and extremely flexible, the QS works with the MusicCast multi-room audio system, allowing it to be linked with home theater AV receivers, sound bars and Hi-Fi gear in a wide variety of configurations.

Designed for custom integration of a MusicCast multi-room audio system connected via Ethernet LAN in a rack or cabinet
Streams four zones of audio per unit, expandable to 32 zones with simultaneous playback in linked groups of up to 20 zones each
Eight channels of audiophile-grade Class D amplification assignable to any zone, bridgeable and 4-ohm capable, featuring a unique ground loop/hum-free circuit design
Built-in Pandora^®, Spotify, SiriusXM Internet Radio, SiriusXM Music for Business, TIDAL, Deezer, Napster and more, plus access to music libraries and linked external sources
Easy control via a free MusicCast app and 3rd-party control systems
1U-high, rack-wide enclosure; removable rack ears and faceplate included

Multi-Room Amplifier

Network Section

File Format

Ethernet

AirPlay

Audio Specifications

Channel

Minimum Speaker load Capability

BTL Connection

Speaker Output Terminal

Preout Terminal

Audio Input Terminal

Audio Output Terminal

Trigger In / Out

Remote In / Out

Chime

Rated Output Power (1 kHz, 0.9% THD, 2ch driven)

Rated Output Power (1 kHz, 0.9% THD, 1ch driven)

Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst)

Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst)

Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst)

Maximum Effective Output Power

Total Harmonic Distortion

Frequency Response

Signal to Noise Ratio

Rated Output Level / Output Impedance

Maximum Output Level

Maximum Input Signal

Gain

Input Sensitivity

Web Setup

Direct Mode

Monaural Downmix

Compressed Music Enhancer

Volume Adaptive EQ

Volume Control

EQ Characteristics

Bass Extension

General

Power Consumption

Standby Power Consumption

Power Management (Auto Power Standby)

Dimension (W × H × D) mm

Weight

		XDA-QS5400RK
Multi-Room Amplifier Specs
Network Section	File Format	MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, WAV / FLAC / AIFF: up to 192 kHz / 24-bit
	Ethernet	Yes (2 terminals)
	AirPlay	Yes (AirPlay 2 via firmware update)
Audio Specifications	Channel	8 Channel (2 channel x 4)
	Minimum Speaker load Capability	4 ohm
	BTL Connection	Yes
	Speaker Output Terminal	4 (Euroblock)
	Preout Terminal	4
	Audio Input Terminal	RCA: 2 (CUT IN, AUX), USB: 4
	Audio Output Terminal	RCA (2-ch through out): 2 (CUT IN, AUX)
	Trigger In / Out	0 / 4
	Remote In / Out	1 / 1
	Chime	4
	Rated Output Power (1 kHz, 0.9% THD, 2ch driven)	Normal (4 / 8 ohms): 90 / 50 W, Bridge (8 ohms): 100 W
	Rated Output Power (1 kHz, 0.9% THD, 1ch driven)	Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms):200 W
	Dynamic Power (20 Hz-20 kHz, 0.08% THD, 2ch driven, 20 ms burst)	Normal (4 / 8 ohms): 80 / 40 W, Bridge (8 ohms): 150 W
	Dynamic Power (1 kHz, 0.9% THD, 2ch driven, 20 ms burst)	Normal (4 / 8 ohms): 100 / 50 W, Bridge (8 ohms): 200 W
	Dynamic Power (1 kHz, 0.9% THD, All ch driven, 20 ms burst)	Normal (4 / 8 ohms): 80 / 50 W, Bridge (8 ohms):170 W
	Maximum Effective Output Power	[1-ch driven, 1 kHz, 10% THD] Normal (4 / 8 ohm): 130 / 65 W, Bridge (8 ohm): 260 W
	Total Harmonic Distortion	[SP OUT, 20 Hz-20 kHz, 25 W, 8 ohm] 0.04%, [PRE OUT, 20 Hz-20 kHz, 1 V] 0.005%
	Frequency Response	[1 kHz + 0 / -3 dB] PRE OUT NET / USB IN, AUX IN: 10 Hz-22 kHz, SP OUT NET / USB IN, AUX IN: 10 Hz-22 kHz
	Signal to Noise Ratio	[PRE OUT NET / USB IN] 114 dB, [PRE OUT AUX IN] 108 dB, [SP OUT NET / USB IN] 106 dB, [SP OUT AUX IN] 104 dB
	Rated Output Level / Output Impedance	[PRE OUT L / R, 1 kHz] 2.0 V / 470 ohm
	Maximum Output Level	[PRE OUT L / R, 0.9% THD] 4.0 V
	Maximum Input Signal	[PRE OUT L / R, 0.9% THD] 2.4 V
	Gain	[SP OUT 1 V Input] 25.8 dB
	Input Sensitivity	[1 W Power, 8 ohm] 150 mV, [MAX (50W) Power, 8 ohm] 1.0 V
	Web Setup	Yes
	Direct Mode	Yes
	Monaural Downmix	Yes (stereo playback or monaural downmix selectable)
	Compressed Music Enhancer	Yes
	Volume Adaptive EQ	Yes
	Volume Control	Support Terminals: PRE OUT / SP OUT, Range: Mute, -80 dB ~ 0 dB, Step: 0.5 dB
	EQ Characteristics	[Bass] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Center Frequency: 350 Hz, [Mid] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Center Frequency: 1.1 kHz, [Treble] Variable Width: +6.0 dB ~ -6.0 dB / 0.5 dB step, Center Frequency: 3.5 kHz
	Bass Extension	Yes
General	Power Consumption	130 W, [All Zone On] No Signal Condition: 40 W, [All Zone Off] Chime On: 18.2 W, Cut In Power On Enable: 18.2 W
	Standby Power Consumption	Network Standby Off: 0.2 W, Network Standby On(1 Zone): 3.2 W, Network Standby On(All Zone): 6.0 W
	Power Management (Auto Power Standby)	5 / 20 min, 2 / 4 / 8 / 12 hours selectable
	Dimension (W × H × D) mm	[Table Top Mount with Adhesive Feet] 17-1/4” x 1-3/4” x 17-3/8”, [Table Top Mount with Adhesive Feet and Faceplate] 17-1/4” x 1-3/4” x 17-7/8”, [Rack Mount] 18-7/8” x 1-3/4” x 17-3/8”, [Rack Mount with Faceplate] 18-7/8” x 1-3/4” x 17-7/8”
	Weight	13.9 lbs.
