Product Overview

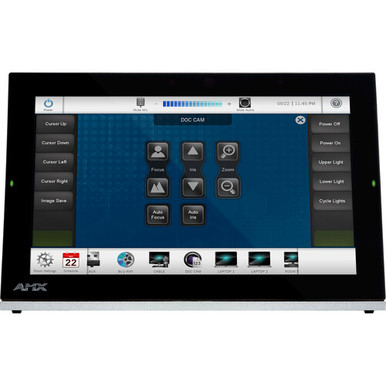

Control your conference room presentations, classroom materials, or home systems with the MT-1002 Modero G5 Tabletop 10.1" Multi-Touch Panel from AMX. The panel is designed for use on a table top and provides a multi-touch display to control systems and presentations using built-in document viewers and a web browser.
The panel connects to your network via Ethernet, and it can navigate to content using the browser, USB, or cloud storage. It features multiple security modes, and it can be controlled using a USB keyboard and mouse.
- The Modero G5 is ideal for boardrooms, conference rooms, or auditoriums where a premium control surface is needed to provide access to multiple functions simultaneously while remaining elegantly unobtrusive.
- In higher education, the Modero G5 is ideal for lecture halls, auditoriums, performing arts theaters, and boardrooms that require extensive control capabilities.
- In residences, it is perfect for kitchens, bedrooms, or home offices where it can be used to manage systems throughout the home.
- Compact 10.1" Touchscreen Controller
- For Conference Rooms, Homes, Classrooms
- Presentations, Web Browsing, Documents
- Connects to Network via IP
- For Use on Table or Surface
- USB Port for Keyboard/Mouse, Speaker
Specifications
Display
Display Size 10.1"
Panel Type LCD
Aspect Ratio 16:9
Native Resolution 1280 x 800
Maximum Brightness 350 nits / cd/m2
HDR Support No,
Contrast Ratio 800:1
Refresh Rate 60 Hz
Variable Refresh Technology No
Bit Depth / Color Support 8-Bit (16.7 Million Colors)
Viewing Angle (H x V) 89 x 89°
Screen Area 8.5 x 5.4" / 217 x 136 mm
Dot Pitch 0.17 x 0.17 mm
Pixels Per Inch (ppi) 149 ppi
Finish Anti-Glare / Matte
Touchscreen Technology Capacitive
Connectivity
Outputs No
HDCP Support No
USB I/O 1x USB-A 2.0
Ethernet I/O 1x RJ45 10/100 Mb/s Ethernet
Speaker
Built-In Speakers Yes, 1x 2 W
Environmental
Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature 39 to 284°F / 4 to 140°C
Operating Humidity 20 to 85%
Storage Humidity 5 to 85%
Electrical
Power Consumption Standby: 5.8 W ,Maximum: 12.9 W
General
Certifications FCC, CE, IEC, IC, UL, VCCI, RoHS, WEEE
Lock Slot No
Dimensions 10 x 6.2 x 4.1" / 255 x 157 x 103 mm
Weight 2.599 lb / 1.179 kg
