Product Overview
Atlona UHD-EX Overview
Use the Atlona 4K/UHD HDMI Over HDBaseT Receiver with Control and PoE (100m) to convert an incoming HDBaseT signal to HDMI and connect it to a display or projector. This receiver offers connections for HDMI video and audio, bidirectional IR control, RS-232 control, and Ethernet all over a single HDBaseT connection. HDBaseT is advantageous as it allows for longer cable distances than HDMI alone, while carrying other important signals along a single cable. 4K HDMI resolutions are supported, as is HDCP 2.2 in order to play protected high-resolution content. As this receiver accepts downstream power using the HDBaseT connection, no separate power supply is required.
4K/UHD Capability
Compatible with Ultra High Definition sources and displays
Prepares AV systems for technological improvements, 4K/UHD streaming services, and playback devices
Prepares AV systems for technological improvements, 4K/UHD streaming services, and playback devices
HDCP 2.2 Compliant
Adheres to latest specification for High-bandwidth Content Protection
Allows protected content stream to pass between devices
Allows protected content stream to pass between devices
Remote-Powered Receiver
Industry standard IEEE 802.3af PoE for receiver is supplied by transmitter over HDBaseT
Extended Distance HDMI Extension
Receives HDMI signals up to 328' @ 1080p with Cat 5e/6 or 4K/UHD using Cat 6a/7 cable
Flexible Bidirectional IR Control Capabilities
IR input designed to work with 12V IR receivers for source control

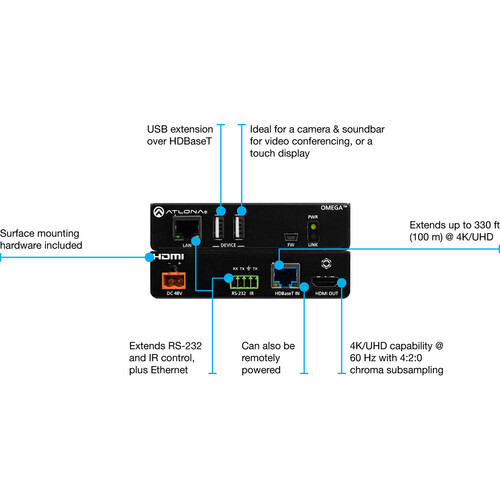

Rear Panel I/O Connectors
Placement of ports on rear panel simplifies wire management
Multi-Channel Audio Compliant
Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, and DTS-HD Master Audio
Allows any multi-channel audio stream to be used within a professional audio system
Allows any multi-channel audio stream to be used within a professional audio system
Field Updatable Firmware
Front panel USB port provides an easy means for kit upgrades
Ensures long term system return on investment
Ensures long term system return on investment
Front Panel Power and Link Status LEDs

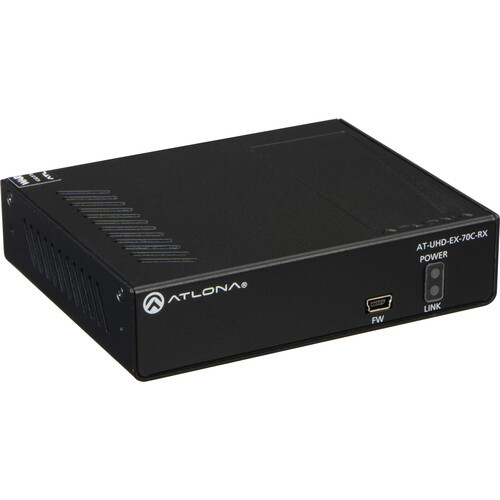

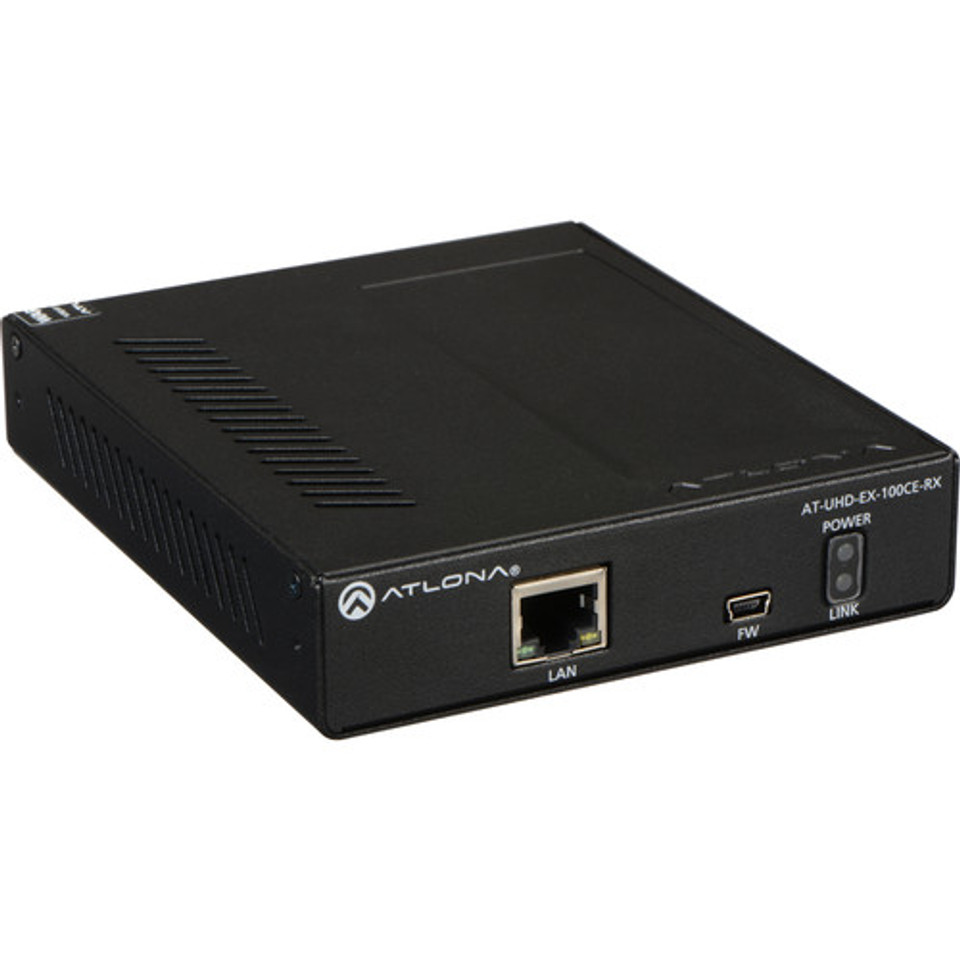

LED indicators provide power and HDBaseT link status information
Provides easy setup and troubleshooting
Provides easy setup and troubleshooting
Low-profile, 1" high quarter-rack width enclosure
Easy installation in confined spaces behind displays and above projectors
Atlona UHD-EX Specs
| Video Resolutions | 4096 x 2160 @ 24/25/30/50/60 Hz, 3840 x 2160 @ 24/25/30/50/60 Hz, 2048 x 1080p, 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz, 1080i @ 50/59.94/60 Hz, 720p @ 50/59.94/60 Hz, 576p, 576i, 480p, 480i |
| VESA Configuration | 2560 x 2048, 2560 x 1600, 2048 x 1536, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1600 x 900, 1440 x 900, 1400 x 1050, 1366 x 768, 1360 x 768, 1280 x 1024, 1280 x 800 1280 x 768, 1152 x 768, 1024 x 768, 800 x 600, 640 x 480 |
| Colorspace Standards | YCbCr, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Audio | Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Bit Rate: Up to 24-bit |
| Distance | Cat 5e/6 @ 4K up to 230' / 70 m Cat 6a/7 @ 4K up to 328' / 100 m Cat 5e/6 @ 1080p up to 328' / 100 m HDMI IN/OUT @ 4K up to 15' / 5 m HDMI IN/OUT @ 1080p up to 30' / 10 m |
| Signal | Bandwidth: 10.2 Gbps CEC: Pass through HDCP: Supports up to 2.2 |

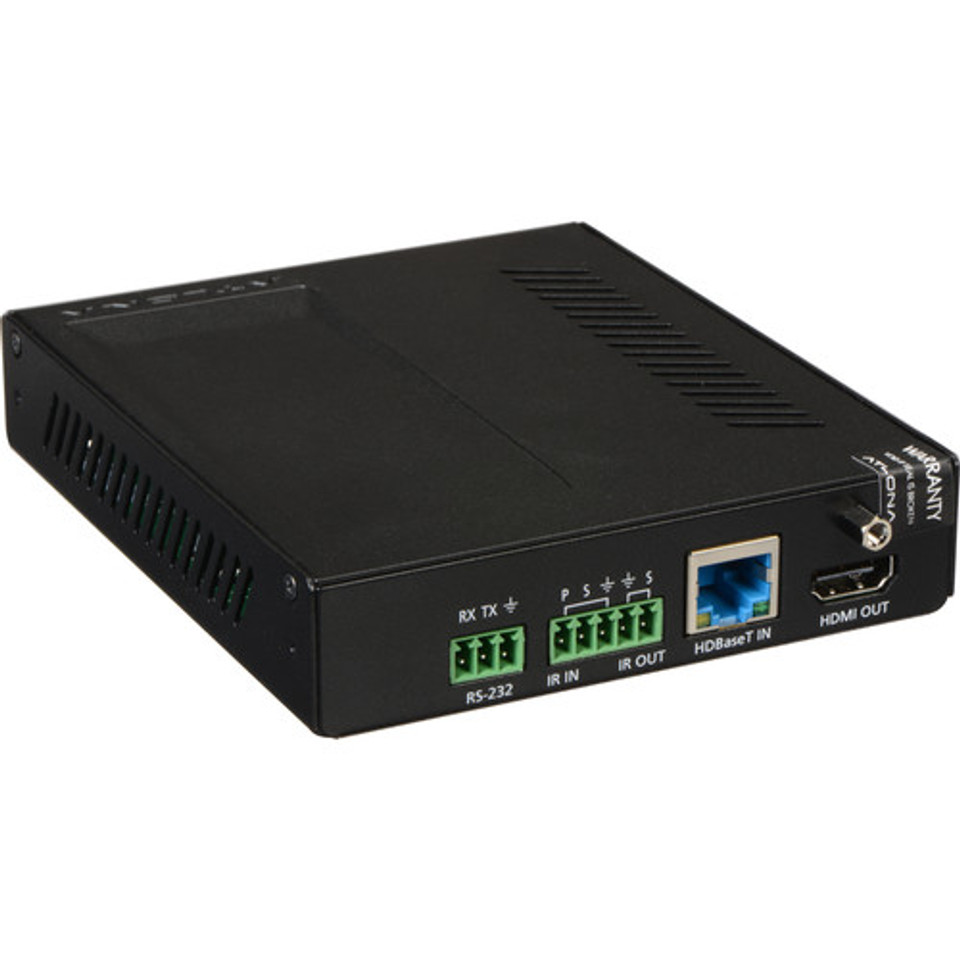

| Connectors | 1 x Mini-USB type B, firmware 1 x RJ45, HDBaseT 1 x HDMI type A, HDMI output 1 x RJ45, LAN 1 x 5-pin captive screw, IR 1 x 3-pin captive screw, RS-232 1 x 2-pin captive screw, 48 V power |
| Temperature | Operating: 32 to 104°F / 0 to 40°C Storage: -4 to 140°F / -20 to 60°C Humidity: 20 to 90%, non-condensing |
| Power Consumption | 15.2 W |
| Power Supply | Input: 100 - 240 VAC, 50/60 Hz Output: 48 VDC, 0.83 A |
| Certifications | Power Supply: CE, FCC, RoHS, cULus, RCM, CCC Receiver: CE, FCC |
| Dimensions | With Ears: 1.1 x 4.7 x 3.5" / 27 x 119 x 89 mm Without Ears: 1 x 4.3 x 3.5" / 25 x 109 x 89 mm |
| Weight | 0.9 lb / 390 g |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
