Product Overview

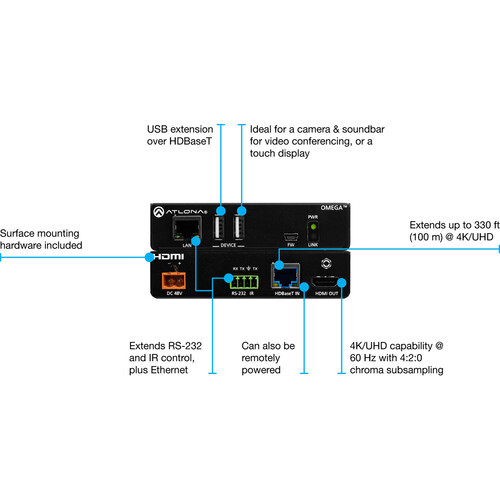

The Omega 4K HDMI/USB over HDBaseT Extender Kit from Atlona is an HDBaseT extender set for video up to DCI/UHD 4K60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330' away. Part of the Omega Series of integration products for modern AV communications and collaboration, the extension kit is HDCP 2.2 compliant and extends IR, RS-232, and IP control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations and is ideal for software video conferencing and touch or interactive displays. The transmitter includes a USB 2.0 host interface for a computer plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. The receiver provides two USB interfaces for devices such as a camera, soundbar, or display. The transmitter and receiver are also available separately, for use with other Omega Series integration products.
The kit incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The receiver remotely powers the transmitter over HDBaseT. The Ethernet ports on the transmitter and receiver are for IP pass-through. It also features integrated USB extension over HDBaseT up to 330', providing an interface for host computers and USB peripherals and making this kit ideal for video conferencing and UC (unified communications) platforms such as Zoom, Skype for Business, Microsoft Teams, Cisco Webex, BlueJeans, and GoToMeeting.
The Omega 4K/UHD HDMI/USB over HDBaseT Transmitter from Atlona is an HDBaseT transmitter for video up to 4K60 4:2:0 plus embedded audio, control, Ethernet, and USB over distances up to 330'. Part of the Omega series of integration products for modern AV communications and collaboration, the OME-EX-TX is HDCP 2.2 compliant and transmits IR, RS-232, and IP control signals. With a matching HDBaseT receiver, the integrated USB extension is ideal for software video conferencing and the use of touch or interactive displays. The OME-EX-TX includes a USB host for a computer, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.
Specifications
Interfaces
Inputs 1x RJ45 (HDBaseT) Female
Outputs 1x HDMI (HDMI 2.0) Female,2x USB-A Female,1x Block 4-Pin (RS-232) Female
Embedded Audio Output HDMI: 2-Channel ,RJ45: 2-Channel
Other I/O 1x RJ45 10/100 Ethernet Input/Output ,1x Mini-USB Input
Standards
HDCP Support Yes, Version 2.2
Transmission
Max Transmission Distance
DCI 4K, UHD 4K:
295.3' / 90 m (via Cat 5e)
1080p, DCI 4K, UHD 4K:
328.1' / 100 m (via Cat 6/6a/7)
1080p:
328.1' / 100 m (via Cat 5e)
Video Format
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
DCI 4K: 24/25/30/50/60 fps
UHD 4K: 24/25/30/50/60 fps
1080p: 23.98/24/25/29.97/30/59.94/60 fps
1080i: 25/29.97/30 fps
720p: 50/59.94/60 fps
576p: 50 fps
PAL: 25 fps
480p: 59.94/60 fps
NTSC: 30 fps
PC Resolutions
HDMI: 2560 x 1600
HDMI: 2048 x 1536
HDMI: 1920 x 1200
HDMI: 1680 x 1050
HDMI: 1600 x 1200
HDMI: 1440 x 900
HDMI: 1400 x 1050
HDMI: 1280 x 1024
HDMI: 1200 x 800
HDMI: 1366 x 768
HDMI: 1360 x 768
HDMI: 1152 x 864
HDMI: 1024 x 768
HDMI: 800 x 600
HDMI: 640 x 480
Audio Format Analog: 192 kHz
DTS Compatibility DTS, DTS-HD Master Audio, DTS:X
Dolby Compatibility Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
Supported Cable Types Cat 5e/6/6a/7
Power
Power I/O 1x Mini-DIN 4-Pin (48 VDC at 0.8 A) Input
PoE Support PoE 802.3af
Power Consumption Power Supply: 100 to 240 VAC (18.67 W)
Environmental
Operating Temperature 32 to 82°F / 0 to 50°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 20 to 90%
General
Certifications CE, FCC, UL
Dimensions 5 x 4.3 x 1" / 127 x 109 x 26 mm
Weight 14.5 oz / 410 g
Packaging Info
Package Weight 2.5 lb
Box Dimensions (LxWxH) 13.8 x 8.1 x 2.9"
