Product Overview

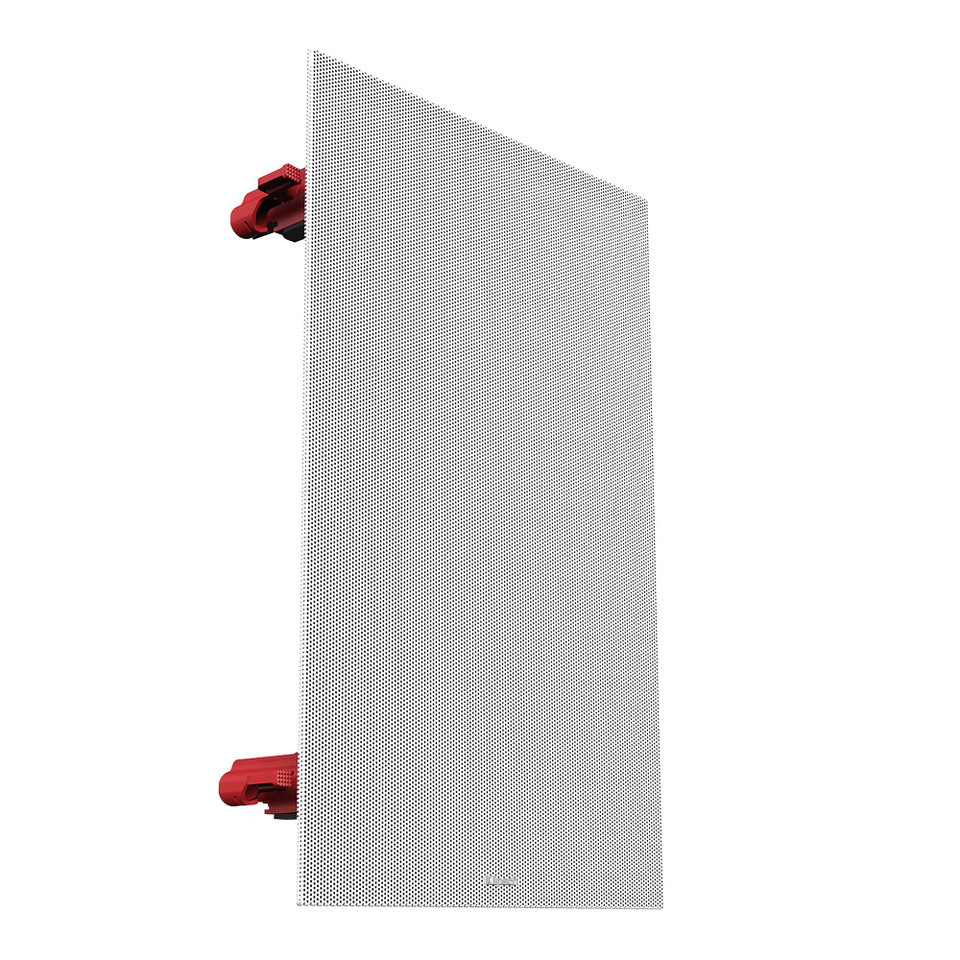

Offering the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160W features a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
Features:
- 6.5” Polypropylene woofer
- 1” Silk Dome tweeter
- Patented Sky Hook® Tool-Free Installation System
- Bezel-Free Magnetic Grille
SPECIFICATIONS
| Frequency Range | 77Hz - 20kHz +/- 3dB |
| High Frequency Driver | 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn |
| Low Frequency Driver | 6.5” (16.51cm) Polypropylene Woofer |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Coverage Angle | 100° |
| Power Handling | 50W RMS / 200W RMS |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.0” W x 14.1” H x 3.9” D (22.8cm H x 35.8cm W x 9.8cm D) |
| Mounting Depth | 3.78” (9.6cm) |
| Cutout Dimensions | 13” H X 8” W (33.0cm H X 20.3cm W) |
| Product Weight | 7.2lbs (3.25kg) |
| Included | Magnetic Grille |
| Installation Kit | IK-650-W II (Sold Separately) |
| Fire Rated Enclosure | ME-650-W (Sold Separately) |
| Built From | 2017 |
HORN-LOADED PERFORMANCE
Using the same Tractrix® horn technology and design principles
of our premium architectural and box speaker lines, the all new
Klipsch Designer series brings true Klipsch power and performance.
With a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated
to a round Tractrix® horn, the DS-160W brings dynamic, powerful,
detailed Klipsch sound to your distributed audio, home theater, or
2-channel system.
PATENT-PENDING SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM
The exclusive installation system engages the dog legs automatically
when the speaker is inserted into the cutout hole with a preset
clamping force, eliminating the possibility of overtorquing. This fast,
easy installation system reduces install time by up to 75%.
ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powercoated magnetic steel grille
eliminates the bezel for seamless, pristine integration into the living
space.
