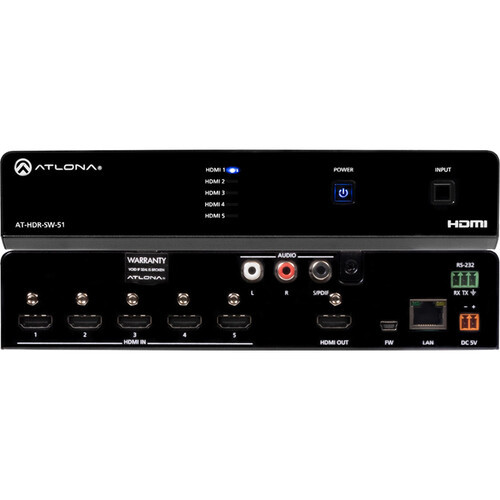

Atlona AT-HDR-SW-51 5x1 4K HDR HDMI Matrix Switcher

Atlona

(No reviews yet) Write a Review
$680.00
Atlona AT-HDR-SW-51 5x1 4K HDR HDMI Matrix Switcher
SKU:
AT-HDR-SW-51
UPC:
846352007331
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

Atlona HDR-SW-51 Overview

The 5x1 4K HDR HDMI Matrix Switcher from Atlona is a 5 x 1 HDMI switcher designed to facilitate HDR video content display. Suitable for residential and commercial applications, the unit's HDR10, HLG, and Dolby Vision compatibility enables you to view your HDR content in rich, full detail. It supports 4K, HD, and SD resolutions up to DCI 4K at 60 Hz with 4:4:4 sampling and HDMI data rates up to 18 Gb/s. Use this HDMI switcher to route any source to any output with HDCP 2.2 content protection, EDID management, and CEC display control.
Applications
  • Conference rooms and meeting rooms: the HDR-SW-51 is compact and ideal for under-table mounting. It conveniently provides automatic switching for simplified user operation, especially when laptops are brought into the system.
  • Localized video source switching: this switcher can be used to feed into a larger, multi-zone AV distribution platform, such as the Atlona OmniStream AV over IP system.
5 x 1 HDMI Matrix
  • Five HDMI inputs and one HDMI output
  • Delivers flexible matrix switching capability for meeting and presentation spaces
  • Selectable switching modes available with mirrored or matrixed outputs
  • Enables simple configuration and effortless user operation, tailored to the specific AV application
DCI / UHD 4K60 Capability
  • Compatible with DCI 4K/UHD 4K and HDR-capable sources and displays
  • Adheres to HDCP 2.2 content protection specification
  • Compatible with 4K HDR10, Dolby Vision, and HLG (Hybrid Log-Gamma)
Selectable 4K to 1080p Downscaling
  • Integrated video processing available for down-converting 4K/UHD at 60, 30, or 24 Hz to 1080p
  • Downscaling can be bypassed to allow pass-through up to 4K/60 4:4:4 and 4K HDR
  • Ideal for applications with 1080p displays, video conferencing codecs, and other HD sink devices
Automatic Input Selection
  • Selects active input when sources are connected or if there is a change in source power status
  • Enables simplified, automatic system operation without user intervention
Audio De-Embedding
  • De-embeds two-channel PCM audio from the selected HDMI source to S/PDIF and balanced, analog audio outputs
  • De-embeds 5.1 channel bitstream audio from the selected HDMI source to S/PDIF audio output
  • Provides direct interfacing into an external audio system
EDID Management
  • Manages EDID communications with the source through a display’s EDID or internally stored EDID
  • Ensures desired audio formats and video resolutions are provided to the AV system
HDCP 2.2 Management
  • Automatically reports HDCP compliance status to the source based on the sink device
  • HDCP compliance can also be disengaged through Velocity Device Manager or a control system
  • Allows non-protected material from computers to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
  • Displays a green splash screen as visual confirmation that protected content is being blocked from transmission to a non-compliant display
Intuitive GUI-Based Configuration
  • Offers menu-based configuration of device settings including network access, input switching, I/O routing for video and audio, signal processing, display control, HDCP and EDID management, and more
  • Allows fast configuration of internal product settings and troubleshooting from a mobile device or computer in the field
TCP/IP, RS-232, and IR Control
  • Flexible control options for compatibility with the Atlona Velocity control system as well as other third-party control systems
  • Reduces integration time and costs
Velocity Device Manager
  • Centralized, network-based configuration and management of Atlona IP-controllable products and systems
  • Manage configuration and firmware updates for AV devices spanning a facility, building, enterprise, or residence
  • Available as a part of Velocity control systems or as a free virtual machine software download
Field-Updatable Firmware
Device can be updated in the field via the web GUI or Velocity Device Manager
1 RU Rack Mountable
  • Includes surface mounting hardware for easy installation into confined spaces below tables and in furniture
  • Installs easily in equipment racks with included rack-mounting hardware

Atlona HDR-SW-51Specs

Switching Type
IR Remote, Pushbutton, Software
Processing Resolution
DCI 4K at 60
Color Processing
8-Bit 4:4:4 YUV
8-Bit 4:2:2 YUV
8-Bit 4:2:0 YUV
8-Bit 4:4:4 RGB
8-Bit 4:2:2 RGB
8-Bit 4:2:0 RGB
10-Bit 4:4:4 YUV
10-Bit 4:2:2 YUV
10-Bit 4:2:0 YUV
10-Bit 4:4:4 RGB
10-Bit 4:2:2 RGB
10-Bit 4:2:0 RGB
12-Bit 4:4:4 YUV
12-Bit 4:2:2 YUV
12-Bit 4:2:0 YUV
12-Bit 4:4:4 RGB
12-Bit 4:2:2 RGB
12-Bit 4:2:0 RGB
Audio Processing
192 kHz / 24-Bit
176.4 kHz / 24-Bit
96 kHz / 24-Bit
88.2 kHz / 24-Bit
48 kHz / 24-Bit
44.1 kHz / 24-Bit
Input
Video Inputs
5x HDMI Female
Input Video Format
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
DCI 4K at 24/25/30/50/60 fps
UHD 4K at 24/25/30/50/60 fps
1080p at 23.98/24/25/29.97/30/50/60 fps
1080i at 50/60 fps
720p at 30/50/60 fps
576p at 50 fps
480p at 60 fps
576i / 625 lines at 25/50 fps
480i / 525 lines at 60 fps
UXGA (1600 x 1200) at 60 fps
HD+ (1600 x 900) at 60 fps
WUXGA+ (1680 x 1050) at 60 fps
WXGA+ (1440 x 900) at 60 fps
SXGA+ (1400 x 1050) at 60 fps
FWXGA (1366 x 768) at 60 fps
1360 x 768 at 60 fps
SXVGA (1280 x 1024) at 60 fps
WXGA (1280 x 800) at 60 fps
1280 x 768 at 60 fps
XGA (1024 x 768) at 60 fps
SVGA (800 x 600) at 60 fps
VGA (640 x 480) at 60 fps
Embedded Audio Input
HDMI
Output
Video Outputs
1x HDMI Female
Output Video Format
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV)
DCI 4K at 24/25/30/50/60 fps
UHD 4K at 24/25/30/50/60 fps
1080p at 23.98/24/25/29.97/30/50/60 fps
1080i at 50/60 fps
720p at 30/50/60 fps
576p at 50 fps
576i / 625 lines at 25/50 fps
480p at 60 fps
480i / 525 lines at 60 fps
WUXGA (1920 x 1200)
WUXGA+ (1680 x 1050)
UXGA (1600 x 1200)
HD+ (1600 x 900)
1440 x 900
SXGA+ (1400 x 1050)
FWXGA (1366 x 768)
SXGA (1280 x 1024)
WXGA (1280 x 800)
1280 x 768
Audio Outputs
1x 2RCA Stereo Analog Female
1x RCA Stereo S/PDIF Female
Output Audio Format
LPCM (Linear Pulse-Code Modulation)
Embedded Audio Output
HDMI
Connectivity
Other I/O
1x Mini-USB
1x Block 3-Pin RS-232 Input/Output
1x RJ45 LAN
HDCP Support
Yes, Version 2.2
HDR Support
Yes
Display
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1x Block 2-Pin (5 VDC ) Input
Power Consumption
Device: 100 to 240 VAC (13.53 W)
General
Operating Conditions
32 to 122°F / 0 to 50°C at 20 to 60% Humidity
Storage Conditions
-40 to 140°F / -40 to 60°C
Certifications
CE, FCC, UL, RoHS
Rack Form Factor
1 RU
Dimensions
8.19 x 4.41 x 1.34" / 20.8 x 11.2 x 3.4 cm
Weight
1.44 lb / 0.65 kg
Packaging Info
Package Weight
5.3 lb
Box Dimensions (LxWxH)
17.3 x 12 x 4"
