Product Overview
Using the technology of both a PTZ cam and A/V interface receiver, the Vaddio RoboFLIP 30 HDBT OneLINK Bridge System is ideal for capturing events or videoconferencing applications. The RoboFLIP HDBT camera fully rotates into its enclosure when in standby mode which allows full assurance that video feeds are not active. A single RJ45 port provides PoE++, video control, and network connection to the camera and the included bridge A/V interface simplifies installation by extending power, video, and control over a single cable while offering integration with external audio equipment, video displays, and USB conferencing setups.

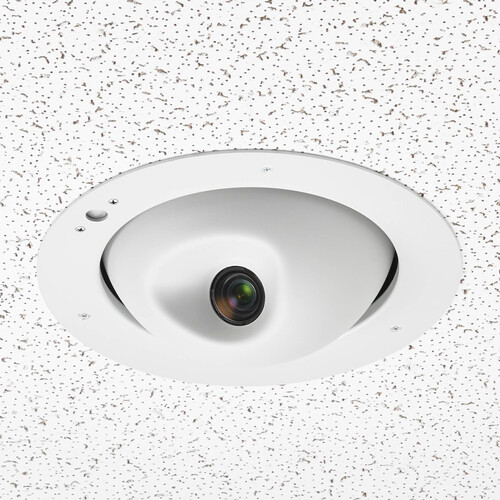

Minimalistic design with a "flipping" function and high-definition video performance make the Vaddio RoboFLIP 30 HDBT Camera ideal for capturing events or videoconferencing applications in which knowledge of video status is crucial. This ceiling mount, recessed camera fully rotates into its enclosure when in standby mode, which allows full assurance that video feeds are not active. Industry-leading Tri-Synchronous Motion technology allows the camera to silently rotate for ultra-smooth pan, tilt, and zoom up to 30x.
A single RJ45 port provides PoE++, video control, and network connection to the camera. Control for the camera can be achieved through Telnet, RS-232, or the included IR remote. Users can adjust 16 stored PTZ presets, color, white balance, focus, and access system diagnostic logs, streaming settings, and more through a modern web-based interface.
The OneLINK Bridge A/V Interface Receiver from Vaddio connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. This OneLINK Bridge simplifies installation by extending power, video, and control to your Vaddio HDBaseT camera over a single Cat5e cable up to 328'.
Specifications
Key Specs
Image Sensor 1/2.5"-Type CMOS
Sensor Resolution Actual: 8.57 Megapixel,Effective: 8.51 Megapixel
Shutter Type Electronic Rolling Shutter
Optical Zoom Ratio 20x
Max Digital Zoom 30x
External Recording Modes
RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output NTSC
IP Streaming H.264, RTMP, RTSP ,1920 x 1080 at 59.94p
Supported Control Protocols IR ,RS-232
PoE Support PoE++ 802.3bt
Imaging
Image Sensor 1/2.5"-Type CMOS
Sensor Resolution Actual: 8.57 Megapixel ,Effective: 8.51 Megapixel
Built-In ND Filter No
Focus Control Autofocus ,Manual Focus
Exposure Control
Shutter Type Electronic Rolling Shutter
Gain 0 to 33 dB
Precise Scan Rate Control No
Signal-to-Noise Ratio 50 dB
Minimum Illumination 1.6 Lux
Flip / Mirror Support Image Flip
White Balance Presets: ATW, Auto, Indoors, Manual, One Push, Outdoors
Lens
Focal Length 4.4 to 88.4mm
Optical Zoom Ratio 20x
Max Digital Zoom 30x
Field of View Horizontal: 70.2 to 3.4°
Maximum Aperture f/2 to 3.8
Minimum Focus Distance
Wide: 3.1" / 8.0 cm
Telephoto: 31.5" / 80.0 cm
Video Capture
External Recording Modes
RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 50/59.94/60.00 fps
Broadcast Output NTSC
IP Streaming
H.264, RTMP, RTSP
1920 x 1080 at 59.94p
Control
Presets 16
Move Speed
Pan: 0.4 to 120°/sec
Tilt: 0.4 to 120°/sec
Movement Range
Pan: 320° (-160 to 160°)
Tilt: 120° (-30 to 90°)
Tally Light No
Supported Control Protocols
IR
RS-232
Max Cable Length
230' / 70.1 m (Cat 5e)
328' / 100 m (Cat 6)
Interface
Video I/O 1x RJ45 (HDBaseT) Output
Other I/O 1x RJ45 Control Input (Shared with Power Input, Video Output)
Power
PoE Support PoE++ 802.3bt
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 20 to 80% ()
Storage Humidity 20 to 80% (Non-Condensing)
General
Certifications CE, FCC
Dimensions (W x H x D) 16 x 9.3 x 16" / 40.6 x 23.6 x 40.6 cm
Weight 15 lb / 6.8 kg
Packaging Info
Package Weight 3.43 lb
Box Dimensions (LxWxH) 12.3 x 9.3 x 3.2"
