Product Overview
Christie D13HD-HS Overview

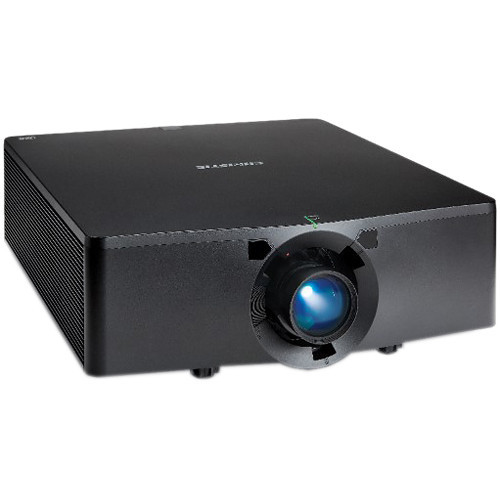

The D13HD-HS 12,000-Lumen 1DLP HD Projector from Christie is a laser phosphor projector boasting 12,000 lumens in HD resolution. The Christie BoldColor technology offers bold and realistic images at high brightness levels, resulting in richer, better visual content that meets the Rec. 709 standard for high definition color reproduction.
Key Features
- Quick, easy warping and blending
- Stable and consistent 24/7 performance
- Easy to handle and install with a lightweight, compact design
- Loop-through capability
Christie D13HD-HS Specs
Image Display
| Display System | 1-Chip 0.95" DMD DLP |
| Native Chip Resolution | 1920 x 1080 |
| Supported Resolutions | Full HD 1080p - 1920 x 1080 |
| Maximum Brightness | 12,000 Lumens |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 7500:1 |
| Color Wheel | 4-Segment (R/G/B/Y) |
| Scan | Horizontal: 15 to 91 kHz Vertical: 24 to 85 Hz |
| Optical Zoom | None |
Features
| Keystone Correction | None |
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | None |
| Built-In Speaker | None |
| Projection Tilt Option | No |

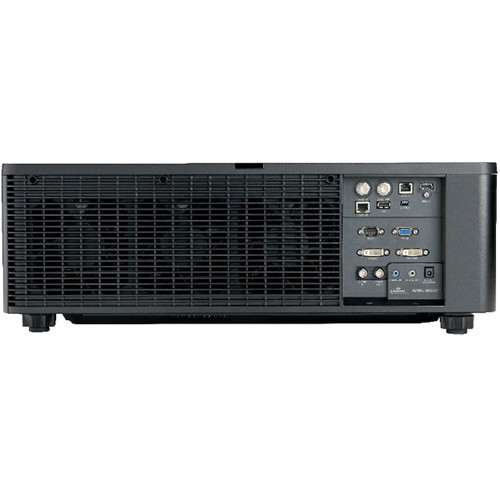

Input/Output Connectors
| Inputs/Outputs | 1 x 3G-SDI (BNC) Video Input 1 x 3G-SDI (BNC) Video Output 1 x HDBaseT (RJ45) Control 2 x HDMI Type-A Audio, Video Input 1 x Mini-USB Data 1 x USB Type-A Data 1 x VGA (DE-15/DB-15) Video Input 1 x DVI-D Video Output 1 x 1/8" / 3.5 mm Mini Remote Input 1 x 1/8" / 3.5 mm Mini Remote Output 1 x VESA 3D Sync (Proprietary) Video Output 1 x VESA 3D Sync (Proprietary) Video Input 1 x DVI-D Video Input 1 x RS-232 (DE-9/DB-9) Control 1 x RJ45 LAN |
Hardware
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Medium Brightness: 39 dB Low Brightness: 37 dB |
| Security | None |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Heat Dissipation | 4435 BTU 3580 BTU 2390 BTU |
| Power Consumption | Medium Brightness: 1220 W Low Brightness: 1000 W |
| Dimensions (W x H x D) | 26.6 x 23.4 x 7.9" / 67.6 x 59.4 x 20.1 cm |
| Weight | 93.7 lb / 42.5 kg without lens |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
