Product Overview

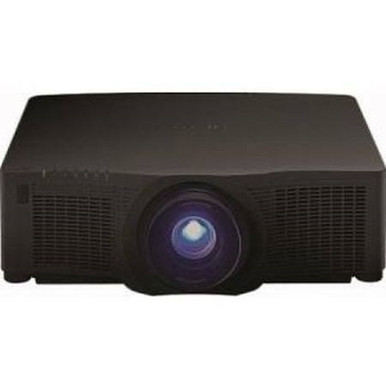

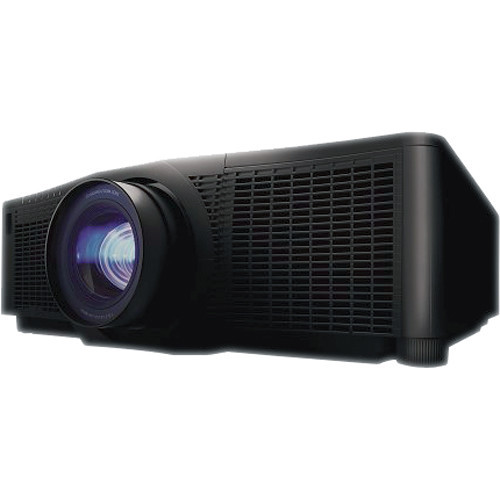

Christie DHD951-Q Overview

The high performance black DHD951-Q 1DLP Projector from Christie offers edge blending, geometric correction, and a portrait mode. It features 3G-SDI and dual HDMI inputs, a status monitor display, and motorized zoom, focus, and lens shift with memory. The native 1920 x 1080 HD resolution and 2500:1 contrast ratio deliver a superior image.

3G-SDI and dual HDMI inputs

eClarity and HDCR

Built-in color wheel

HDBaseT control and networking support

Portrait mode capable

Edge blending

Geometric correction

Status monitor display

Motorized zoom, focus, and lens shift with memory

Presentation does not require PC

Christie DHD951-Q Specs

Image Display

Display System	1-Chip 0.65" DMD DLP
Native Chip Resolution	1920 x 1080 (Full HD)
Maximum Brightness	8500 Lumens
Uniformity	<90%
Offset	135% + vertical 50% - vertical 22% ± horizontal
Contrast Ratio	2500:1
Optical Zoom	None

Features

Supported HDR Input Formats	None
Multi-Input Support (PIP/PBP)	None
Projection Tilt Option	No

Input/Output Connectors

Inputs/Outputs

1 x VGA (DE-15/DB-15) Video Input
1 x VGA (DE-15/DB-15) Video Output
2 x HDMI Type-A Audio, Video
1 x DVI-D Video
1 x HDBaseT (RJ45) Control
1 x USB Type-A Data
1 x RJ45 LAN
1 x SDI (BNC) Video
1 x RS-232 (DE-9/DB-9) Control
1 x 1/8" / 3.5 mm Mini Remote Input
1 x 1/8" / 3.5 mm Mini Remote Output
1 x BNC Video

Hardware

Wireless LAN / Wi-Fi

None

General

Light Source	Lamp (2 x P-VIP)
Lamp Power	370 W
Expected Lamp Life	Medium Brightness: 2000 Hours Low Brightness: 4000 Hours
Fan Noise	Medium Brightness: 36 dB Low Brightness: 29 dB
AC Input Power	110 to 240 VAC, 50 / 60 Hz
Heat Dissipation	3618 BTU (AC 110 to 120V) 3379 BTU (AC 220 to 240V)
Power Consumption	Medium Brightness: 1060 W Medium Brightness: 990 W
Dimensions (W x H x D)	18.2 x 21.1 x 6.9" / 46.2 x 53.6 x 17.5 cm
Weight	37.5 lb / 17.0 kg
