Product Overview
Christie DHD851-Q Overview

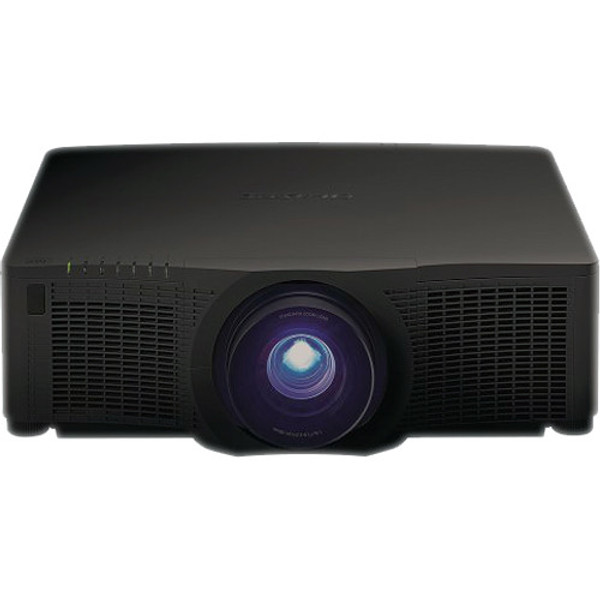

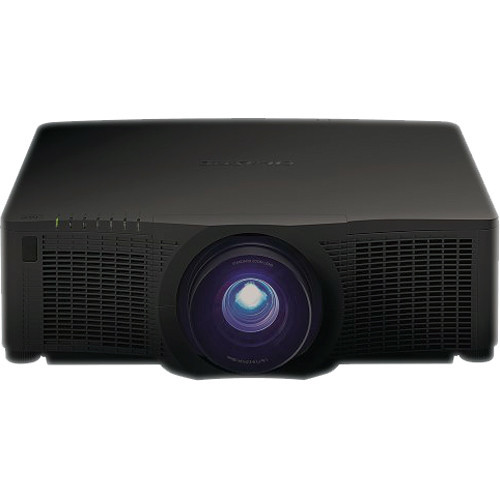

The black DHD851-Q 1DLP Projector from Christie offers edge blending, geometric correction, and a portrait mode. It features dual HDMI inputs, a status monitor display, and motorized zoom, focus, and lens shift with memory. The native HD resolution of 1920 x 1080 combines with a contrast ratio of 2500:1 for high performance and superior image delivery.
Two HDMI inputs
eClarity and HDCR
Built-in color wheel
HDBaseT control and networking capability through RJ-45
Portrait mode capable
Edge blending
Geometric correction
Status monitor display
Motorized zoom, focus, and lens shift with memory
Presentation does not require PC
Christie DHD851-Q Specs
Image Display
| Display System | 1-Chip 0.65" DMD DLP |
| Native Chip Resolution | 1920 x 1080 (Full HD) |
| Maximum Brightness | 7500 Lumens |
| Uniformity | <90% |
| Offset | 135% + -50% vertical 50% - vertical 22% ± horizontal |
| Contrast Ratio | 2500:1 |
Features
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | None |
| Projection Tilt Option | No |
Input/Output Connectors
| Inputs/Outputs | 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 2 x HDMI Type-A Audio, Video 1 x DVI-D Video 1 x HDBaseT (RJ45) Control 1 x USB Type-A Data 1 x RJ45 LAN 1 x SDI (BNC) Video 1 x RS-232 (DE-9/DB-9) Control 1 x 1/8" / 3.5 mm Mini Remote Input 1 x 1/8" / 3.5 mm Mini Remote Output 1 x BNC Video |
Hardware
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Lamp (2 x UHP) |
| Lamp Power | 350 W |
| Expected Lamp Life | Medium Brightness: 2000 Hours Low Brightness: 4000 Hours |
| Fan Noise | Medium Brightness: 36 dB Low Brightness: 29 dB |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Heat Dissipation | 3618 BTU (AC 110 to 120V) 3379 BTU (AC 220 to 240V) |
| Power Consumption | Medium Brightness: 860 W Medium Brightness: 810 W |
| Dimensions (W x H x D) | 18.2 x 21.1 x 6.9" / 46.2 x 53.6 x 17.5 cm |
| Weight | 37.5 lb / 17.0 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
