Product Overview
Christie WX10KM Overview

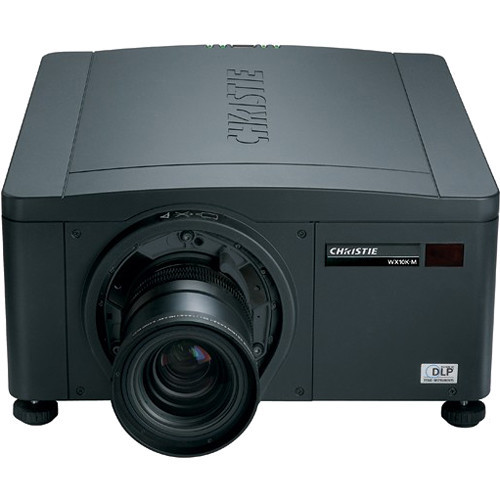

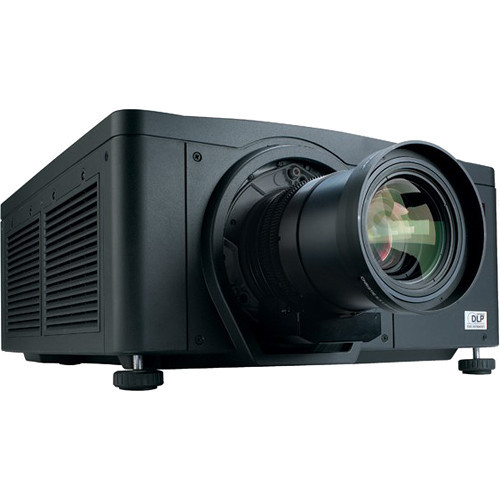

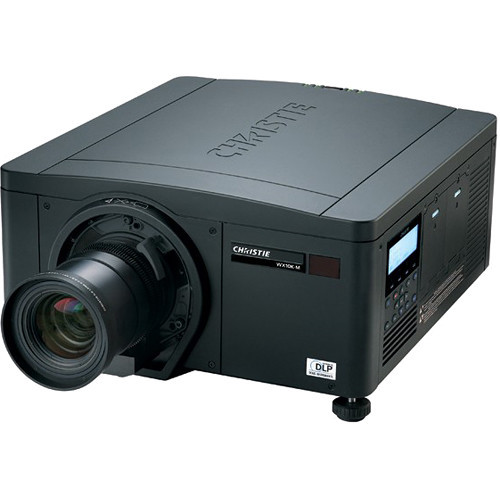

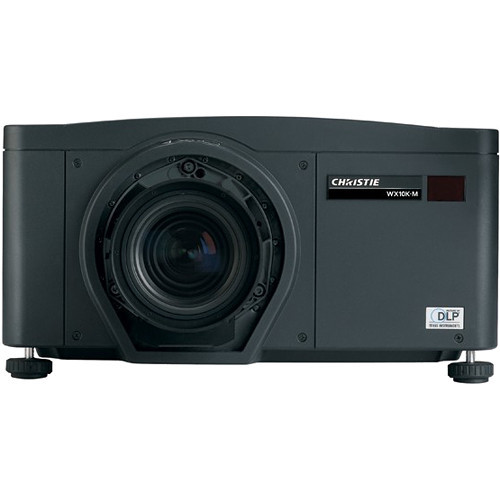

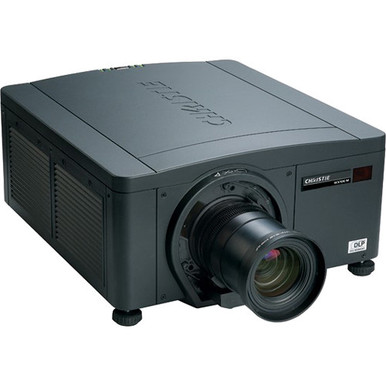

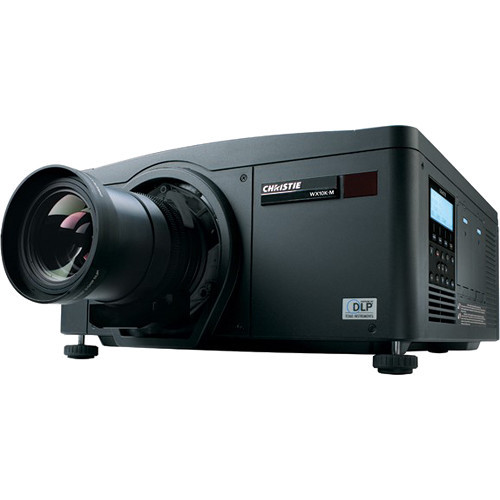

The WX10K-M WXGA DLP Projector from Christie features a dual lamp design, allowing you to adjust the number of lamps and power level used according to your needs. It offers a WXGA resolution of 1366 x 768, and a brightness level of 10,450 center lumens. There is a variable contrast ratio of 2500 to 10,000:1 using dynamic iris, and an ANSI contrast ratio of 650:1, for crisp and detailed images. A motorized horizontal and vertical lens offset, tilt adjustment, and built-in light shutter enable you to conveniently manipulate the projected image. The projector will automatically shut off when it is not receiving a signal, and you can manually control the fan speed to cool down the system.
Variable contrast ratio of 2500 to 10,000:1, using dynamic iris
650:1 ANSI contrast ratio for crisp, detailed images
Small chassis
Dual mercury lamps
Comprehensive color adjustment
Embedded Christie Twist image warping and edge-blending
Dust-sealed engine, filter-free design
Intelligent Lens System (ILS) for zoom, focus, horizontal and vertical offset
Multi-windowing and screen processing (up to 3x3 array)
Built-in portrait display capabilities
Multi-standard video decoder
Horizontal and vertical scaling for all inputs
Scheimpflug (tilt) adjustment
Built-in light shutter
Tool-free lens insertion system
LiteLOC technology
Digital keystone correction
99-Channel memory
Black level blending
Auto setup
Motorized yellow notch filter
Christie WX10KM Specs
Image Display
| Display System | 3-Chip 0.85" DMD DLP |
| Native Chip Resolution | 1366 x 768 (WXGA) |
| Supported Resolutions | Minimum: VGA - 640 x 480 Maximum: QXGA - 2048 x 1536 |
| Maximum Brightness | 10,450 Lumens 5225 Lumens |
| Uniformity | 90% |
| Offset | 150% vertical 76% horizontal |
| Contrast Ratio | 650:1 |
| Dynamic Contrast Ratio | 10,000:1 |
| Scan | Horizontal: 15 to 120 kHz Vertical: 23.97 to 150 Hz |
| Optical Zoom | None |
Features
| Keystone Correction | None |
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | None |
| Projection Tilt Option | No |
Input/Output Connectors
| Inputs/Outputs | 1 x DVI-D Video 1 x RS-232 (DE-9/DB-9) Control Input/Output 1 x RS-232 (DE-9/DB-9) Control 1 x RS-422 (DE-9/DB-9) Control 1 x Ethernet (RJ45) LAN 1 x USB Type-A Data |
Hardware
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Lamp (2 x OSRAM) |
| Lamp Power | 350 W |
| Expected Lamp Life | Medium Brightness: 1500 Hours Low Brightness: 2000 Hours |
| Security | None |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| Heat Dissipation | 4508 BTU |
| Power Consumption | Full Brightness: 1320 W |
| Dimensions (W x H x D) | 22.1 x 19.7 x 10.2" / 56.1 x 50.0 x 25.9 cm |
| Weight | 55.00 lb / 24.95 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
