Product Overview
Christie DWU630 Overview

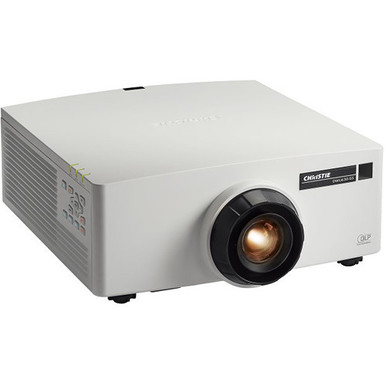

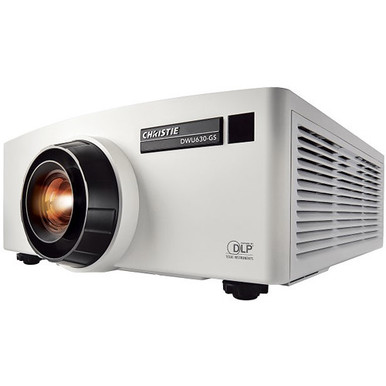

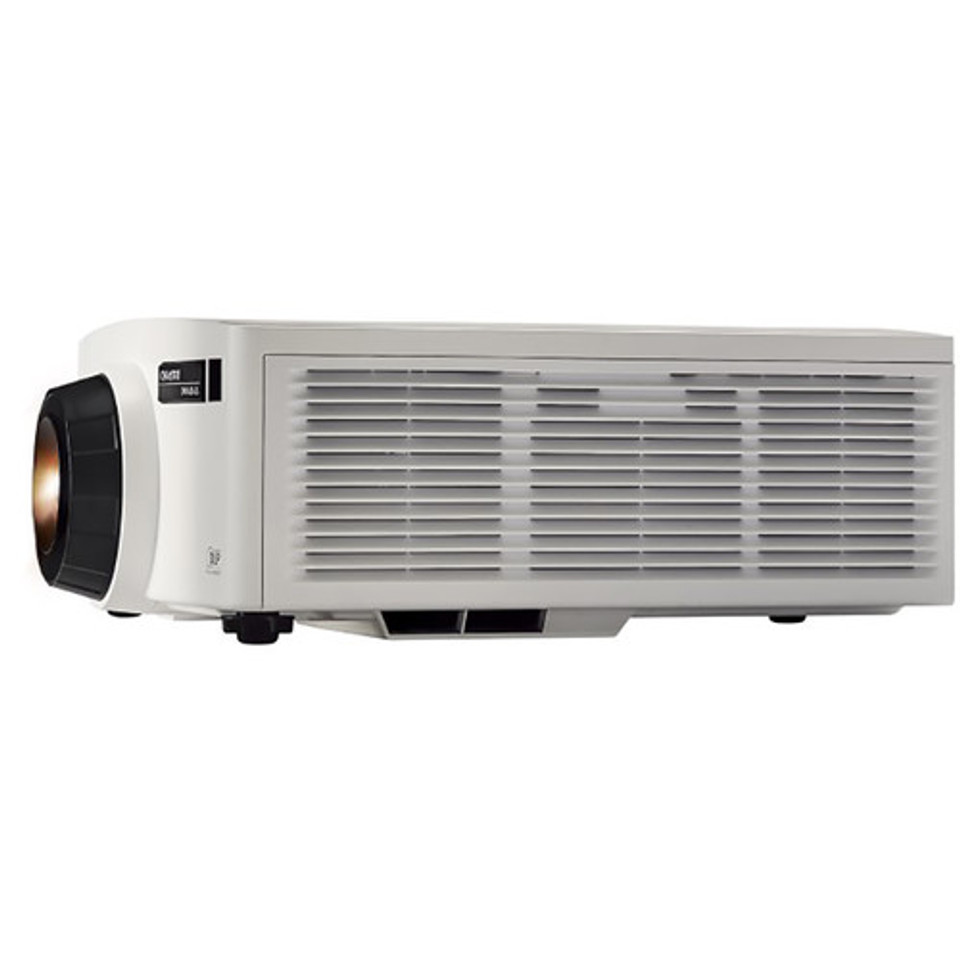

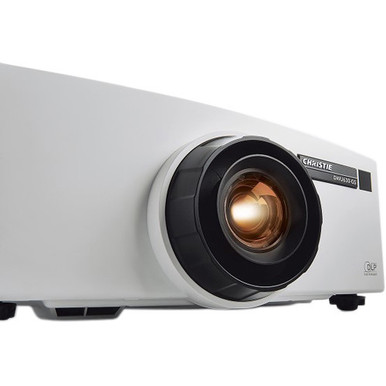

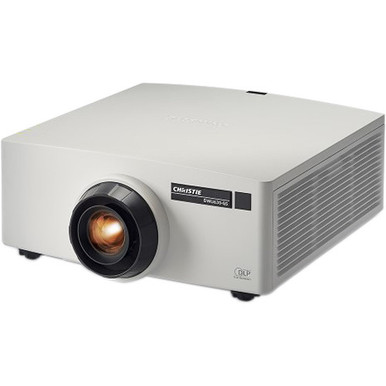

The white DWU630-GS 1DLP Laser Phosphor Projector from Christie features laser phosphor diodes that produce 6750 ISO lumens of light output and provide up to 20,000 hours of illumination life. The projector offers a native resolution of 1920 x 1200 and a 1200:1 contrast ratio. With the Christie RealBlack technology, the projector can produce a 4,000,000:1 full on/off contrast ratio.
Performance
- 1DLP technology for improved image quality
- Phosphor laser diodes for 6750 ISO lumens of light output
- Christie’s RealBlack technology produces 4,000,000:1 full on/off contrast ratio
- 162 MHz pixel clock
- Supports HDTV input formats—VGA through to WUXGA (1920 x 1200)
- Horizontal and vertical scaling while maintaining aspect ratio across all inputs
- 3.5mm stereo female remote connector for serial communications and power
- RJ45 connector to control over wired network connection
- Compatible with all GS Series lenses (lens available separately)
- Noise rating of 36 dBA allows for quiet operation
- Compact and light
- 24/7 operation
3D Inputs
- HDMI 1.4, HDBaseT—frame packed, top/bottom, and side by side, up to 120 Hz output
- Does not support frame sequential 3D inputs
- 3D Sync out (BNC) connector for genlocking projectors or controlling emitter or polarizer
Control & Networking
- Control via HDBaseT, RS232 in, and IR remote
- Ethernet (10/100) RJ45 connection
- Built-in backlit keypad
- Wired remote control (3.5mm stereo)
- Loop out available for daisy chaining
Lens Mount
- Boresight adjustable mount
- Motorized horizontal (±15%) and vertical (±50%) lens offset
- Motorized zoom and focus adjustment
Regulatory
- UL/CSA/IEC 60950-1
- FCC Class A, CE, FDA, CCC, KC, PSE, CU, SABS, BIS, VCCI, RCM, Ukr, TER, SASO
- RoHS, REACH, and WEEE
Christie DWU630 Specs
Image Display
| Display System | 1-Chip 0.65" DMD DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Supported Resolutions | Minimum: VGA - 640 x 640 Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | White: 6000 Lumens Color: 6000 Lumens |
| Aspect Ratio | Native: 16:10 |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 6000:1 |
| Color Wheel | 4-Segment (R/G/B/Y) |
| Scan | Horizontal: 15 to 9 kHz Vertical: 24 to 120 Hz |
Features
| Keystone Correction | None |
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | None |
| Built-In Speaker | None |
| Projection Tilt Option | No |
Input/Output Connectors
| Inputs/Outputs | 1 x HDBaseT (RJ45) Control 2 x HDMI Type-A Video 1 x DVI-D Video 1 x VGA (DE-15/DB-15) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x VESA 3D Sync (BNC) Video Output 1 x 1/8" / 3.5 mm Mini Remote Input 1 x RJ45 LAN 1 x RS-232 (DE-9/DB-9) Control |
Hardware
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours |
| Fan Noise | Medium Brightness: 36 dB |
| Security | None |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | Medium Brightness: 650 W |
| Dimensions (W x H x D) | 19.9 x 17.9 x 7.6" / 50.5 x 45.5 x 19.3 cm |
| Weight | 39.9 lb / 18.10 kg |
Packaging Info
| Package Weight | 48.8 lb |
| Box Dimensions (LxWxH) | 24.5 x 23.5 x 13.5" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
