Product Overview
Christie DWU850 Overview

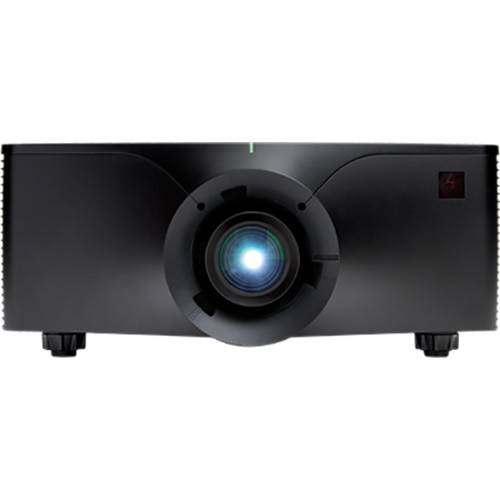

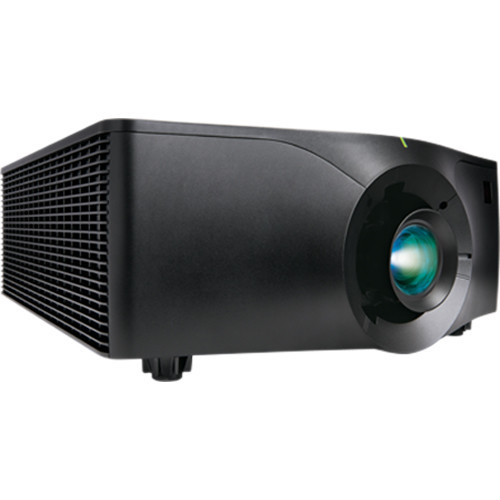

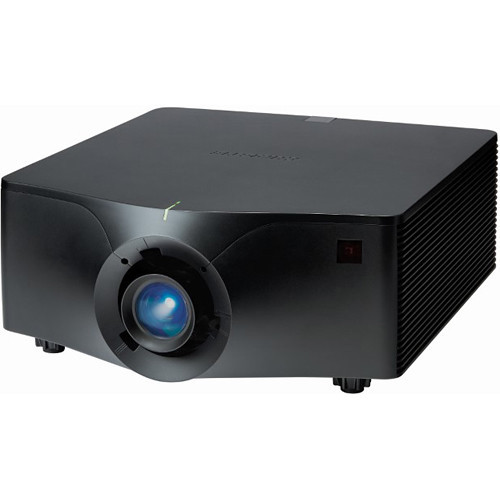

The black GS Series DWU850 WUXGA 1DLP Projector from Christie delivers 7500 lumens of brightness with a 6000:1 dynamic contrast ratio. It eliminates the need for lamp and filter replacements, providing 20,000 hours of operation. Wireless connectivity, a small footprint, low-weight, quiet operation, and a full suite of lenses makes the projector suitable for boardrooms, conference rooms, education, houses of worship, and other small and medium venues. Furthermore, the projector includes Christie BoldColor Technology for the most life-like images and natural color reproduction possible with laser phosphor illumination, without sacrificing brightness.
WUXGA 1920 x 1200 native resolution
Laser phosphor illumination combined with Christie BoldColor Technology for lifelike images, color reproduction, and reliability
20,000 hours of operation
Built-in color matching for a more uniform image in a multiple projector configuration
Built-in advanced (grid-based) warping and blending for complex applications.
24/7 operation
Standard HDBaseT input
Tool-free lens insertion system (lens sold separately)
Boresight adjustable
Motorized horizontal and vertical lens offset
Motorized zoom and focus adjustment
Christie DWU850 Specs
Image Display
| Display System | 1-Chip 0.67" DMD DLP |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Maximum Brightness | 8400 Lumens |
| Offset | 100% ± vertical 30% ± horizontal |
| Contrast Ratio | 250:1 |
| Dynamic Contrast Ratio | 6000:1 |
| Scan | Horizontal: 15 to 91 kHz Vertical: 24 to 85 kHz |
| Optical Zoom | None |
Features
| Keystone Correction | None |
| Supported HDR Input Formats | None |
| Multi-Input Support (PIP/PBP) | None |
| Built-In Speaker | None |
| Projection Tilt Option | No |
Input/Output Connectors

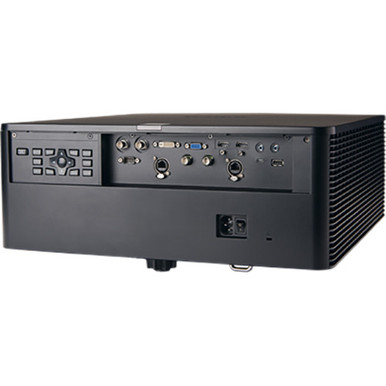

| Inputs/Outputs | 1 x 3G-SDI (BNC) Video Input 1 x 3G-SDI (BNC) Video Output 1 x DVI-D Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x HDMI Type-A Video Output 2 x HDMI Type-A Video Input 1 x 1/8" / 3.5 mm Mini Remote Input 1 x 1/8" / 3.5 mm Mini Remote Output 1 x USB Type-A Data 1 x Mini-USB Data 1 x Ethernet (RJ45) LAN 1 x VESA 3D Sync (BNC) Video Input 1 x VESA 3D Sync (BNC) Video Output 1 x HDBaseT (RJ45) Control 1 x RS-232 (DE-9/DB-9) Control |
Hardware
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Medium Brightness: 35 dB Low Brightness: 32 dB |
| Security | None |
| Heat Dissipation | 2796 BTU 2900 BTU |
| Power Consumption | Medium Brightness: 850 W Medium Brightness: 820 W |
| Dimensions (W x H x D) | 18.9 x 7.0 x 20.0" / 480.1 x 177.8 x 508.0 mm |
| Weight | 50.00 lb / 22.68 kg |
Packaging Info
| Package Weight | 68.15 lb |
| Box Dimensions (LxWxH) | 29.5 x 23.5 x 14.5" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
