Product Overview

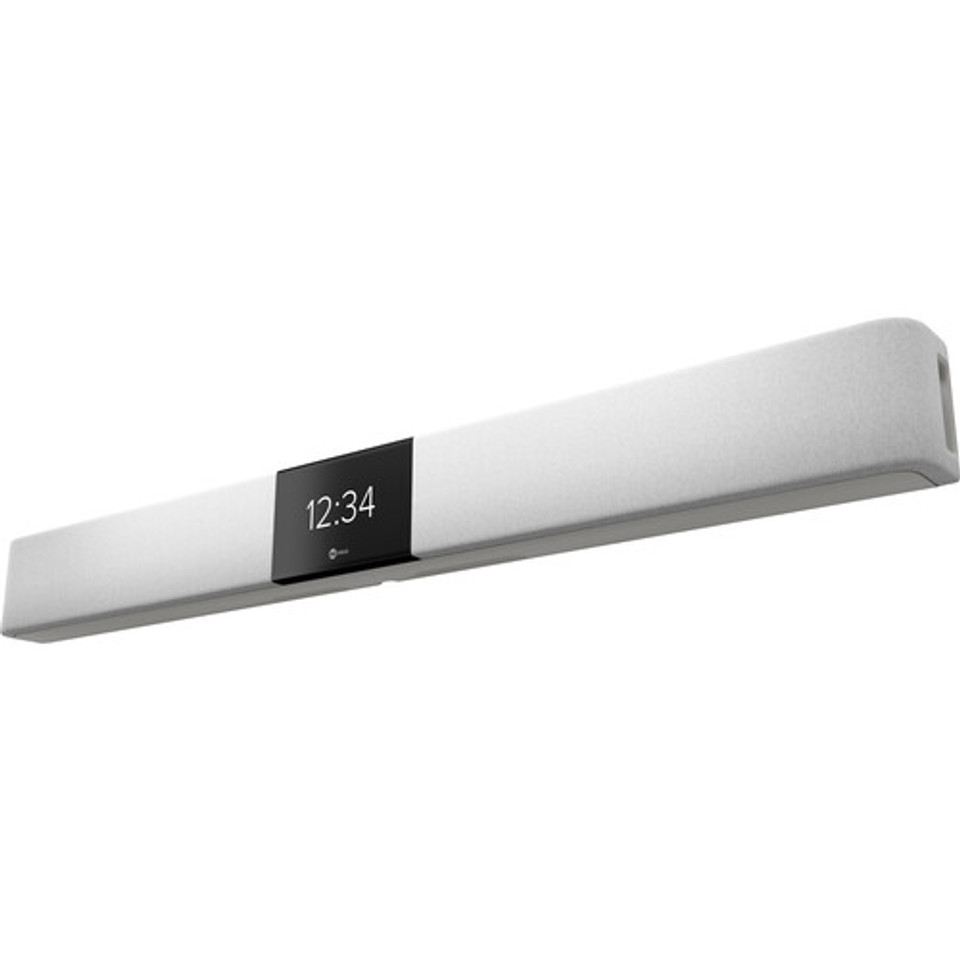

With refined aesthetics and 4,096 virtual microphones providing true full-room coverage, the HDL200 system is purpose-built for any small room - from huddle rooms to meeting and flex spaces - up to 18' x 18' (5.5 x 5.5 m). The built-in, configurable LCD gives you helpful information. On first-time startup you'll know when the system is finished autocalibrating. During normal operation you'll see call status and the time of day. People can be heard anywhere in the room, making it easy to stay distanced without compromising on sound quality. The HDL200 includes a free Nureva PRO two-year license.
Features

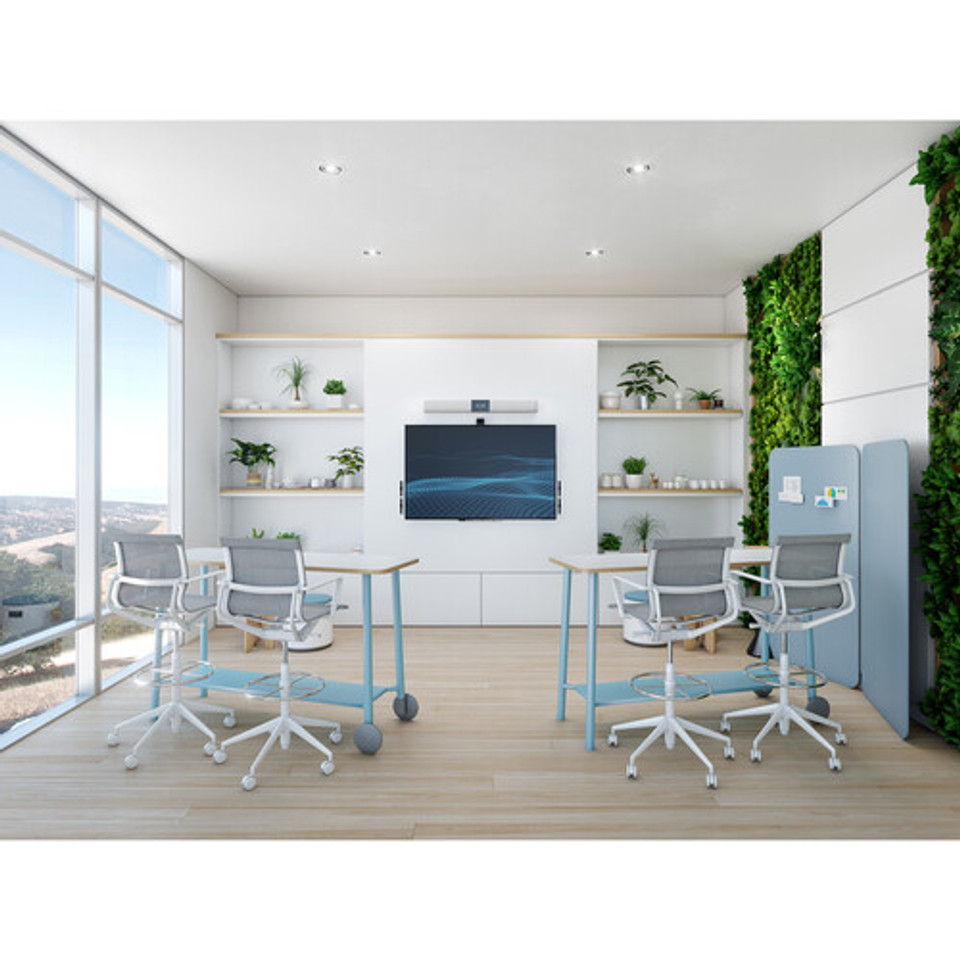

• Mounted on a mobile stand with a camera and display converts any space into a hybrid meeting or instructional space
• Integrated full-color display shows time, call status, volume, mute on/off, etc.
• Intelligent Sound Targeting stops virtual microphones from picking up persistent unwanted sounds like HVAC so remote callers get a better listening experience
• Position-based gain control applies gain separately to each sound in a space, resulting in a natural listening experience
• Simultaneous pickup processes all virtual mics simultaneously so conversations sound natural even if two people speak
at the same time
• Integrated processing means no separate DSP is required as all processing is integrated into the device
GENERAL
Powerful system processors (15,000 MIPS)
Continuous autocalibration
Acoustic echo cancellation
Position-based gain control
Intelligent sound targeting
Plug and play, no software or drivers required
Integrated full-color display
Compatible with leading UC&C platforms
MICROPHONES
Number 10
Type Omnidirectional
MEMS microphones
Frequency response 100Hz – 5 kHz
Total harmonic distortion (THD) at 94dBSPL 0.25% (typical)
SPEAKERS
Number Power rated capable
20W x2
Type Type 3.25" high-fidelity
full range
Acoustic output (hardware capable) 91 dB-SPL @ 1 m
Frequency response 125-20,000Hz
Amplifier class D
CONNECTIONS
Interface to computer Single USB 2.0, type B
Power Input jack for power
supply
OPERATING
Room size Up to 18' x 18' (5.5 x 5.5 m)
Operating systems Windows® 7, Windows 8,
Windows 10, Mac® OS X® 10.14
and 10.15 (Mojave and Catalina)
System setup Plug and play
SYSTEM INCLUDES
Integrated microphone and speaker bar
Wall mounting bracket
Power supply with country-specific power cable 6' (2.5 m), black
USB type A-B cable, 10' (3 m) VW-1 rated, black
Infrared remote
Cable routing channel
AAA batteries x2
Documentation kit
POWER
Power rating Universal switching
100-240V AC, 50-60Hz
Power consumption <25W
ENVIRONMENTAL
System temperature 0° C to 40° C (32° F to 104° F) operating temperature,
-20° C to 70° C (-4° F to 158° F) storage temperature,
humidity 5–90% (noncondensing)
WEIGHTS
Integrated microphone and speaker bar 10.0 lb. (4.5 kg)
Shipping 17.0 lb. (7.7 kg)
DIMENSIONS
Integrated microphone and speaker bar Width: 46.4" (117.9 cm)
Height: 4.8" (12.2 cm)
Depth: 3.6" (9.1 cm)
Shipping Width: 48" (121.9 cm)
Height: 10" (25.4 cm)
Depth: 5.6" (14.2 cm)
CERTIFICATIONS
Electromagnetic compatibility FCC Part 15, Class A ICES-003, Class
A, CISPR 32 (EN55032), Class A CISPR
24 (EN55024), CISPR 35 (EN55035)
Safety UL 62368, CAN/CSA-C22.2 NO.
62368, IEC/EN62368, AS/NZS 62368
Environmental RoHS, WEEE, REACH
