Product Overview

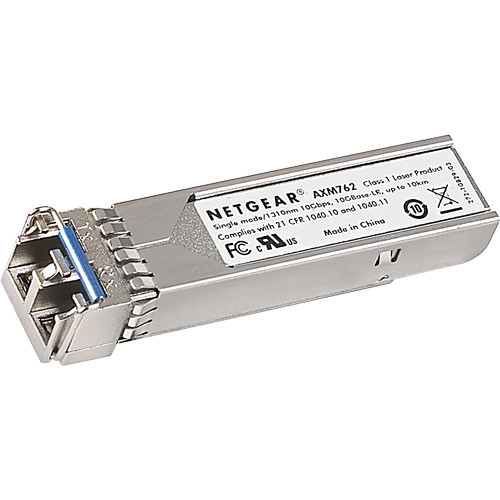

The ProSafe 10GBASE-LR SFP+ LC GBIC from Netgear provides an LC connector for your 10Gigabit Ethernet SFP+ module. Drive 10Gigabit Ethernet distances up to 10km using SMF single mode fiber cables.
1. Adds 10Gigabit Ethernet "long-reach" LC fiber connectivity to the standard SFP+ interfaces
2. Fits into the two built-in 10GE SFP+ interfaces of GSM7328S-200 and GSM7352S-200
3. Fits into the 10GE SFP+ interface of the SFP+ Adapter module AX743
4. Fits into standard 10Gigabit SFP+ interfaces
5. LC connector
6. Drives 10Gigabit Ethernet up to 6.2 miles (10km) with 9/125µm SMF single mode fiber cables
7. Drives 10Gigabit Ethernet up to 984' (300 m) distances with 50/125µm laser-optimized OM3 multimode fiber cables
8. Drives 10Gigabit Ethernet up to 108' (33 m) distances with 62.5/125µm OM1 multimode fiber cables
9. Provides hot-swappable installation or removal
10. 10GBASE-LR fiber technology is the same for XFP and SFP+ -- one Switch equipped with XFP 10GBase-SR LC connectivity can uplink to another Switch equipped with SFP+ 10GBase-LR LC connectivity using the same fiber
Technical Specifications
Standards IEEE 802.3ae 10GBase-LR
Wavelength 1310nm
Dimensions (HxWxD) 0.46” x 0.53” x 2.19”
(11.9 mm x 13.7 mm x 55.7 mm)
Weight 19.2g
Operating Temperature 32 -158º F (0 - 70ºC)
Storage Temperature 32 -185 ºF (0 - 85ºC)
Operative relative humidity 85% @ (25ºC)
Operating Distance 2m - 10km for 9/125 um SMF
Connectors LC for 9um/125um single mode cable
Power Consumption <1.5w
MTBF 4,986,536 hr (569 years)
Safety Certification UL 1950 CSA 22.2 No. 950
Environmental Compliance RoHS
Standards IEEE 802.3ae 10GBase-LR
Wavelength 1310nm
Dimensions (HxWxD) 0.46” x 0.53” x 2.19”
(11.9 mm x 13.7 mm x 55.7 mm)
Weight 19.2g
Operating Temperature 32 -158º F (0 - 70ºC)
Storage Temperature 32 -185 ºF (0 - 85ºC)
Operative relative humidity 85% @ (25ºC)
Operating Distance 2m - 10km for 9/125 um SMF
Connectors LC for 9um/125um single mode cable
Power Consumption <1.5w
MTBF 4,986,536 hr (569 years)
Safety Certification UL 1950 CSA 22.2 No. 950
Environmental Compliance RoHS
Warranty Information
5-Year Limited Warranty
