Product Overview

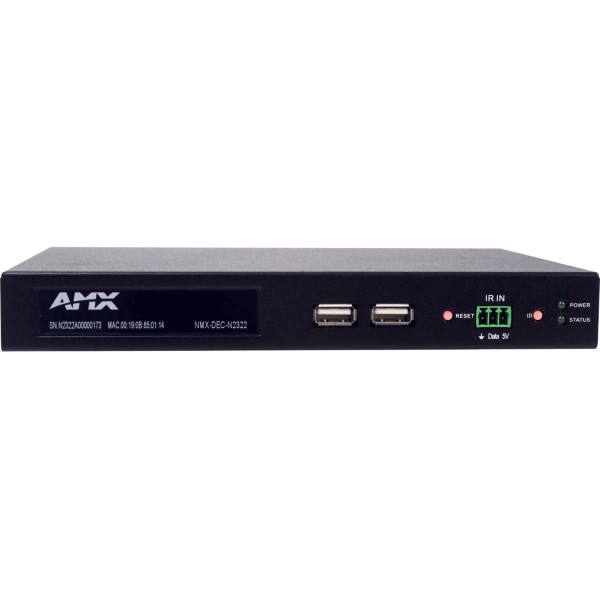

The NMX-ENC-N2312 Encoder and NMX-DEC-N2322 Decoder provide a flexible, feature-rich, and simple-to-deploy Digital Media Distribution and Switching solution which can be used in 4K applications with resolutions up to 4096x2160, with support for HDCP 2.2. This motion-based wavelet codec solution delivers video with nearly imperceptible latency at an incredibly low 200 Mb/s bandwidth allowing 4K distribution over standard gigabit Ethernet networks.
Any source can be sent to one or more displays by routing through layer 2 / layer 3 switches utilizing standard Cat5e cable. The NMX-DEC-N2322 includes standard features like output scaling, bi-directional serial, IR, embedded 7.1 audio, and KVM-over-IP extension.
FEATURES
- Design Flexibility - Start as small as 1x1 and grow the system in increments of single sources and devices by simply adding additional encoders and decoders
- Power Over Ethernet (POE) - eliminates requirement for local power supply and speeds installation. Units can still be powered locally from 12VDC allowing for easy rack-mountable, high-density installations
- Infrared (IR) - Emitter connection allows control of IR-only display devices
- Fast Install - With Phoenix connectors for Power, IR, RS232 serial, and analog audio interfaces
- Balanced and Unbalanced Audio - Embedded 7.1 digital audio or balanced/unbalanced analog audio
- Multiple Connection Options - RJ-45 and SFP network connectors and HDMI video connections
- KVM - Dual USB-A control for KVM applications
- Native NetLinx - NetLinx Studio can easily recognize the device
Specifications
General Information
Manufacturer Harman International Industries, Inc
Manufacturer Part Number FGN2322-SA
Brand Name Harman
Product Series N2300
Product Model NMX-DEC-N2322
Product Name N2300 Series 4K UHD Video over IP Stand Alone Decoder with KVM, PoE
Product Type Video Encoder
Technical Information
Functions Video Scaling,Video Encoding,Video Streaming,Audio Embedding
Maximum Resolution 4096 x 2160
Interfaces/Ports
HDMI Yes
Network (RJ-45) Yes
Physical Characteristics
Form Factor Rack-mountable
Height 1.1
Width 7.9
Depth 5.5
Weight (Approximate) 1.60 lb
