Product Overview
Atlona AT-HDVS-200 Overview

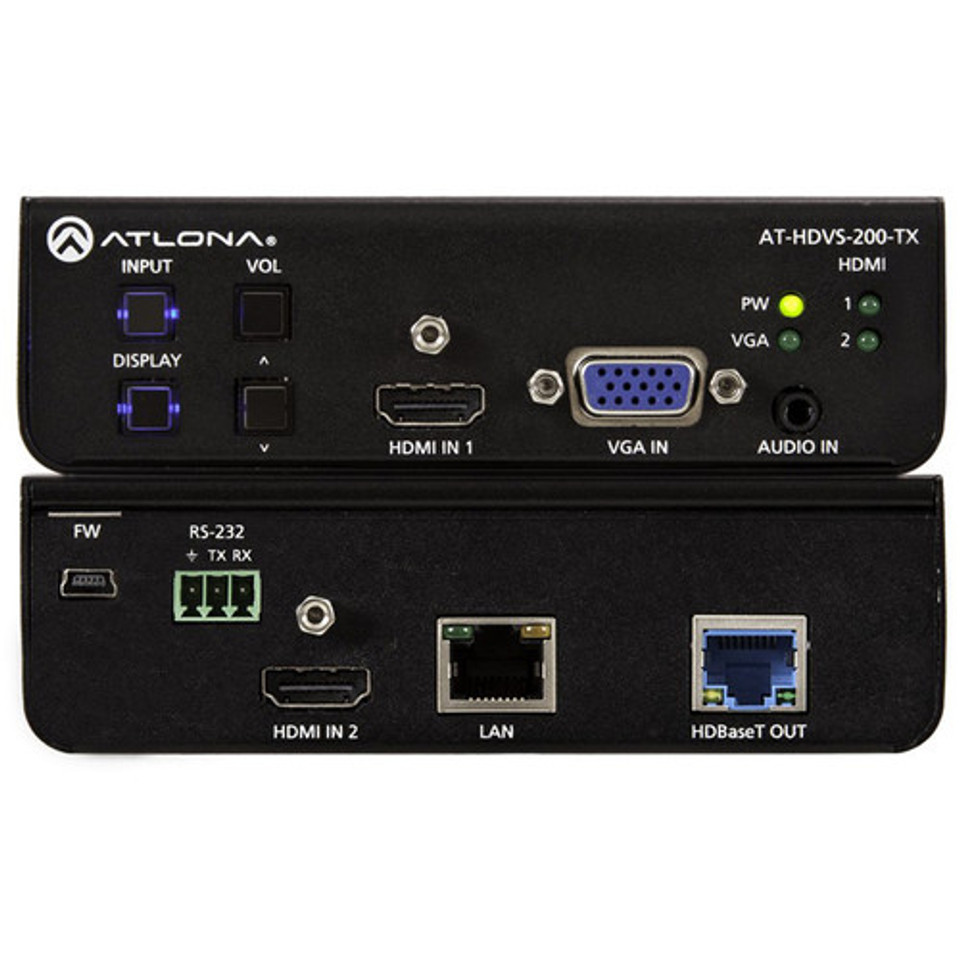

Make the Atlona AT-HDVS-200-TX Three-Input HDMI/VGA to HDBaseT Switcher, with PoE, the center of a small automated A/V setup for a compact and versatile solution. Featuring two HDMI inputs and a VGA input with analog audio, the AT-HDVS-200-TX will accept video signals from most media players and computers and send them along an HDBaseT interface. HDBaseT carries video, audio, control, and other important signal types down a single category cable for reliable performance up to 328'. 4K video and surround-sound audio are supported via HDMI inputs. RS-232 and Ethernet ports offer options for advanced software control, in addition to the front panel buttons. No separate power supply is required as this device operates off 48V provided by the HDBaseT connection to the separately available receiver.
General Features
- Auto-display control when using TCP/IP, RS-232, or CEC
- Auto-switching with video detection technology activated through RS-232, IP, or webGUI
- Control audio volume for HDBaseT output or display
- Analog audio embedding with standalone audio option
- Supports up to 4K resolutions at 60 Hz in 4:2:0 color space
- Ethernet pass-through for configuration, upgrading, and device management/control
- Supports Dolby TrueHD and DTS-HD Master Audio over HDMI
- HDCP and EDID management
Atlona AT-HDVS-200 Specs
| Resolution Support | Video: 4096 x 2160 24 / 25 / 30 / 50 / 60 3840 x 2160 24 / 35 / 30 / 50 / 60 2048 x 1080 1080p23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 1080i50 / 59.94 / 60 720p50 / 59.94 / 60 576p 480p NTSC PAL VESA: 2560 x 2048 / 1600 2048 x 1536 1920 x 1200 1680 x 1050 1600 x 1200 / 900 1440 x 900 / 1050 1366 x 768 1360 x 768 1280 x 1024 / 800 / 768 1152 x 768 1024 x 768 800 x 600 640 x 480 |
| Color Space | YUV, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| Analog | 2-Ch Stereo |
| HDMI | PCM 2-Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio |
| Sample Rates | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
| Bit Rate | Up to 24-bit |
| Category | Cat5e/6 @ 4K: 230' (70 m) Cat5e/6 @ HD: 328' (100 m) Cat6a/7 @ 4K: 328' (100 m) |
| HDMI | 4K: 15' (5 m) HD: 30' (15 m) |
| Bandwidth | 10.2 Gbps |
| CEC | Yes |
| HDCP | 1.4 |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | -4 to 14°F (-20 to 60°C) |
| Humidity | 20-90%, Non-condensing |
| Power Consumption | 30 W |
| Compliance | CE, FCC |
| Dimensions | 1.5 x 5.0 x 4.0" (38 x 127 x 102 mm) |
| Weight | 0.6 lb (290 g) |
| Package Weight | 1.085 lb |
| Box Dimensions (LxWxH) | 8.8 x 7.35 x 2.95" |
