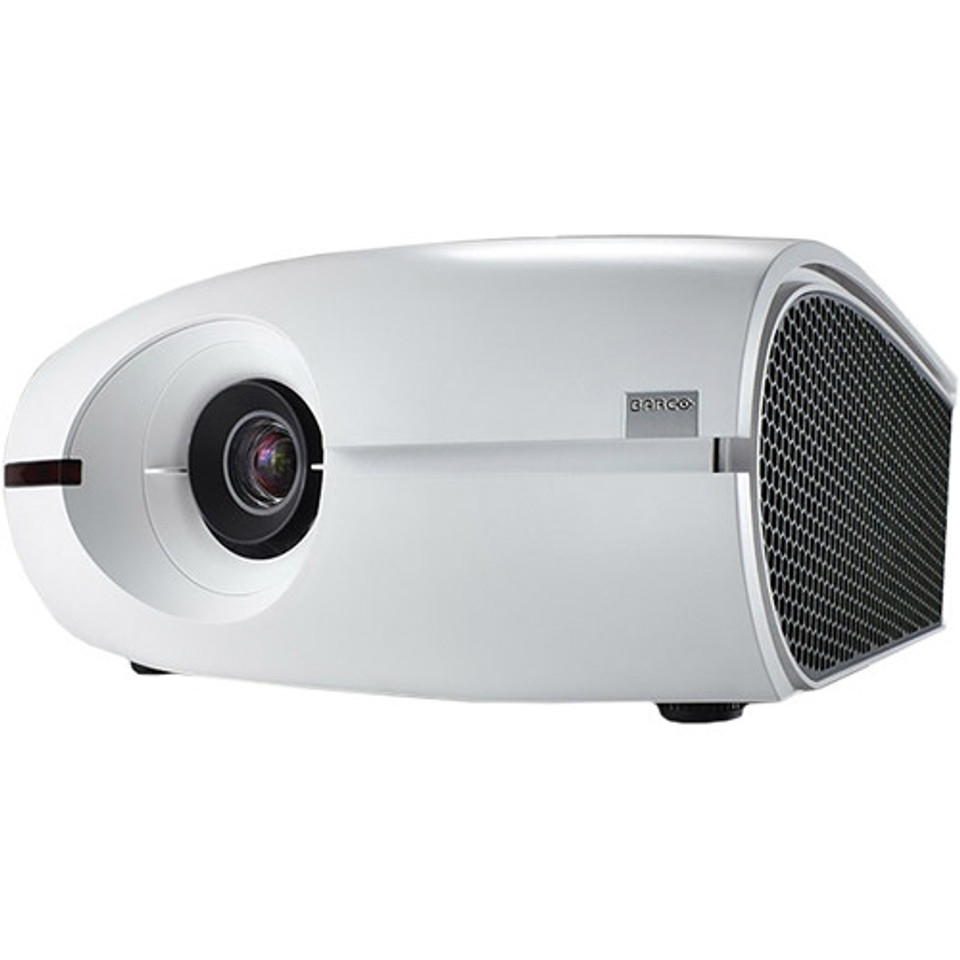

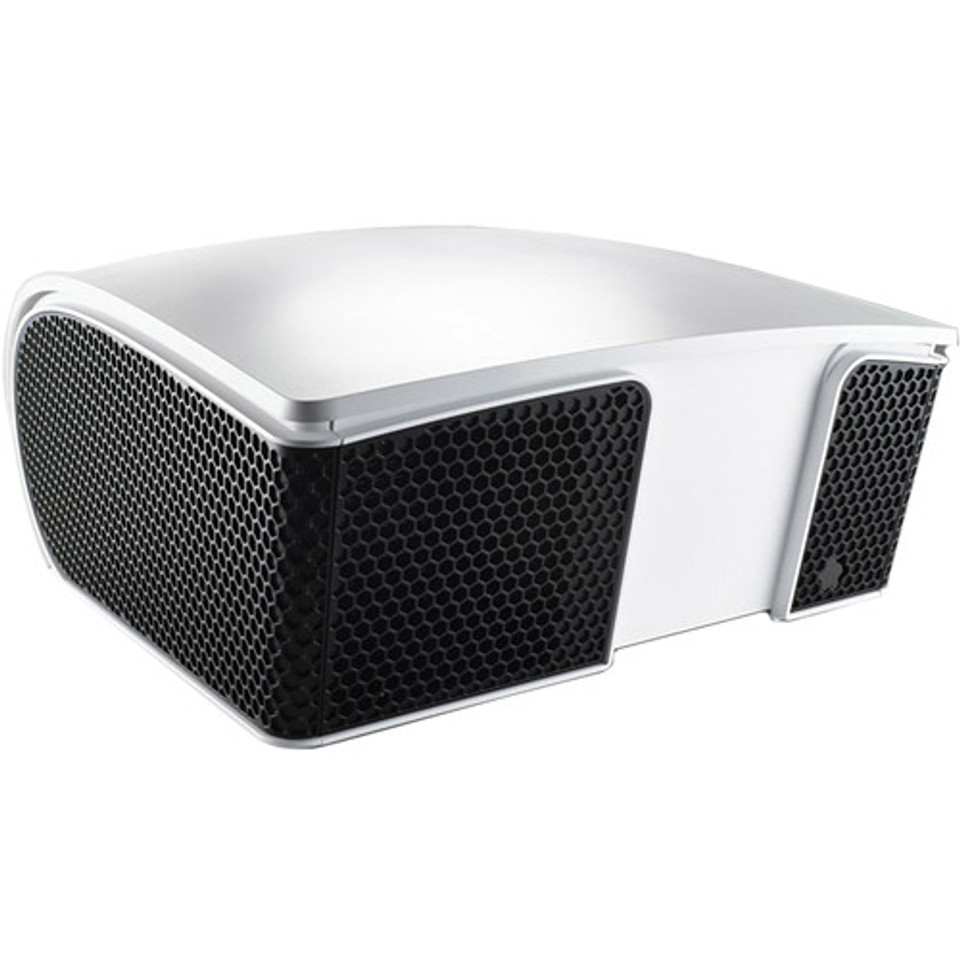

Barco PGWU-61B 5900-Lumen WUXGA DLP Projector

Bring versatility into the office with the Barco PGWU-61B 5900-Lumen WUXGA DLP Projector. It uses separately sold interchangeable lenses for a variety of throw ratios, image sizes, and zoom ranges. Its HDMI, DVI-D, composite, 5-BNC, and VGA inputs will allow you to show images from a number of different sources.

The projector has a VGA output to enable daisy chaining of multiple projectors to show the same image in multiple locations. It is controllable via Ethernet, RS-232, or the included IR remote.

Technical specifications

Projector type WUXGA single­chip DLP projector
Technology 0.67" DMD
Color wheel 6S standard (RGBYCW)
Resolution 1,920 x 1,200 WUXGA
Brightness 5,900 ANSI lumens*
4,250 ANSI lumens (eco­mode)*
*Measurement, measuring conditions, and method of notation all comply with ISO
21118 international standards.
Contrast ratio 1,100:1 / 4,800:1 (dynamic contrast mode)
Brightness uniformity 85%
Aspect Ratio 16:10
Lens type G lens
Lenses 1.22­1.53:1; 0.95­1.22:1; 1.52­2.92:1
Optical lens shift Vertical: ­100% to +100% / horizontal: ­28% to +28%
Color correction CCN (for 1 chip)
Lamps 1 x 465W Ushio
Lamp lifetime Up to 1,500 hours (full power) / Up to 2,000 hours (eco mode)
Transport with lamp Yes
Sealed DLP™ core Sealing between TIR prism and DMD
Advance Picture in Picture Yes
Orientation table ­ ceiling
Keystone correction Yes
Inputs G/Y, B/Pb, R/Pr, H/C, V; VGA; CVBS; HDMI­1 v1.3 ; DVI­D
Input Resolutions up to WUXGA (1,920 x 1,200) 60Hz
Software tools Projector Toolset
Control IR, RS232, RJ45
Network connection 10/100 base­T, RJ­45 connection
Power requirements 100­240V / 50­60Hz
Max. power consumption 585W @ 110V/540W @ 220V
470W @ 100VAC/460W @ 240VAC (eco mode) / less than 0.5W (standby)
Noise level (typical at 25°C/77°F) Typical 40 dBA (bright mode) / Typical 37 dBA (eco mode)
Operational ambient temperature 5­40°C / 41°­104°F (sea level)
Operational humidity 10­85%
Dimensions (WxLxH) 475 x 565 x 253.6mm
Weight 17 kg
Shipping dimensions (WxLxH) 934 x 574 x 440 mm
Shipping Weight from Factory 23 kg
