Product Overview

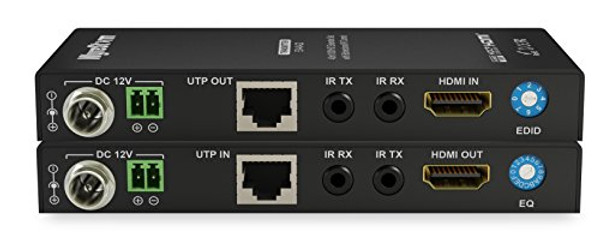

With the low-profile point-to-point EX-40-G3 extender set, it's never been easier to extend Full HD video over a cable; HD audio is also supported. Plus, IR source control and PoC all wrapped up in a compact chassis for unbeatable value, reliability and ease of installation.
Technical Specifications
Inputs
TRANSMITTER 1x HDMI 19-pin type A
RECEIVER 1x UTP 8-pin RJ-45 female
Outputs
TRANSMITTER 1x UTP 8-pin RJ-45 female
RECEIVER 1x HDMI 19-pin type A
Output Video Encoding TMDS over UTP
Encoding Data Rate 6.75Gb/s
Audio Formats 2ch PCM
Video Resolutions (max) 1920x1080p @60Hz 8bit
Supported Standards DCI
Maximum Pixel Clock 225MHz
COMMUNICATION & CONTROL
HDMI HDMI 1.3b | HDCP 1.4 | EDID | DVI/D supported with adapter (not included)
UTP HDMI | HDCP 1.4 | EDID | IR RX-TX | 1-way PoC Transmitter to Receiver
IR Transmitter: 1x IR TX: 3.5mm (1/8in) TRS Mono | Receiver: 1x IR RX: 3.5mm (1/8in) TRS Stereo
POWER
Power Supply 5V DC 1A (Optional for Receiver)
PoC 1-way Transmitter to Receiver
Max Power Consumption 2.5W (TX/RX Pair)
