Product Overview
Epson 697UI Overview
The BrightLink 697Ui Wireless Full HD 3LCD Ultra Short-Throw Interactive Projector from Epson features a Full HD WUXGA display and 4400 lumens of color and white brightness. The 696Ui delivers dynamic images up to 100" from as close as 10" away. Turn almost any wall or existing whiteboard into an interactive workspace with pen and touch-based interactivity. Furthermore, the projector offers encrypted enterprise-level security, wireless support, and content sharing for a variety of devices including Chromebooks, which can be used for BYOD classrooms. In addition, computer-free whiteboard sharing enables remote collaboration with offsite participants. It also includes a 1-year subscription to SMART Notebook.
3LCD, 3-chip technology with 4400 lumens of color/white brightness
View from anywhere in the room, up to 100" away for clear legibility and visibility
Pen- and touch-based interactivity allows up to six users to draw, share, and collaborate at once using familiar gestures
Encrypted enterprise-level security compatible with WPA, WPA2-PSK and WPA2-EAP security protocols
Wirelessly connect up to 50 devices, simultaneously share and control content from up to four screens at once using Moderator software, including Chromebook, PC, Mac, iOS, and Android devices
Easy content sharing between the big screen and wirelessly connected mobile devices, for individualized learning
Whiteboard sharing remote collaboration allows others to see and write to the whiteboard, even when they're not in the room

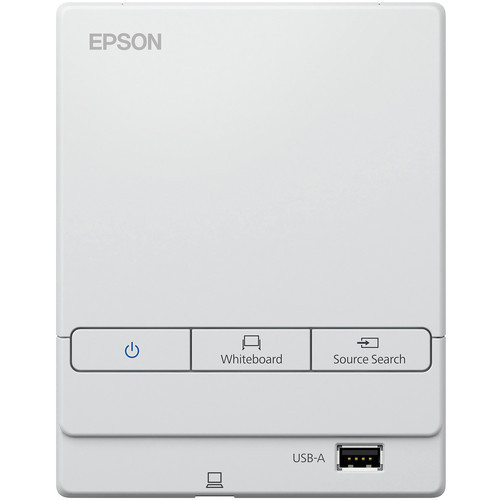

Wall-mounted control panel for easy projector control at your fingertips with access to on/off, source selection, and computer-free whiteboarding
Seamless integration with curriculum software, includes 1-year subscription and support for SMART Notebook
Epson 697UI Specs
Image Display
| Display System | 3-Chip LCD |
| Native Chip Resolution | 1920 x 1200 (WUXGA) |
| Maximum Brightness | White: 4400 Lumens Color: 4400 Lumens |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 16000:1 |
Lens
| Focus | Manual |
| Lens | f/0 - 1.6 (f = 0 - 4.2 mm) |
| Throw Ratio | 0.22 to 0.37:1 |
| Projection Size | 70.4 - 100" / 178.82 - 254.00 cm |
Features
| Keystone Correction | Horizontal: ± 3° Vertical: ± 3° |

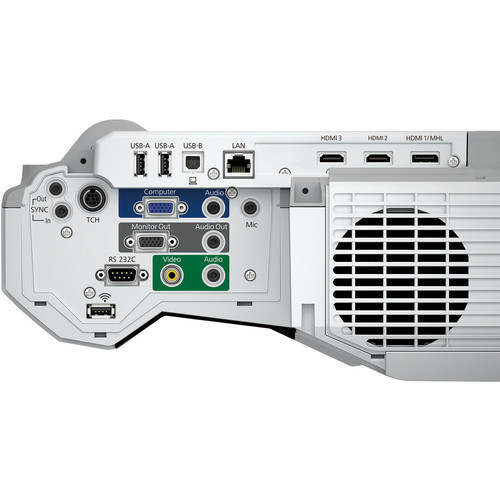

| Inputs/Outputs | 1 x HDMI (HDMI Type-A) Video Input 1 x HDMI with MHL Support (HDMI Type-A) Video Input 1 x VGA (DE-15/DB-15) Video Output 1 x Composite (RCA) Video Input 2 x 1/8" / 3.5 mm Mini Audio Output 1 x USB 2.0 (USB Type-B) Data Input 2 x USB 2.0 (USB Type-A) Data Input 1 x RS-232 (DE-9/DB-9) Service Input/Output 1 x VGA (DE-15/DB-15) Video Input |
General
| Lamp Power | 3000 W |
| Expected Lamp Life | Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours |
| Fan Noise | Medium Brightness: 38 dB Low Brightness: 30 dB |
| Security | Password Protection Security Bar |
| Power Consumption | Medium Brightness: 477 W Medium Brightness: 0.22 W |
| Dimensions (W x H x D) | 18.7 x 17.6 x 5.1" / 47.5 x 44.7 x 13.0 cm |
| Weight | 18.7 lb / 8.5 kg |
Packaging Info
| Package Weight | 56 lb |
| Box Dimensions (LxWxH) | 30.65 x 22.5 x 13" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
