Epson PowerLite 685W 3500-Lumen WXGA Ultra-Short Throw 3LCD Projector

Epson

(No reviews yet) Write a Review
$1,460.00
SKU:
685W
UPC:
010343924642
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

Epson 685W Overview

By B&H Photo's


Enjoy virtually shadowless images with the Epson PowerLite 685W 3500-Lumen WXGA Ultra Short-Throw 3LCD Projector. It features an ultra short 0.28 to 0.37:1 throw ratio, which will allow it to be mounted only 11" from your screen or whiteboard and project an image as large as 100", reducing the risk of possible shadows. Its 3500 lumens of brightness, combined with its 14,000:1 contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. The 1280 x 800 native resolution will help ensure that text is clear at most viewing distances.

The PowerLite 685W features USB, RCA composite, and three HDMI inputs to support various sources. One HDMI input is MHL-compatible, which will allow you to connect your compatible smart device directly to the projector to mirror its screen. The USB input allows you to project directly from a Windows or Mac computer. You can output the video to another projector or display with the VGA output. Its 3.5mm audio inputs and output allow for audio transmission, for a more immersive experience. An IR remote is included for convenient control.

High Color and White Brightness Levels
Both color and white brightness of 3500 lumens.
Ultra-Short Throw Projector
Can be mounted only 11" from the board or screen for a projected image as large as 100" diagonal, with virtually no shadow interference.
Split Screen
Simultaneously project two images (video or still) side-by-side from two different sources.
Built-In Speaker
The PowerLite 685W features a microphone input and built-in 16W speaker to amplify the audio of the presentation. You can also pass the signal through to external speakers, even in standby mode.
USB Plug & Play
Instantly project images from a Windows or Mac computer using a USB connection.
3LCD Color Accuracy
3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
Simultaneously Display and Control Multiple Device Screens
Wirelessly share content from up to four devices including Chromebooks, iOS, Android, Mac, and Windows devices, with Moderator software.
Manage Your Display and Sent Announcements Remotely
Designed for easy network connectivity with included software.
Versatile Connectivity
With three HDMI inputs, the PowerLite 685W supports multiple HD A/V devices; one HDMI input supports MHL for connecting compatible mobile devices.

Epson 685WSpecs

Display System
3-Chip Polysilicon TFT LCD
Native Resolution
1280 x 800
Maximum Brightness
3500 Lumens
Throw Ratio
0.28 to 0.37:1
Projection Size
60 to 100" / 152.40 to 254.00 cm
HDR Support
No

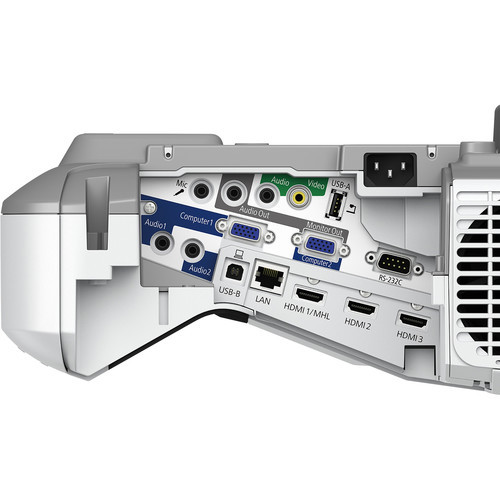

Inputs/Outputs
2x HDMI Audio, Video Input
1x HDMI  with MHL Support Audio, Video Input
1x USB-B 2.0 Data Input
1x RCA (Composite) Video Input
3x 1/8" / 3.5 mm Mini Microphone Input
1x 1/8" / 3.5 mm Mini Control Input
1x DE-9/DB-9 (RS-232) Control Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x USB-A 2.0 Power Output
1x RJ45 (Ethernet) LAN Input
Light Source
Lamp (1 x UHE)
Image Display
Display System
3-Chip Polysilicon TFT LCD
Native Resolution
1280 x 800
Supported Resolutions
Maximum: 1600 x 1200
Maximum Brightness
3500 Lumens
Aspect Ratio
16:10
Contrast Ratio
14,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Lens
Includes Lens
Yes
Focus
Manual
Aperture
f/1.6
Focal Length
3.7mm
Throw Distance
13.386 to 23.622" / 34 to 60 cm
Throw Ratio
0.28 to 0.37:1
Projection Size
60 to 100" / 152.40 to 254.00 cm
Features
Keystone Correction
Manual to Vertical: ± 3°
Manual to Horizontal: ± 3°
HDR Support
No
Digital Zoom
1.35x
Ceiling Mountable
No
Rear Screen Projection
Yes
Built-In Speaker
Yes (Mono)
Speaker Power
16 W
Input/Output Connectors
Inputs/Outputs
2x HDMI Audio, Video Input
1x HDMI  with MHL Support Audio, Video Input
1x USB-B 2.0 Data Input
1x RCA (Composite) Video Input
3x 1/8" / 3.5 mm Mini Microphone Input
1x 1/8" / 3.5 mm Mini Control Input
1x DE-9/DB-9 (RS-232) Control Input
1x DE-15/DB-15 (VGA) Video Output
1x 1/8" / 3.5 mm Mini Audio Output
1x USB-A 2.0 Power Output
1x RJ45 (Ethernet) LAN Input
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Lamp (1 x UHE)
Lamp Power
250 W
Expected Lamp Life
Medium Brightness: 5000 Hours
Low Brightness: 10,000 Hours
Fan Noise
Medium Brightness: 35 dB
Low Brightness: 29 dB
Security
Cable Lock Slot
Padlock
Password Protection
Input Power
120 to 240 VAC, 50 / 60 Hz
Power Consumption
Medium Brightness: 373 W
Low Brightness: 324 W
Standby Mode (Lamp Off): 2.2 W
Standby Mode (Lamp Off): 0.23 W
Dimensions (W x H x D)
14.5 x 7.4 x 15.8" / 36.8 x 18.8 x 40.1 cm (Including feet)
14.5 x 5.9 x 15.8" / 36.8 x 15.0 x 40.1 cm (Excluding feet)
Weight
12.6 lb / 5.7 kg
Packaging Info
Package Weight
19.5 lb
Box Dimensions (LxWxH)
21.4 x 19.3 x 10.2"
