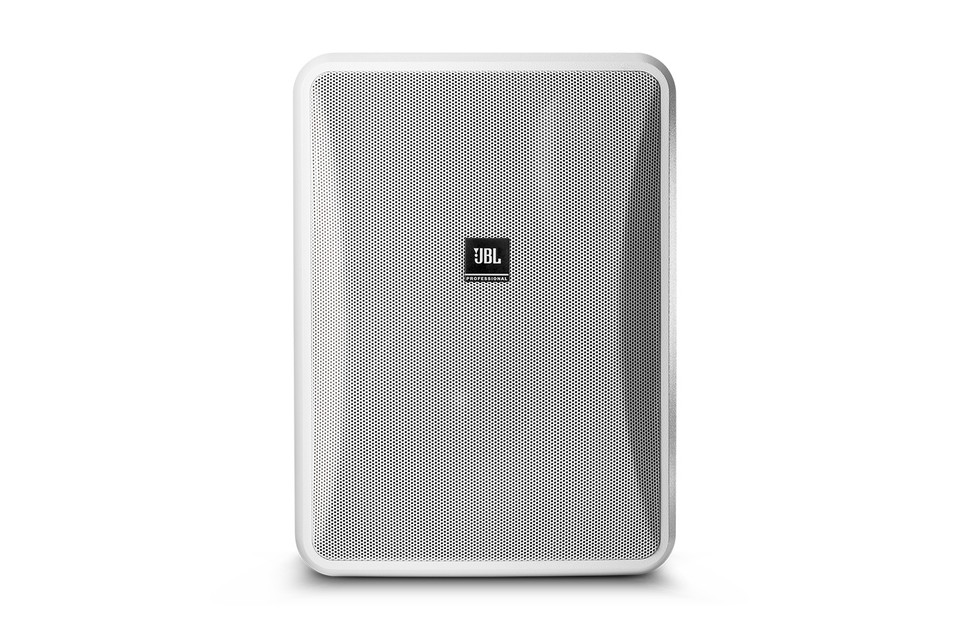

JBL CONTROL 28-1-WH Overview
Designed by JBL, these Control 28-1 loudspeakers are two-way 8" indoor/outdoor monitors featuring weather-protected circuitry, natural and powerful representations of the frequency spectrum, white enclosures, and JBL's proprietary InvisiBall mounting hardware. This hardware allows you to install the speakers through a hidden access point behind its logo badge. As such, the Control 28-1 suitable for venues, health clubs, theme parks, cafes, or anywhere where foreground/background music—and paging—is a necessity.
These monitors are capable of handling 240W of programmatic material at 8 Ohms, and feature a built-in multi-tap transformer for operation on distributed speaker lines. With an SPL of 112 dB, you can blast these speakers pretty loudly as well, while their cone geometry ensures a pleasurable listening experience in both on- and off-axis situations. Additionally, their PEI diaphragms render a smooth high-frequency response. But sound is not the only consideration: Kapton voice coil formers, JBL's WeatherEdge rubberized extensions, and a durable cabinet construction provide protection against heat, rain, wind, or anything else the elements might throw at you in the coming years.
Also, while the Control 28-1 comes in a white finish, it doesn't have to stay that way: these speakers accept a variety of finishes and pigments to match any surrounding.
Key Features
- 8" woofers with woven fiberglass cone
- 1" PEI diaphragm tweeters with fluid cooling
- Built-in InvisiBall mounting hardware
- Weather-resistant enclosure and transducers
- 100° x 100° coverage
- 240W power handling of programmatic material in direct 8 Ohms setting, plus built-in multi-tap transformers
- Frequency response of 45 Hz to 20 kHz.
JBL CONTROL 28-1-WH Specs
| Active or Passive | Passive |
| Speaker Configuration | 2-Way |
| Power Handling | For 100 Hours: 90 W RMS 360 W Peak For 2 Hours: 240 W Program 120 W RMS 480 W Peak |
| Constant Voltage / Transformer Taps | 100 V: 60 / 30 / 15 W or 8 Ohms Bypass 70 V: 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass |
| Impedance | 8 Ohms (Thru Setting) |
| HF Driver | 1" / 25 mm PEI Tweeter |
| LF Driver | 8" / 20 cm Fiberglass Woofer |
| Frequency Response | 45 Hz to 20 kHz ±10 dB 62 Hz to 16 kHz ±3 dB |
| Sensitivity | 91 dB |
| Coverage Angle | 100° H x 100° V |
| Directivity | 7.3 (Directivity/Q Factor) 8.3 dB (Directivity Index) |
| Crossover | Low-Pass: 12 dB/Octave High-Pass: 6 dB/Octave |
| Recommended High-Pass Filter | 15 / 7.5 W, Low-Z: 45 Hz, 24 dB/Octave 30 W: 55 Hz, 24 dB/Octave 60 W: 65 Hz, 24 dB/Octave |
| Maximum Input Voltage | 27.5 V RMS 55 V Peak |
| Transformer Insertion Loss | <0.94 dB |
| I/O Connectors | Screw Terminal |
| Maximum Wire Gauge | 12 AWG / 2.5 mm |
| Certifications | RoHS, UL, as per Manufacturer |
| IP Rating | IP44 |
| Color | White |
| Construction Material | High-Impact Polystyrene, Metal Grille |
| Dimensions | 15.2 x 11.1 x 8.6" / 386 x 282 x 219 mm |
| Weight | 15 lb / 6.8 kg |
| Package Weight | 34 lb |
| Box Dimensions (LxWxH) | 22 x 17 x 13" |
