Product Overview
Features

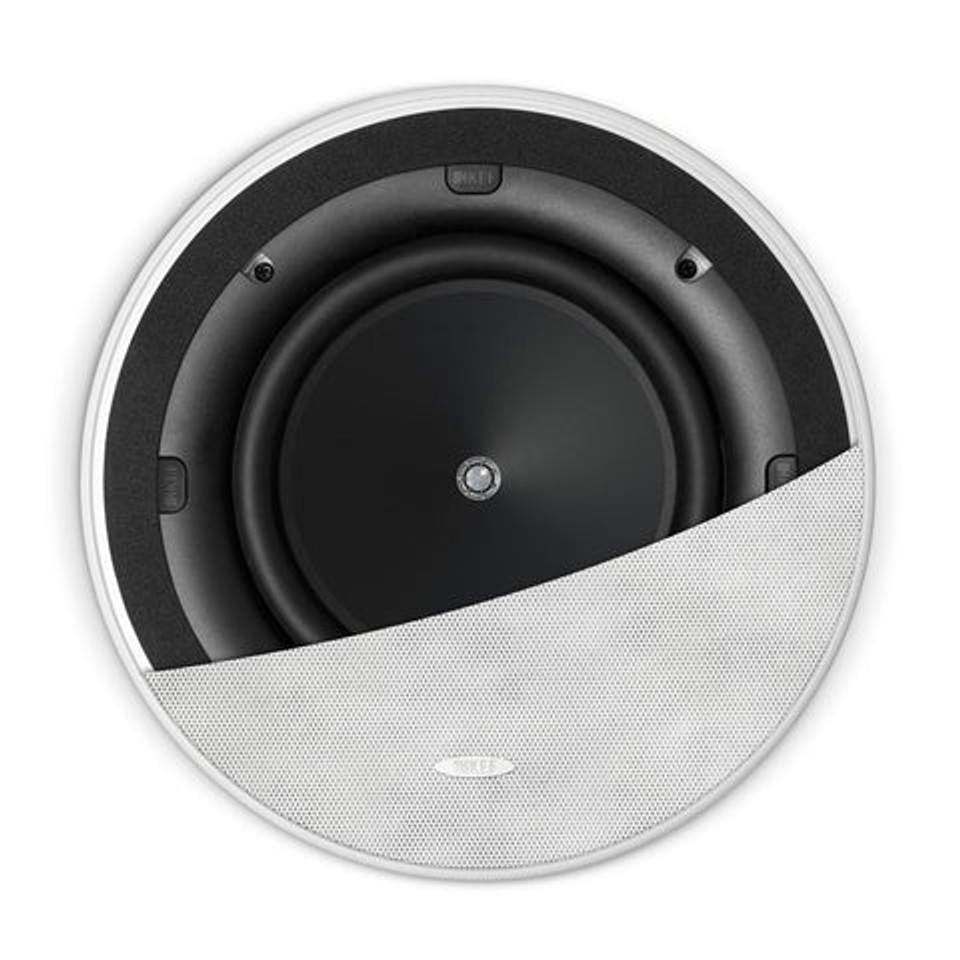

UTB™ Ultra-Thin Bezel
200mm (8in.) Uni-Q driver
16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
Magnetic grille
Paintable grille and bezel
Weather Resistant
IP64 certified
Specifications
Nominal Impedance
8 Ohms
Sensitivity
90dB (2.83V/ 1m)
Frequency Response
45Hz - 20kHz (+/-6dB) open-backed
Crossover Response
45Hz - 20kHz (+/-6dB) open-backed
Drive Units
LF: 200mm (8in.) Uni-Q
HF: 16mm (0.6in.)
HF: 16mm (0.6in.)
Recommended Amplifier Power
10-125W
Product External Dimensions
Diameter: 289.6mm (11.4in.)
Depth: 103.3mm (4.07in.)
Depth: 103.3mm (4.07in.)
Cut-Out Dimensions
Diameter: 240mm (9.45in.)
Mounting Thickness
Ceiling Thickness (Maximum): 37mm (1.460in.)
Ceiling Thickness (Minimum): 6mm (0.240in.)
Ceiling Thickness (Minimum): 6mm (0.240in.)
Mounting Depth From Surface
97.2mm (3.83in.)
Optional Rough In Frame
RIF200R
Optional Rear Enclosure
RNC200R
Net Weight
1.7kg (3.7lbs)
Unit Measurement
Piece
Warranty Information
1 year warranty
