Product Overview

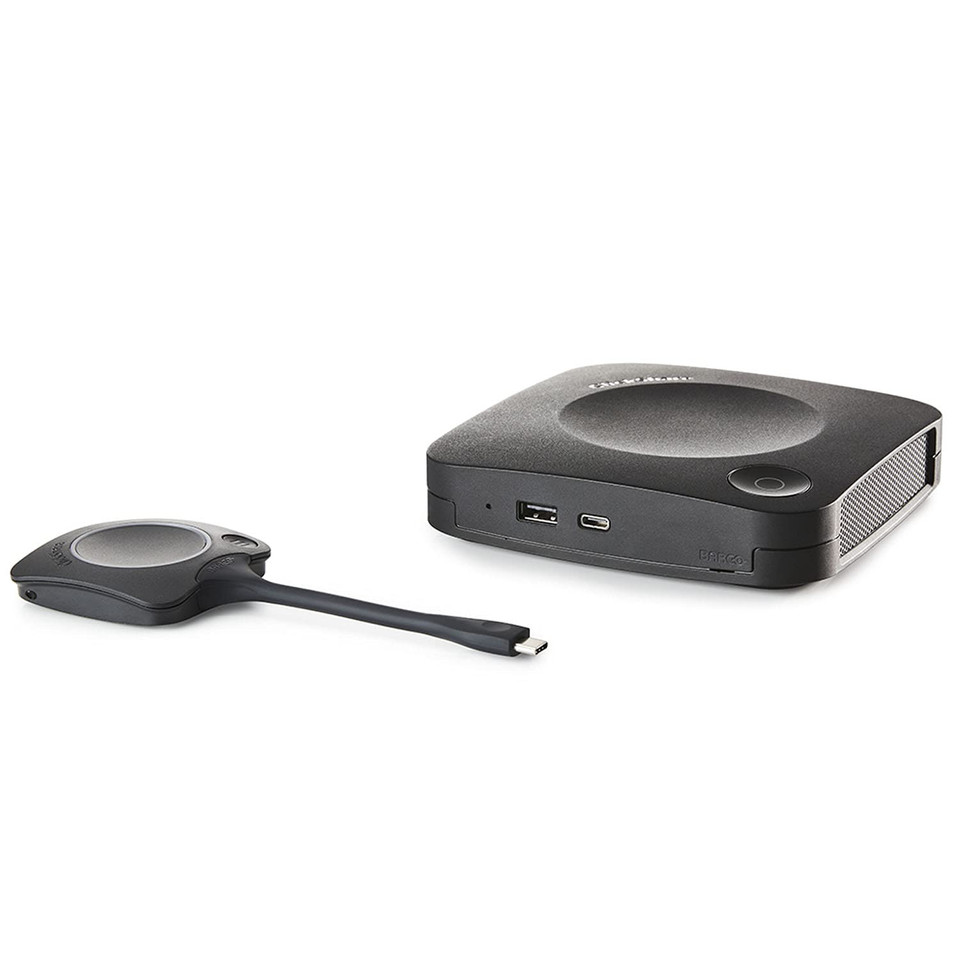

Barco Clickshare Overview
Make conducting team meetings in your office's conference room more intuitive and incorporate both in-person and virtual participants, using the Barco ClickShare C-10 base unit and button. This conference system features full bring-your-own-device compatibility for Windows or Mac operating systems and extends to laptops, tablets, and phones. Screen sharing and control can be achieved via the button or software application.
Two users can share screens simultaneously in full HD resolution without cables. The C-10 has enhanced security with cloud management capabilities and a wide range of connectivity options in order to be integrated into any preexisting interface. Wireless communication between the button and base unit extends up to 100.
Key Features
- Bring-Your-Own-Device Conference System
- Wirelessly Collaborate in Meeting Rooms
- Share Screen in Windows or macOS
- Control via Button or App
- Tablets, Laptops, Mobile Devices
- Enhanced Security, Cloud Management
- 100' Signal Reach
Features at a Glance
- Compatible with both Mac and Windows operating systems
- Screen mirroring via Airplay, Google cast, and Miracast
- Advanced features include local view of room display, full screen/single window display, annotation, blackboarding, and touchback support
- Enhanced security and wide range of connectivity for integration into preexisting conference setups or use on its own
- XMS cloud management platform for remote management of units
Barco Clickshare Specs
| Operating System | Windows 8/8.1/10/11 MacOS 10.13 or Higher ClickShare App: Android v9 and Higher, iOS 12 and Higher |
| Video Output | 4K UHD at 30 Hz, HDMI 1.4b |
| Audio Output | HDMI |
| Protocols | Airplay, Google Cast, Miracast |
| Simultaneous Connections | Maximum 32 |
| Noise | 25 dBA @ 32 to 86°F / 0 to 30°C 30 dBA @ 86 to 104°F / 30 to 40°C |
| Authentication Protocols | WPA2-PSK in Stand Alone Mode WPA2-PSK or IEEE 802.1X Using ClickShare Button in Network Integration Mode |
| Wireless Transmission Protocol | IEEE 802.11 a/g/n/ac and IEEE 802.15.1 |
| Reach | Max 100 ft / 30 m |
| Frequency Band | 2.4 and 5 GHz |
| Connections | 1 x RJ45 LAN 1 Gb 1 x USB Type-C 2.0 1 x USB Type-A 2.0 |
| Operating Temperature | 32 to 104°F / 0 to 40° |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 0 to 85% Relative Humidity, Non-Condensing |
| Storage Humidity | 0 to 90% Relative Humidity, Non-Condensing |
| Anti-Theft Technology | Kensington Lock |
| Certifications | FCC/CE |
| Network Connection | LAN & WiFi |
| Power Supply | 110 to 220 VAC |
| Power Consumption | 24 W |
| Dimensions | Base Unit: 5.3 x 5.3 x 1.3" / 135 x 135 x 34 mm |
| Weight | 31.7 oz / 900 g |
Packaging Info
| Package Weight | 2.795 lb |
| Box Dimensions (LxWxH) | 11 x 7 x 3.2" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
