Product Overview

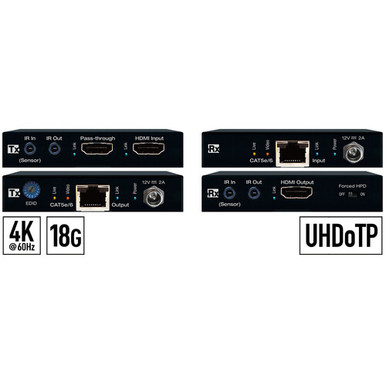

KD-EX18G is an HDMI extender Tx + Rx set with 4K/UHD resolution and bandwidth support up to 18Gbps and HDCP2.2 compliancy. In addition to HDMI video and audio signals, KD-EX18G carries IR for controlling remotely located equipment. KD-EX18G features 4K to 1080p down convert, EDID handshake control, and hot plug detection integration tools, as well as an HDMI pass-thru port for connecting to AV Surround Receivers or local monitors.
FEATURES
-
UHDoTP via Single CAT5e/6 UTP/STP Extension: With fully automatic adjustment of feedback, equalization, and amplification depending on cabling length
-
4K Resolution Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
-
4K to 1080p Down Convert: Optional resolution conversion applied at UHDoTP output provides added integration options in retrofit installations as well as added distance performance
-
10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension
-
Flexible Power over CAT (PoC): Only one power connection needed. Tx may power Rx, or Rx may power Tx
-
Low Profile: Slim chassis design
-
Signal Extension: 4K/UHD up to 35m (115ft) using CAT5e/6, up to 40m (131ft) using CAT6A STP. 1080p up to 50m (164ft) using CAT5e/6, up to 60m (197ft) using CAT6A STP
-
IR Sensor: Sensor powering via +5V on IR In port collects line-of-sight IR from remote(s) without external IR connecting block
-
HDMI Pass-Through: Enables connection to local monitor or AV Receiver
-
Surround Audio Support: HDMI pass-thru port supports Dolby®, Dolby® TrueHD, DTS™ and DTS-HD™ (formats up to 7.1), UHDoTP output supports Dolby®, DTS™ (formats up to 5.1/6.1
ADDITIONAL FEATURES
-
HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant
-
Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:2:2/8 bit
-
EDID Control: Internal library with 15 EDID handshakes including 4K with HDR in addition to native EDID data from Output/Display device connected to Rx
-
Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected display/output device
-
Full Buffer System™: Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID handshake control, and Hot Plug Detection control
-
Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate UHDoTP transmission channel
-
HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels
-
Up/Down IR: Two channels of IR enable control to/from devices or control system
