Product Overview

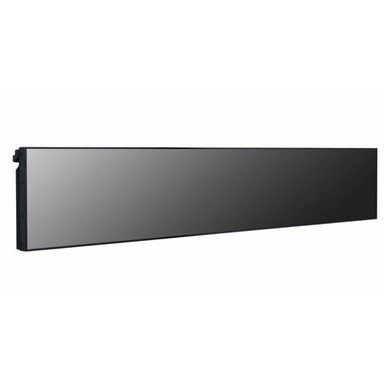

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

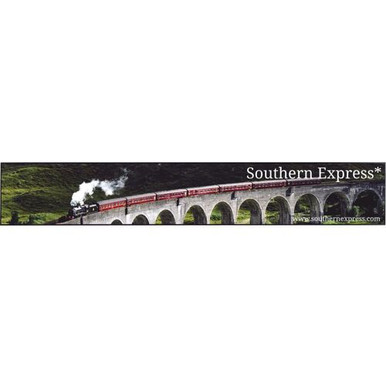

58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content than the conventional display of 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
User-Friendly UX

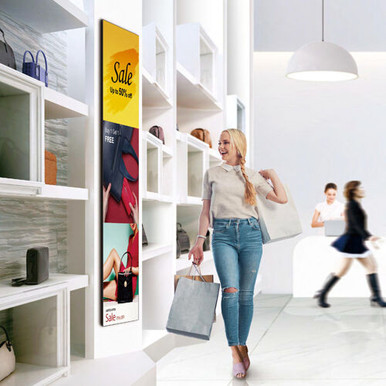

The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD can also be adjusted accordingly.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution ConnectedCare. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
- Brightness(Typ.) : 500 cd/m²
- Aspect Ratio: 58:9
- Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
- Depth: 81.7mm

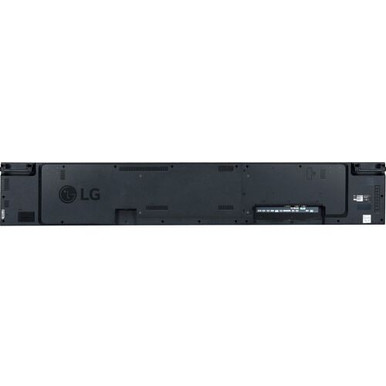

- Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR
SPECIFICATIONS
General Information | |
| Manufacturer Part Number | 86BH5F-M |
| Product Line | Ultra Stretch |
| Product Series | BH5F-M |
| Product Model | 86BH5F-M |
| Product Name | 86BH5F-M Ultra Stretch Signage |
| Product Type | Digital Signage Display |
Technical Information | |
| Bezel Width (Bottom) | 0.23" |
| Bezel Width (Top) | 0.23" |
| Bezel Width (Left) | 0.17" |
| Bezel Width (Right) | 0.17" |
Display & Graphics | |
| Number of Screens | 1 |
| Screen Size | 86" |
| Display Screen Type | IPS |
| Display Resolution | 3840 x 600 |
| Backlight Technology | LED |
Video | |
| Brightness | 500 Nit |
| Network & Communication | |
| Ethernet | Yes |
Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Number of USB 2.0 Ports | 2 |
| Number of HDMI Inputs | 3 |
Power Description | |
| Input Voltage | 120 V AC |
|
| 230 V AC |
Physical Characteristics | |
| Color | Black |
| VESA Mount Standard | 600 x 200 |
Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | ErP |
