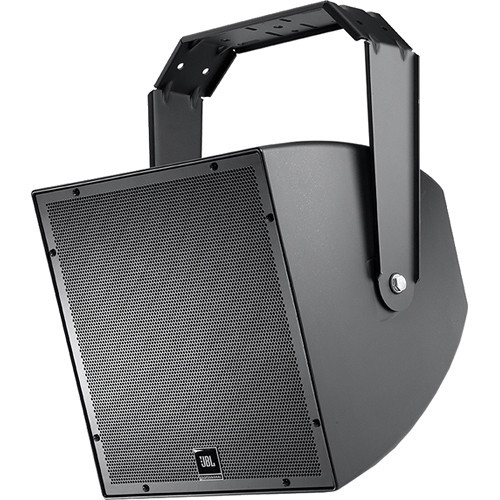

JBL AWC129-BK All-Weather 12″ Compact 2-Way Coaxial Loudspeaker

OfficeWonderland has best prices on JBL AWC129-BK Commercial Speakers and Subwoofers.
The JBL AWC129-BK All-Weather Compact 2-Way Coaxial Loudspeaker with 12″ LF (Black) is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools and a wide variety of other outdoor or indoor venue types.

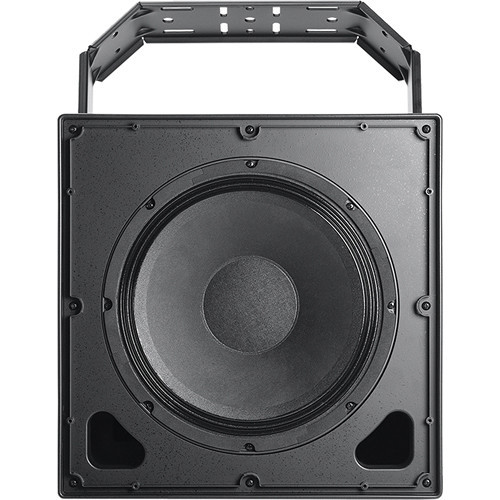

This JBL Loudspeaker is comprised of a high-power coaxial 304.8 mm (12 in) low frequency driver and 25.4 mm (1 in) high frequency compression driver. The co-axial design utilizes a unique tapered pole piece design and transitions to the cone of the low frequency driver as a large diameter pattern control horn for the high frequencies, both eliminating high-frequency beaming which is common among this category of speaker and extending pattern control to the lowest possible frequencies. The result is a coaxial speaker with wide, extremely consistent 90deg. coverage on a broadband basis.

• Coaxial 12" Woofer and 1" HF Driver
• 400W Power Handling
• 90 x 90° Pattern Control
• Highly Weather-Resistant IP56 Rating
• Integrated Multi-Tap Transformer
• Supports 70V, 100V, or 8-Ohm Operation
• Passive High-Slope Crossover Network
• SonicGuard HF Overload Protection
• Includes U-Bracket for Easy Installation

Specifications

System:
Frequency Range (-10 dB)1 : 55 Hz – 20 kHz
Frequency Response (±3 dB)1 : 80 Hz – 20 kHz
Coverage Pattern2 : 90° x 90°
Directivity Factor: 10.1 (1 k – 16 kHz)
Directivity Index (DI): 9.5 dB (1k – 16 kHz)
Long-Term System Power Rating (IEC)3
: 400 W (1600 W peak), 2 hrs.
250 W (1000 W peak), 100 hrs
Sensitivity (2.83V @ 1m): 96 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL4
: Direct 8Ω: 122 dB (peaks of 128 dB)
200 W Tap: 119 dB
Crossover Network: 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd
order low-pass to LF
Nominal Impedance: 8 ohms
Transformer Taps: 70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W

Transducers:
Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
High Frequency Driver: 25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
HF Driver Protection: Minimum audibility SonicGuard™ HF overload protection

Physical:
Enclosure: ABS with Glass enclosure, heavily braced
Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary
safety attachment point on back panel.
Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille,
3-layer assembly with foam and woven poly mesh backing.
Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept
up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire
up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment
cover equipped with gland nut that forms water-tight seal with roundjacketed cables with outside diameters between 4.0 mm (0.16") and
9.0 mm (0.36")
Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle.
Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and
ASTM G85 for salt spray (168 hrs).
Dimensions: 402 x 402 x 445 mm (15.8 x 15.8 x 17.5), cabinet
470 mm (18.5 in) depth with gland nut
542 mm (21.4 in) including bracket extending to back
Colors: Available in gray (similar to Pantone 420C) and black (-BK)
Net Weight: 15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket
Shipping Weight: 23.4 kg (51.5 lbs)
Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
