JBL Professional JBL-C68HP Full-Range 2-Way High Power Pendant Loudspeaker

JBL
Condition:
New
$898.99
Shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
JBL-C68HP
UPC:
0691991039331
MPN:
JBL-C68HP
Availability:
In stock, ship same-day or until 48 Hrs
  • JBL Professional JBL-C68HP Full-Range 2-Way High Power Pendant Loudspeaker
  • JBL Professional JBL-C68HP Full-Range 2-Way High Power Pendant Loudspeaker

Description

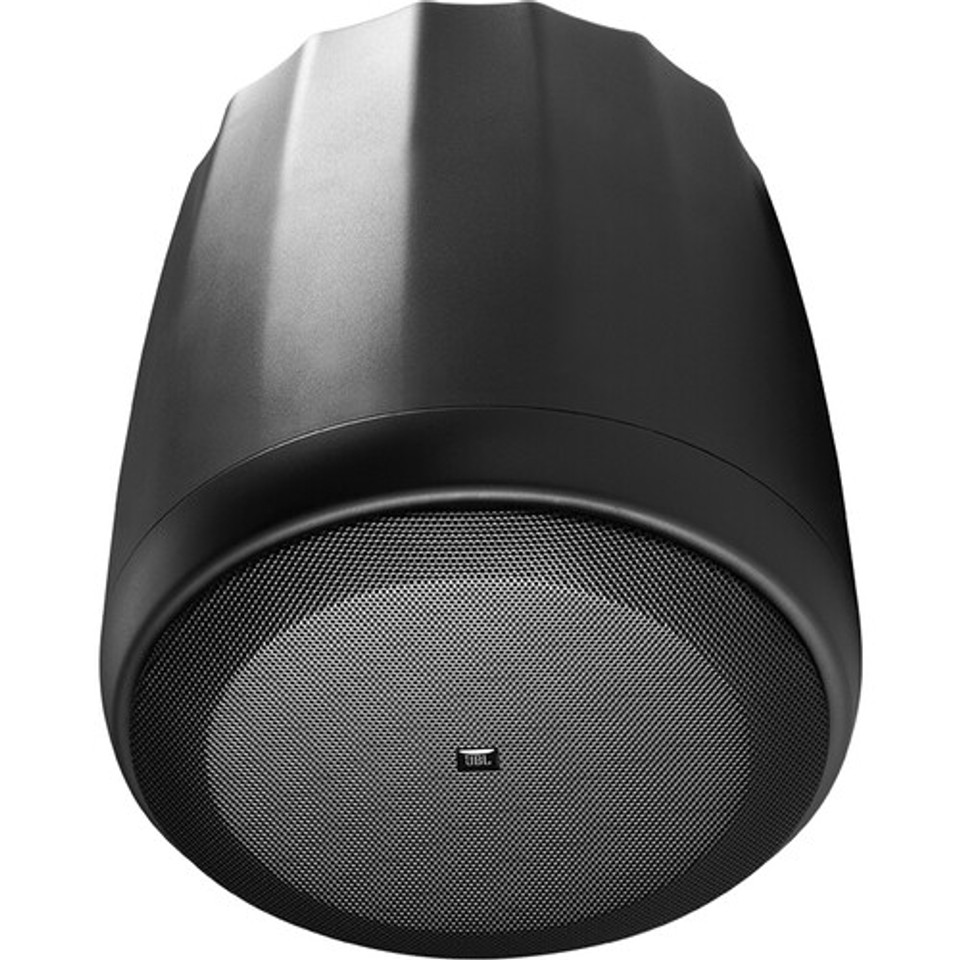

Aimed at retail spaces, hotels, casinos, convention centers, exhibit and museum spaces, atriums, public transit locations, or any space with high ceilings and an open architectural style, the black Control 68HP from JBL is a dependable and very-high output pendant speaker with a coaxial two-way configuration, sporting an 8" composite-reinforced cone woofer and a 1" titanium dome compression driver for extremely potent sound. With a wide, consistent coverage of 110° and an innovative single-point suspension system that uses two galvanized steel cables for secure hanging and easy height adjustment, you can achieve an optimal sound in even the most reverberant and challenging of acoustical spaces.

The Control 68HP can handle plenty of power, with support for up to a peak power input of 1000W, and sports a 68W multitap transformer for supporting 70 or 100V distribution modes as well as direct 8-ohm operation. The IP44 weather rating ensures safe use in controlled outdoor environments where excessive moisture, dirt, and salt may damage lesser speakers. The suspension system is exceptionally reliable, and this speaker includes two 15' steel cables (one for the primary support and one for the safety backup), spring clips and Gripple-brand adjustable height cable fasteners for attaching to the speaker bracket, and two 2-pin Euroblock connectors, along with two rubber connector boots for covered exterior environments.

Potent Sound Reproduction
The system's 8" low-frequency driver features a polyamide composite-reinforced cone and a large 2" CCAW voice coil on a fiberglass voice coil former for high power and improved long-term reliability. The coaxially mounted 1" compression driver features a titanium dome with damped resonance and a Kapton voice coil former for enhanced long-term sound level capability combined with high-fidelity sound quality.

Ideal Coverage for Public Spaces
Control 68HP provides extremely consistent 110° constant directivity conical coverage. The coaxial driver's pole piece is internally milled to form a low-distortion throat while the cone forms the bell of a conically contoured constant directivity horn, resulting in extremely consistent sound character throughout the entire listening area.

Secure Mounting
The Control 68HP includes a single-point mounting system for easy and secure suspension in open-ceiling applications. Two complete hanging cable systems are included, providing both main and safety suspension cables.

Included are extra-long 15' high-tensile galvanized steel wire rope having spring clips for the loudspeaker end of the cable and UL listed cable fasteners for infinitely adjustable suspension height.

Specifications

Key Specs
Active/Passive Passive
Number of Included Speakers 1
Speaker Configuration 2-Way
Power Handling
150 W
250 W
For 2 Hours:
500 W Program
1000 W Peak
For 100 Hours:
600 W Peak
Constant Voltage / Transformer Taps
70 V:
68 / 34 / 17 / 8.5 W or 8 Ohms Bypass
100 V:
68 / 34 / 17 W or 8 Ohms Bypass
Impedance 8 Ohms
HF Driver 1x 1" / 2.5 cm Titanium Dome Compression Driver
LF Driver 1x 8" / 20.3 cm Kevlar Woofer
Frequency Range 72 Hz to 16 kHz ±3 dB
Color Black

Speaker
Active/Passive Passive
Number of Included Speakers 1
Speaker Configuration 2-Way
Power Handling
150 W
250 W
For 2 Hours:
500 W Program
1000 W Peak
For 100 Hours:
600 W Peak
Constant Voltage / Transformer Taps
70 V:
68 / 34 / 17 / 8.5 W or 8 Ohms Bypass
100 V:
68 / 34 / 17 W or 8 Ohms Bypass
Impedance 8 Ohms
Transformer Wattage 68 W
Enclosure Type Sealed

Drivers
HF Driver 1x 1" / 2.5 cm Titanium Dome Compression Driver
LF Driver 1x 8" / 20.3 cm Kevlar Woofer
LF Voice Coil 2" / 5.1 cm
Magnet
LF:
Ferrite

Performance
Frequency Range 72 Hz to 16 kHz ±3 dB
Frequency Response 52 Hz to 17 kHz -10 dB
Maximum SPL 114 dB (Continuous),120 dB (Peak)
Sensitivity 90 dB (Average)
Coverage Angle 110° (Conical)
Directivity 7.8 (Directivity/Q Factor),8.9 dB (Directivity Index)
Recommended High-Pass Filter 60 Hz, 24 dB/Octave
Maximum Input Voltage 41.4 V RMS
Transformer Insertion Loss 0.5 dB at 8.5 W,0.5 dB at 17 W,0.6 dB at 34 W,0.7 dB at 68 W

Connectivity
Inputs/Outputs 1x Block 2-Pin Speaker Input (Locking, Removable),1x Block 2-Pin Speaker Thru (Locking, Removable)
Maximum Wire Gauge 12 AWG

Environmental
Certifications UL1480A, UL1598, UL2239, CSA C22.2, IEC62368-1, CE, RoHS
Environmental Protection Salt/Dust/Humidity/Water-Resistant (IP44 / MIL-STD-810)

Physical
Color Black
Mounting 1x Bracket Point (Top) ,2x Suspension (Top)
Construction Material Polystyrene, Steel
Dimensions 14.5 x 13.1" / 36.8 x 33.3 cm
Weight 16.5 lb / 7.5 kg

View AllClose

Warranty Information

Limited 1-Year Manufacturer Warranty
