Product Overview
Chief LCB2X1U Overview

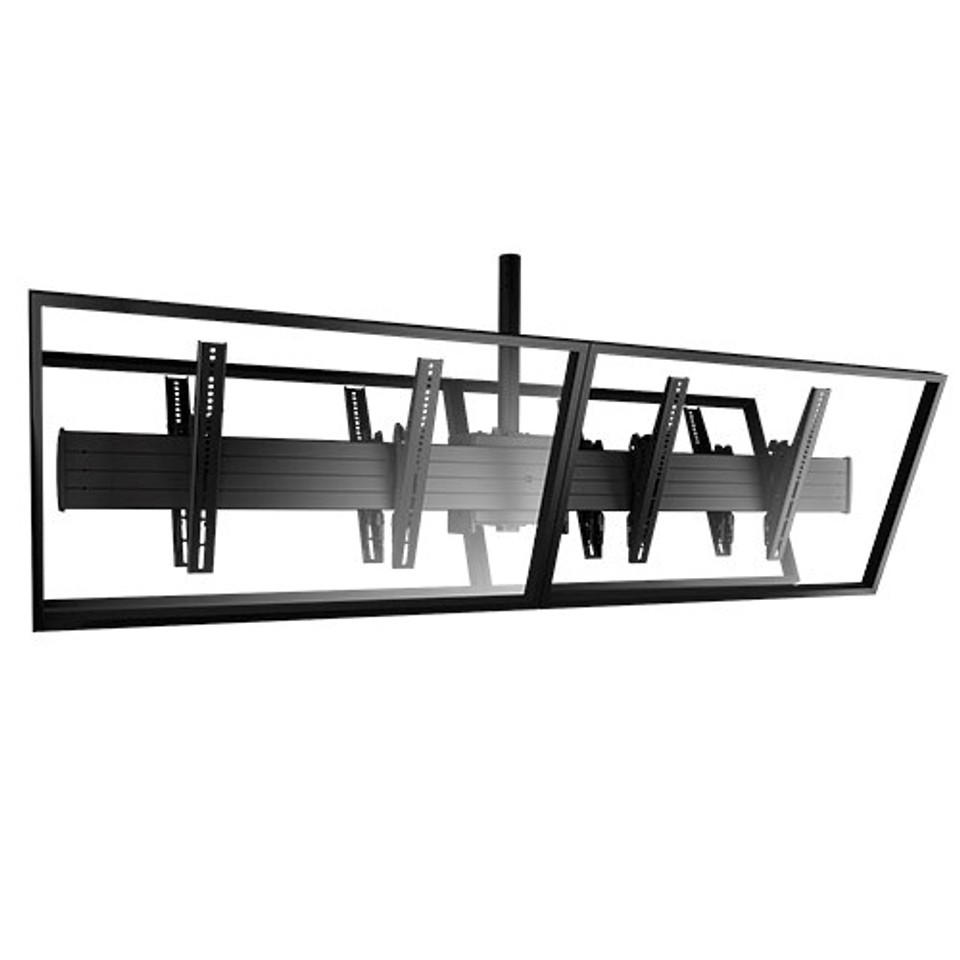

The black FUSION LCB2X1U Large Back to Back Ceiling Mountable 2 x 1 Menu Board Mount from Chief makes construction of menu boards possible using four 40 to 55” displays in prominent locations where walls aren't available. Combine several menu board mount units to easily create longer menu boards. This ceiling-mounted menu board is suitable for digital signage installations.
This menu board mount includes a ceiling mount assembly, 8 interface brackets, and all the necessary mounting hardware. The interface brackets allow -5° to 20° tilt and can be locked at 0°, 10°, and 20° tilt.
This menu board mount is intended to be used with the CPA330, CPA365, and CPA395 UL-listed CPA Ceiling Plates (sold separately) and FCAX08, FCAX14, and FCAX20 UL-listed Extension Brackets (sold separately). The CMA330, CMA345, and CMA395 Ceiling Plates without swaged collars may also be used.
You can add a padlock (sold separately) to each interface bracket to lock the display to the ceiling mount.
- Screen Array Configuration: screen width x screen height
- Single drop for fast installation
- Micro-adjustable roll of ±3° for perfect leveling
- 360° swivel for optimal viewing angles
- Single horizontal extrusion keeps screens aligned
- Interface brackets with Centris technology allow for easy tilt adjustment from -5 to 20°
- Allows for tool-free installation of displays
- Secures displays with optional padlock security
- Fits four 40 to 55" screens
- An FCAX series extension bracket can be added for larger screens up to 65"
- Compatible with traditional 1.5" NPT and new CPA-pinned ceiling plates and column systems (sold separately)
- UL listed
Chief LCB2X1USpecs
| Compatible with | |
| Used with | |
| Mounting Pattern Compatibility (Universal Version) | |
| Post-Installation Leveling (Roll) | |
| Solution Type | |
| Tilt | |
| Typical Screen Sizes | |
| Load Capacity |
| Box Dimensions (LxWxH) |
