Description

The world’s smallest and lightest 10,000-lumen 4K projector1.



The EB-PQ2010B large venue 4K laser projector features the latest Epson® technology—pioneering an unprecedented level of performance. The world’s smallest and lightest 10,000-lumen 4K projector1, the energy efficient EB-PQ2010B produces captivating visuals in extraordinary detail. Leveraging our 4K Crystal Motion technology, thermo-control panel and double micro-lens array, the EB-PQ2010B delivers stunning 4K resolution on-screen. With a high native contrast ratio and 3-chip 3LCD technology, you will enjoy a realistic display enriched with vibrant colors and deep blacks.

The EB-PQ2010B features a virtually maintenance-free 20,000-hour laser light source and air filter2. The projector provides frame interpolation for fast-moving objects, as well as HDR support3 and scene adaptive gamma correction for lifelike images. The EB-PQ2010B pairs with 10 optional powered lenses (sold separately) to simplify installation and includes a host of premium features for fast setup, such as built-in NFC functionality4, and an optional attachable PixAlign™ camera to streamline multi-projector setups.

  • World's smallest and lightest 10,000-lumen 4K projector1
  • 10,000 lumens of equal white and color brightness5
  • 4K Crystal Motion technology
  • Virtually maintenance-free 20,000-hour laser light source2
  • High native contrast for a realistic display
The world's smallest and lightest 10,000-lumen 4K projector1
produces incredibly bright images with a light, compact and energy efficient design

Incredible color
Epson® 3-chip 3LCD technology produces 10,000 lumens of equal white and color brightness5

4K resolution on-screen
leverages Epson’s 4K Crystal Motion technology, thermo-controlled panel and double micro-lens array for crystal clear image quality that fully realizes 4K resolution (3840 x 2160)

Low-maintenance design

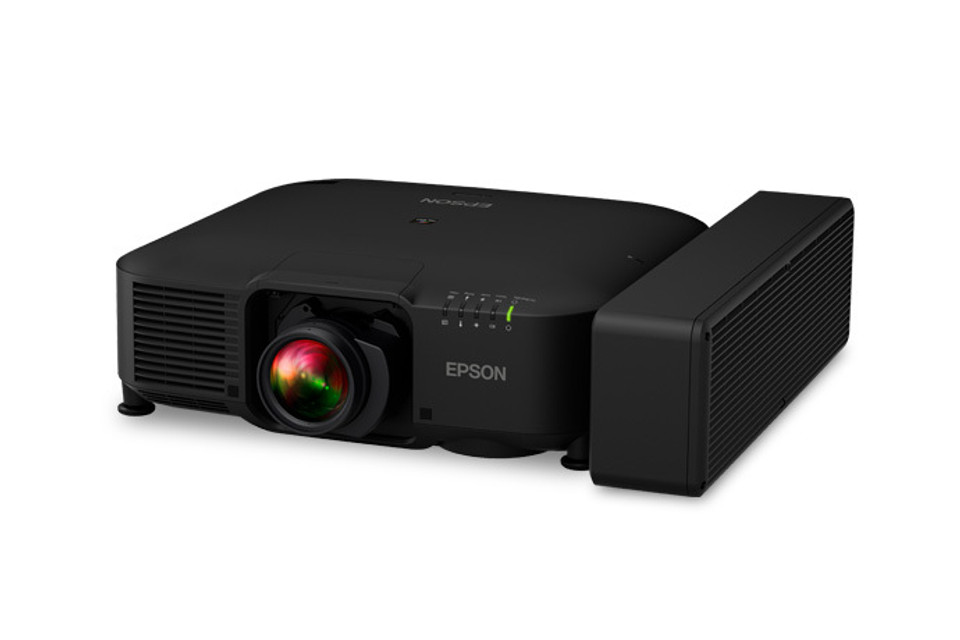

virtually maintenance-free 20,000-hour laser light source and air filter2; optional external air filter is available for high-dust environments

Stunning image quality
high native contrast ratio for deep blacks; 50 percent improvement over the already high contrast ratio found with the current Epson EB-PU Series; frame interpolation for fast moving objects; HDR support3 and scene adaptive gamma correction 

Simplified installation
10 optional powered lenses (sold separately) including ultra short throw .35 throw lens with a unique zero offset design for installation flexibility; projector compatible with existing Epson lens family
  • Enhanced connectivity — HDMI® two in and one out; 12G-SDI in/out for daisy chaining and signal monitoring; features automatic input switching when input signal is disrupted
  • Low latency performance and high frame rate support — high-speed graphics chip and panel drive technology enable high frame rate 4K playback

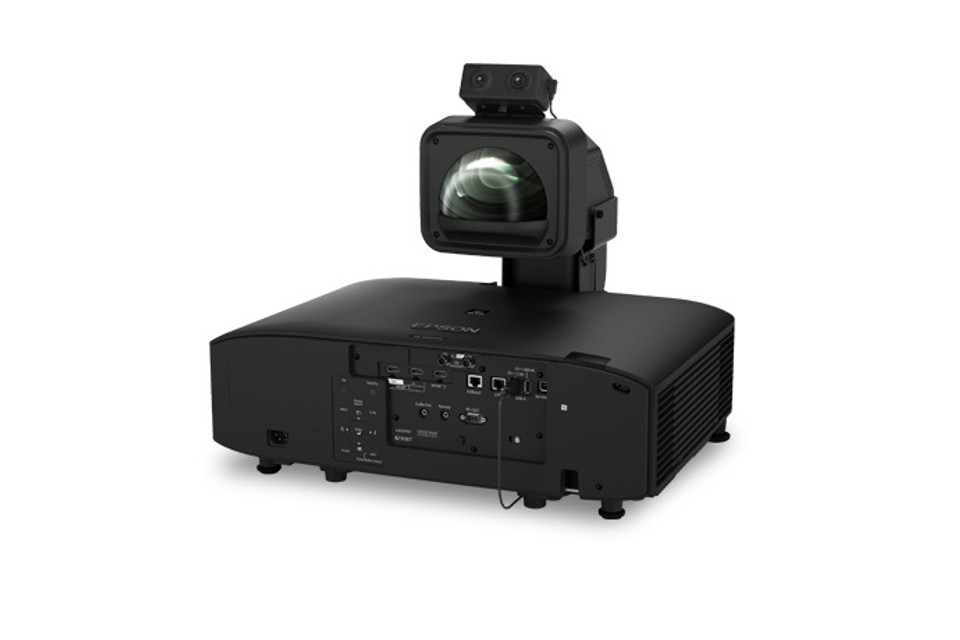

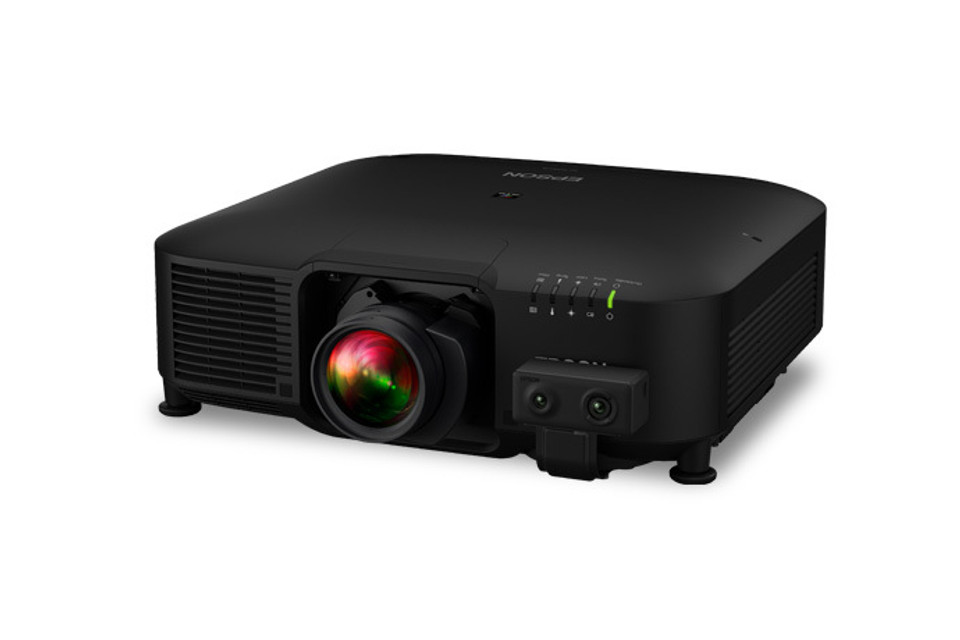

  • Optional attachable PixAlign external camera — access powerful automated tools including edge blending assist6, stacking assist function6, auto color calibration7 and screen matching7 with or without a connected PC and router
  • Efficient setup and management — control multiple projectors in a single, large space with Epson Projector Professional Tool (EPPT app)8; easily manage your installed inventory using Epson Projector Management – Connected (EPM-C)9 from any device with a Web browser
  • NFC function built-in4 — reduce installation time of multiple projectors; read and write setting information using Epson’s mobile app

Eco Features

  • RoHS compliant
  • End-of-life options available10
  • Epson America, Inc. is a SmartWay® Transport Partner11

What's In The Box:

  • EB-PQ2010B projector
  • power cable
  • remote control with 2 batteries
  • cable cover
  • lens connector cap
  • quick reference guide
  • warranty sheet

Specifications
Projection System High-aperture Epson 3-chip 3LCD
technology
Projection Method Front/rear/ceiling mount
Driving Method Poly-Silicon TFT Active Matrix
Pixel Number 2,073,600 pixels (1920 x 1080) x 3 chips
Signal Input Maximum Display Resolution: 4096 x 2160
pixels (resizing display)
Native Resolution 1080p with 4K Crystal Motion
(1920 x 1080 x 4)
Resolution on Screen 4K UHD (3840 x 2160)
Aspect Ratio Supports 4:3, 16:10, 16:9*, 21:9*
* With vertical image shift control within letterbox area.
Pixel Arrangement Cross stripe
Color Brightness2 Color Light Output: 10,000 lumens
White Brightness2 White Light Output: 10,000 lumens
Contrast Ratio Up to 5,000,000:1 (Dynamic Contrast: On)
Brightness Uniformity (Typical) 85%
Color Reproduction Up to 1.07 billion colors
Keystone Correction
Vertical: ±45 degrees;
Horizontal: ±30 degrees
Illumination Technology Laser Phosphor
Light Source Life3
20,000 hours (Normal Mode)
30,000 hours (Extended Mode)


Projection Lens (Standard)
Visit www.epson.com for information on optional lenses.
Standard Lens ELPLM15 (sold separately)
Type Powered shift/focus/zoom
F-Number 2.0 – 2.1
Focal Length 14.8 mm – 17.7 mm
Zoom Ratio Optical Zoom: 1.0 – 1.6
Throw Ratio Range 1.52 – 2.47
Lens Shift Vertical: ±60%; Horizontal: ±18%


Other Features
Operating Temperature 32 ˚F to 122 ˚F (0 ˚C to 50 ˚C)
Power Supply Voltage 100 V – 240 V ±10%, 50/60 Hz AC
Power Consumption
640 W (Normal/Custom)
501 W (Quiet/Extended)
2.0 W Standby (Network Standby)
0.5 W Standby (Energy Saving)
Fan Noise 39 dB (Normal Mode), 29 dB (Eco Mode)
Security Security cable hole, lens lock, Kensington®
lock provision, wireless LAN unit lock


Video I/0
Input Signal Input Video Signal (HDMI and HDBaseT® ports):
480i/480p/576i/576p/720p/1080i/1080p/3840 x 2160/
4096 x 2160
Max PC Graphics: 2560 x 1600/3440 x 1440
Auto Power On Signal Detection on HDMI/Plug-In Detection
(HDMI)
Sleep Mode Yes (with timer)
HDMI CEC Control Yes


Dimensions (W x D x H)
Excluding Feet 21.5" x 17.2" x 6.5"
(545 mm x 436 mm x 164 mm)
Weight 41.4 lb (18.8 kg)


Remote Control
Features Power, Source Search Selection, Lens Shift, Zoom,
Focus, Test Pattern Selection, Shutter, Freeze, ID, Color Mode,
Number, E-Zoom, Volume, Menu, Enter, ESC, Pointer Functions,
Blend Guides, Multi-Projection, Color Tone Adjust and Memory
Operating Angle
Angle Front: Right/Left: 60 to +60; Upper/Lower: +30
to 20 degrees
Angle Rear: Right/Left: 30 to +30; Upper/Lower: +50
to +10 degrees
Operating Distance 98 ft

Eco Features
RoHS compliant
End-of-life options available9
Epson America, Inc. is a SmartWay® Transport Partner10


Limited Warranty and Service
Warranty Three-year limited in the U.S. and Canada
Service Toll-free telephone support, Monday through Friday
Epson ConnectionSM
Pre-Sales Support (U.S. and Canada): 800-463-7766
Website: www.epson.com


Epson PreferredSM Plus Extended Service Plan
3-Year Upgrade to Next-Business-Day Whole Unit
Exchange11 for Years 1-3 EPPPRJPQ3
5-Years Next-Business-Day Whole Unit Exchange11
for Years 1-5 EPPPRJPQE5
Other extended service plans may be available.


What's Included
EB-PQ2010B projector, power cable, remote control with 2
batteries, cable cover, lens connector cap, quick reference guide
and warranty sheet


Ordering Information
EB-PQ2010B V11HB02820
Air Filter (ELPAF46) V13H134A46
External Air Filter (ELPAF63) V13H134AD0
Ultra Short Throw Lens (ELPLX02S) V12H004X0B
Ultra Short Throw Lens − White (ELPLX02WS) V12H004Y0B
Short Throw #1 Zoom Lens (ELPLU03S) V12H004UA3
Short Throw #2 Zoom Lens (ELPLU04) V12H004U04
Wide Throw #1 Zoom Lens (ELPLW05) V12H004W05
Wide Throw #3 Zoom Lens (ELPLW08) V12H004W08
Wide Throw #2 Zoom Lens (ELPLW06) V12H004W06
Middle Throw #2 Zoom Lens (ELPLM15) V12H004M0F
Middle Throw #3 Zoom Lens (ELPLM10) V12H004M0A
Middle Throw #4 Zoom Lens (ELPLM11) V12H004M0B
Long Throw Zoom Lens (ELPLL08) V12H004L08
Rigging Frame (ELPMB59) V12H996A01
Stacking Frame (ELPMB76) V12H006AN0
Mounting Tilt Plate (ELPMB77) V12H006AP0
Wireless LAN Module (ELPAP11) V12H005A02

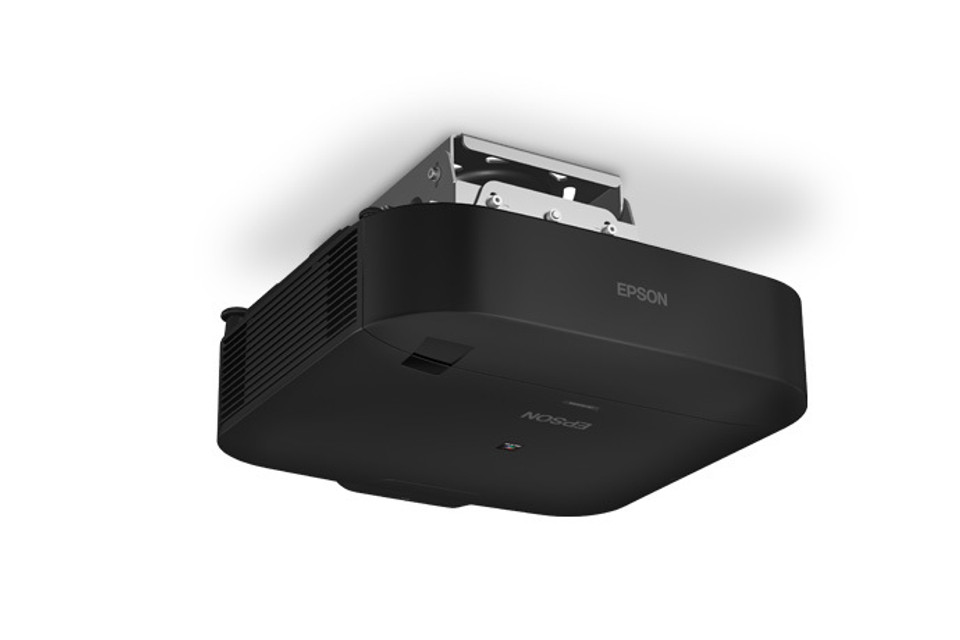

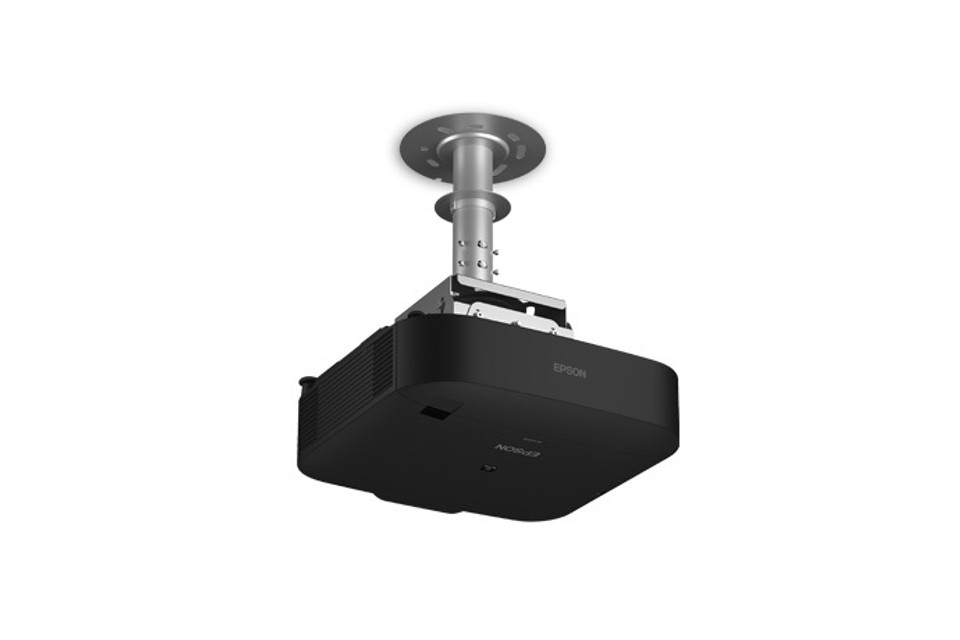

Projector Ceiling Mount (ELPMB67) V12HA54010
Fine Adjust Ceiling Mount (ELPMB

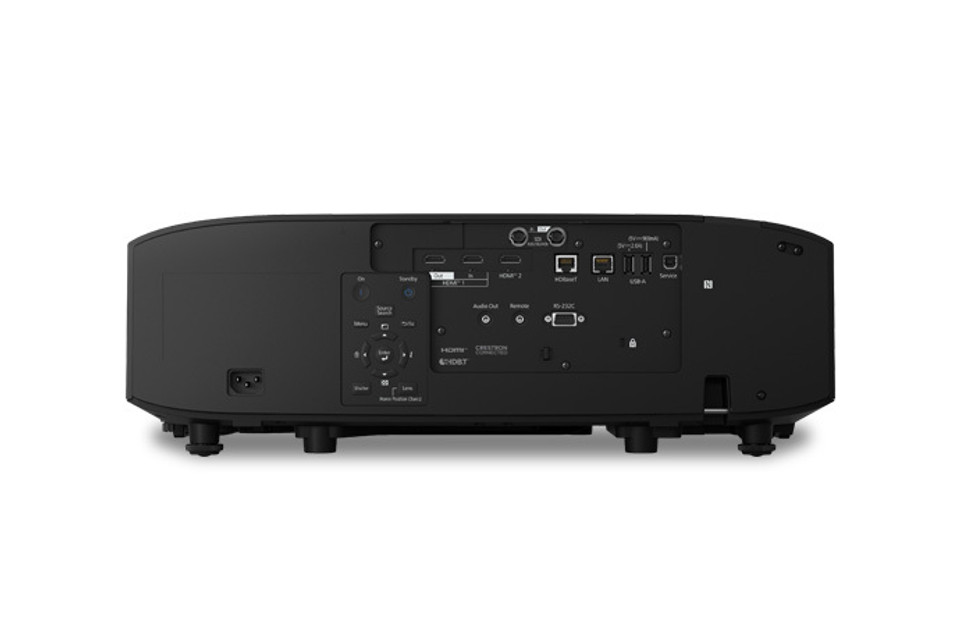

Interfaces
12G-SDI In/Out
HDMI (HDCP 2.3) x 2/HDMI Out x 1
HDBaseT x 1
Variable Audio Out: Mini Stereo x 1
USB Type-A for Wireless LAN (optional)
USB Connector Type-B x 1
Serial: RS-232c x 1
Remote Stereo Mini
Network: RJ-45

View AllClose

Warranty Information

Warranty Three-year limited in the U.S. and Canada Service Toll-free telephone support, Monday through Friday
