Description

Overview

Create pixel perfect imagery with the high-end panel quality of the new fully commercial NEC P Series large format displays with anti-glare 40-point edge to edge PCAP touch pre-installed. By implementing premium features and focusing on creating impressionable digital signage experiences, the P series gives customers an elite display option with its one-of-a-kind wide color gamut commercial panel coupled with the proprietary SpectraView Engine capabilities while also allowing customers the modularity possibilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necesary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity options allow customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The NEC P series boasts 700 cd/m2 brightness which is ideal for a majority of high end digital signage applications in restaurants, command and control, retail, museums and corporate environments when high-end and feature rich displays are necessary to convey important messaging.

Product Specifications

Display

Panel Technology	U-IPS	Viewable Image Size	43 "
Aspect Ratio	16:9	Native Resolution	3840x2160
Supported Resolutions	DIsplayPort: V1.4 - Up to 7680 x 4320 (30Hz - compressed image)HDMI: V2.0 - Up to 4096 x 2160 (60Hz)	Pixel Pitch	0.25 mm
Pixels Per Inch	102 @ native resolution	Backlight Type	LED Edge-lit
Brightness (typical)	700 cd/m²	Contrast Ratio (typical)	≥8,000:1 (Out of the box conditions, local dimming ON)
Viewing Angle (typical)	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10	Response Time (Gray to Gray)	8 ms
Refresh Rate	60Hz	Active Screen Area	47.2 x 26.8 in. / 1209.6 x 680.4mm
Orientation	Landscape/Portrait	Dimming Capability	Local Dimming Capable
Displayable Colors	More than 1.08 billion (10-bit)	Color Temperature (Max) (°K)	15000K
Color Temperature (Min) (°K)	3000K	Gamma (Typical)	Custom adjustment from 0.5 - 4.0 (0.1 increments) through SpectraView Engine, sRGB, L Star, Rec. 1886, HDR-Hybrid Log, HDR-ST2084 (PQ), DICOM, Programmable

Synchronization Range

Horizontal (Analog/Digital)	Digital: 15.0 - 135.0kHz (HDMI), 22.0 - 134.0 (DisplayPort)	Vertical	Digital: 23.0 - 76.0Hz

Input Signal

Video	Digital TMDS / DisplayPort

Signal Compatibility/Connectivity

PC Signal Compatibility	Yes	Macintosh Signal Compatibility	Yes
Video	Digital TMDS / DisplayPort	External Control	LAN In/Out and RS232 In - Full external control capabilities

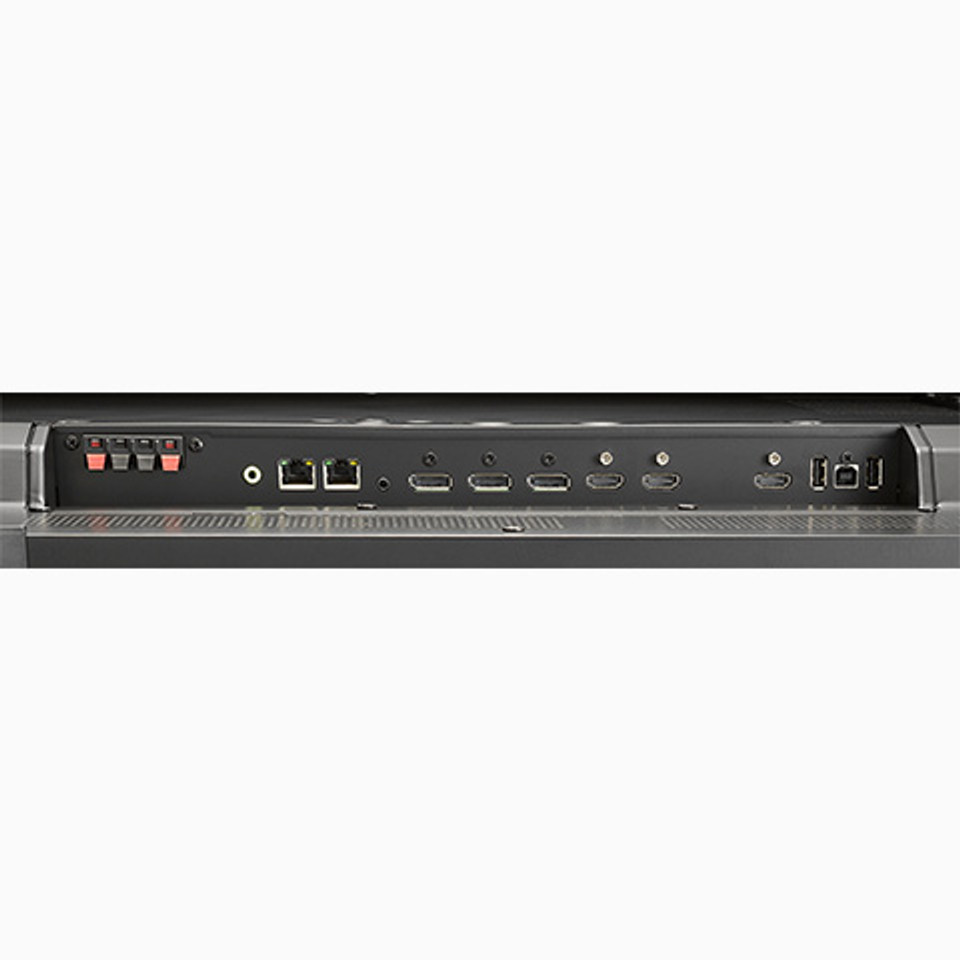

Input Terminals Digital: HDMI (2.0 x 2 with HDCP), DisplayPort (1.4 x 2 with HDCP) Audio: DisplayPort Audio x2, HDMI Audio x2 External Control: RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote) Data: USB-A (Hub/0.5A), USB-B (Control/Software), USB-A (Service/2A)		Output Terminals Digital: HDMI (2.0), DisplayPort (1.4) Audio: 3.5mm Mini-Jack External Control: LAN (100Mb)

Power Consumption (typical)

On	90W	ECO Mode Standby	<0.5W
Network Standby	0.5W	Power Consumption (max)	110W (Max Brightness) / 265W (Brightness Max, SDM Max, Volume Max)
Power Savings Mode	2 W	Power Requirements	2.9A @ 100V, 1.2A @ 240V

Physical Specifications

Bezel Width (Left/Right, Top/Bottom)	0.43 in./0.43 in., 0.43 in./0.61 in. : 11 mm/11 mm, 11 mm/15.6 mm	Dimensions (WxHxD) With stand: 39.17 in x 23.3 x 3.36 Without stand: 38.1 x 22.1 x 2.6 in. / 968.2 x 561 x 67.1 mm Shipping: 44.1 x 27.6 x 8.0 in. / 1120.0 x 700.0 x 203.0mm
Weight Net Weight (without stand): 61.5 lbs.		VESA Hole Configuration	300 x 300mm (M6 x 4-hole)

Environmental Conditions

Operating Humidity	20 - 80%	Operating Altitude	9843 ft. / 3000m
Storage Temperature	-4-140°F / -20-60°C	Storage Humidity	10-80%
Storage Altitude	40,000 ft. / 12,192m

Environmental Compliance

ENERGYSTAR	Energy Star 8.0

Limited Warranty (parts & labor)

5 years Advanced Exchange

Additional Features

AMX Support Automated Email Alert Function ARC Support through HDMI Crestron Roomview Support (FW Update) Display Browser Control Display Wall Calibrator Compatible HDR Support (PQ, HLG, HDR10) Key Guide NaViSet Administrator 2 Compatible OSD Rotation for Portrait Orientation Accepts Intel(R) SDM-S or SDM-L PJ Link Support Power USB Port (5V/2A) Raspberry Pi Compute Module 4 Compatible (MPi4E) Removeable Logo Ornament Real Time Clock Local Dimming TileMatrix Cisco Webex Compatible SNMP Consumer Electronics Control (CEC) Pivot Feature through G-Sensor Dual Diasy Chain Capabilities Multi Picture Mode (Up to 4 Simultaneous Images) SpectraView Engine Technology Wide Color Gamut Panel Integrated Temperature Sensors and Active Cooling Fans Full Input Detect Functionality Programmable Gamma Energy Star 8.0 Color Vision Emulation 6-axis Color Trim Uniformity Adjustment Scheduler Function Off Timer Vacation Switch

Accessories

Optional	Wall Mount (WMK-3298T) IR/Human Sensor Accessory (KT-RC3) Table Top Stand (ST-43M) SDM Tuner (DS1-TM01)

Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
Wide Color Gamut panels allow for a broader range of viewable colors compared to traditional commercial panels

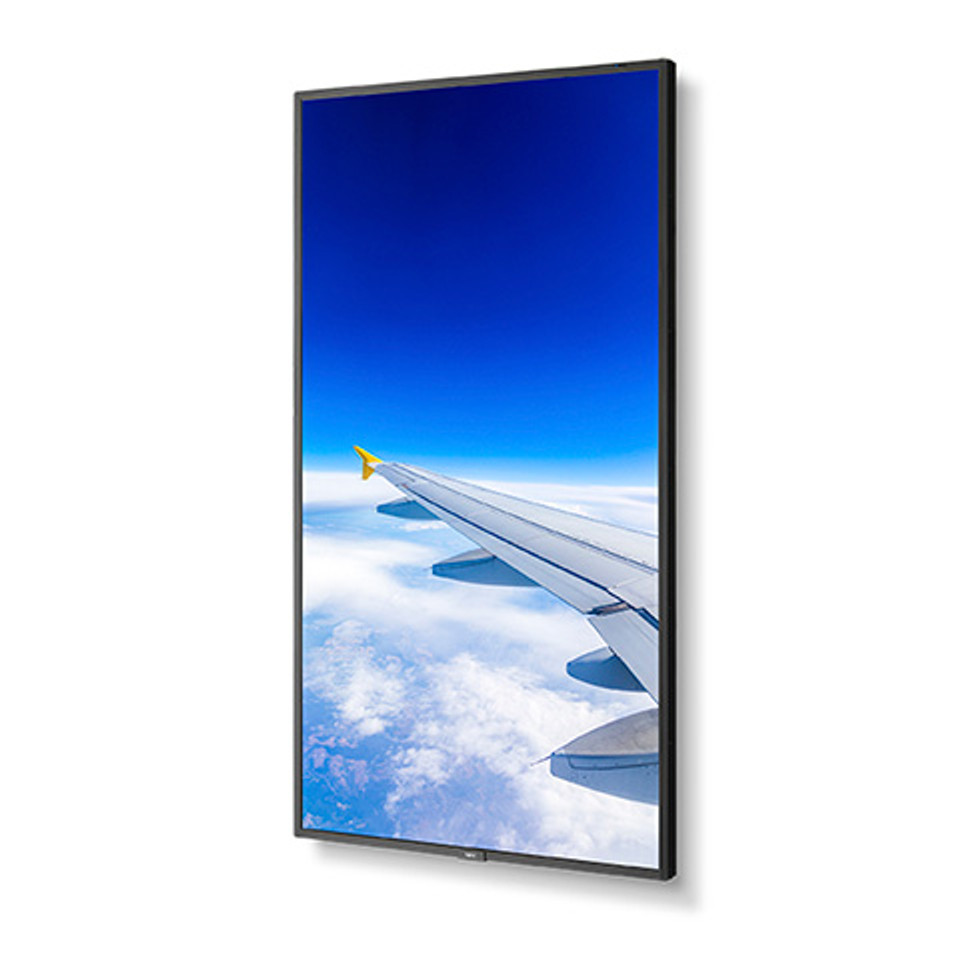

Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
Accepts Intel® Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays
Raspberry Pi Compute Module 4 allows for future proof expansion and NEC Mediaplayer support (MPi4E)
Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
700 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections
Multi Picture Mode allows for the display to show multiple simultaneous images on the screen at once without the use of additional software or hardware
Failover Capabilities full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
Energy Star 8.0 Certified Product
Full 5 year professsional warranty to allow for peace of mind and protection of your investment
