Product Overview
NEC UN492S Overview

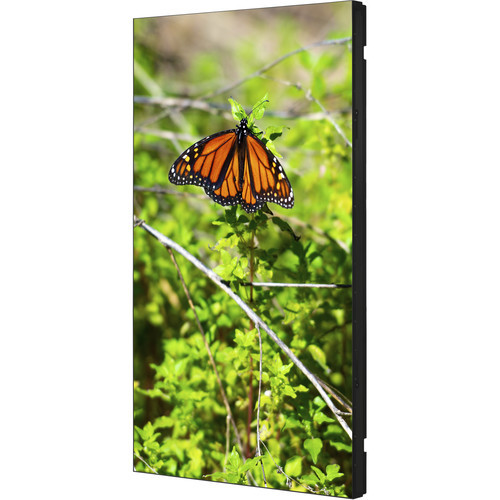

The 49" Ultra-Narrow Bezel Display from NEC features direct LED backlighting and factory calibration for brightness intensity, gamma, uniformity, white point, and RGB. The display includes a full chassis upgrade with a 1.8mm bezel gap, faster processing times, evolved daisy chain performance, and new TileMatrixing capabilities. This display is integrated with the proprietary SpectraView Engine, which allows for color control and increased color calibration capabilities including white copy and self-calibration to an external sensor, and manual CIE chromaticity adjustment for maximum control.
The 49" display includes VGA, DisplayPort, HDMI, 3.5mm mini-jack, LAN, and USB inputs. In addition, there is a DisplayPort and an HDMI output for daisy chaining signals up to 4K UHD.
Key Features
- Full HD (1920 x 1080) Native Resolution
- 60 Hz Refresh Rate
- 1100:1 Typical Contrast Ratio
- HDMI, VGA, USB & DisplayPort Inputs
- Ethernet Connectivity
- 700 cd/m² Maximum Brightness
- Digital-Signage Capable
- LED Direct-Lit Backlighting
- OPS Expansion Slot
- Landscape/Portrait Orientation
Raspberry Pi Compute Module Compatible
Computes power with signage displays for use in retail environments, passenger information, and quick service menu boards
Built-In Expansion Slot
Allows for seamless integration of current and future NEC accessories and third-party components
Round-The-Clock Scheduler
Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption, and saving the time and expense of finding and purchasing a third-party scheduling solution
Carbon Footprint Meter
Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real time
TileMatrix
Allows users to customize a video wall configuration using advanced On Screen Display controls
Additional Features:
- Advanced thermal capabilities
- Ethernet control and communication
- RS-232 control and communication
- Landscape/portrait capable
- Carbon footprint meter
- SpectraView engine capabilities
- Scheduler (with real-time clock and holiday mode)
- Self-calibration to external color sensor
- White copy function
- Screen saver function
- 4K UHD daisy chain capabilities
- Optional human sensor
- Intelligent wireless data (near field communications)
- Raspberry Pi compute module slot
- Expanded daisy chain (DP 1.2/HDMI 2.0)
- 6-axis color adjustment
- Metal rear cabinet
- Handles
- Variable picture modes
- Advanced video settings (noise reduction, adaptive contrast)
- Input labeling
- Backlight adjust
- Frame comp capabilities
- Internal media player via microSD or USB
- HDR emulation
- Aspect ratio control
- LED direct-lit backlighting
- OPS/expansion slot
NEC UN492S Specs
Display
| Screen Size (Diagonal) | 49" |
| Resolution | 1920 x 1080 |
| Panel Type | IPS-Type LCD |
| Brightness | 700 cd/m² (Maximum) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 40.1 x 22.5" / 101.85 x 57.15 cm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1100:1 |
| Response Time | 8 ms (GtG) |
| Refresh Rate | 60 Hz |
| Horizontal Frequency | 15.625 to 91.1 kHz (Analog) 25 to 134 kHz (Digital) |
| Dot Pitch | 0.5 x 0.5 mm |
| Pixels Per Inch (ppi) | 45 ppi |
| Backlighting Technology | Direct LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 1 x 15-Pin VGA Video 1 x DisplayPort 1.1 Audio, Video 1 x DisplayPort 1.2 Audio, Video 1 x HDMI 1.4 Audio, Video 1 x HDMI 2.0 Audio, Video 1 x DVI-D Audio, Video 2 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort – Video 1 x HDMI – Video 1 x 1/8" / 3.5 mm – Audio 2 x Speaker Terminal – Audio |
| USB Ports | 1 x USB 2.0 - Service 1 x USB (Version Unspecified) Type-B 2 x USB (Version Unspecified) |
| Ethernet Ports | 2 |
| Control | RS-232C via DE-9/DB-9 IP via RJ45 IR via 1/8" / 3.5 mm Input |
| Digital Media Slot | microSD (Unspecified Type) |
| Number of OPS/Expansion Slots | 1 |
General
| Display Orientation | Landscape, Portrait |
Electrical
| Power Consumption | Typical: 95.0 W Economy Mode: < 0.5 W Maximum: 165.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 to 3.6 A |
Environmental
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 90% |
| Operating Altitude | 9843' / 3000 m |
| Storage Altitude | 40,000' / 12,192 m |
Physical
| Wall Mounting | 300 x 300 mm |
| Bezel Thickness | 0.9 mm (Bottom/Right/Top/Left) |
| Dimensions | 42.4 x 23.9 x 4.1" / 107.7 x 60.7 x 10.4 cm (without Stand) |
| Weight | 55.9 lb / 25.36 kg (with Stand) |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
