Product Overview

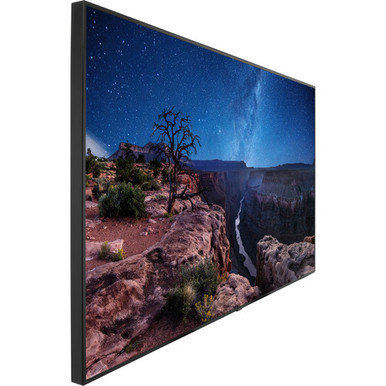

NEC V984Q Overview

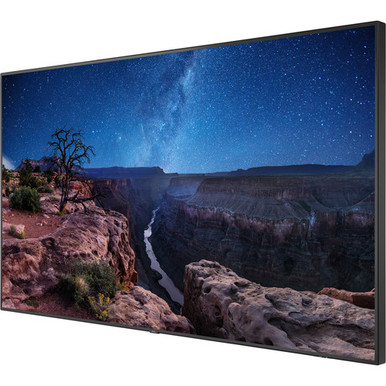

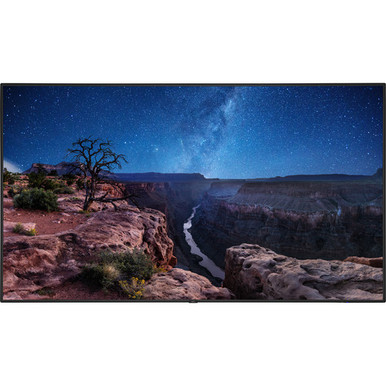

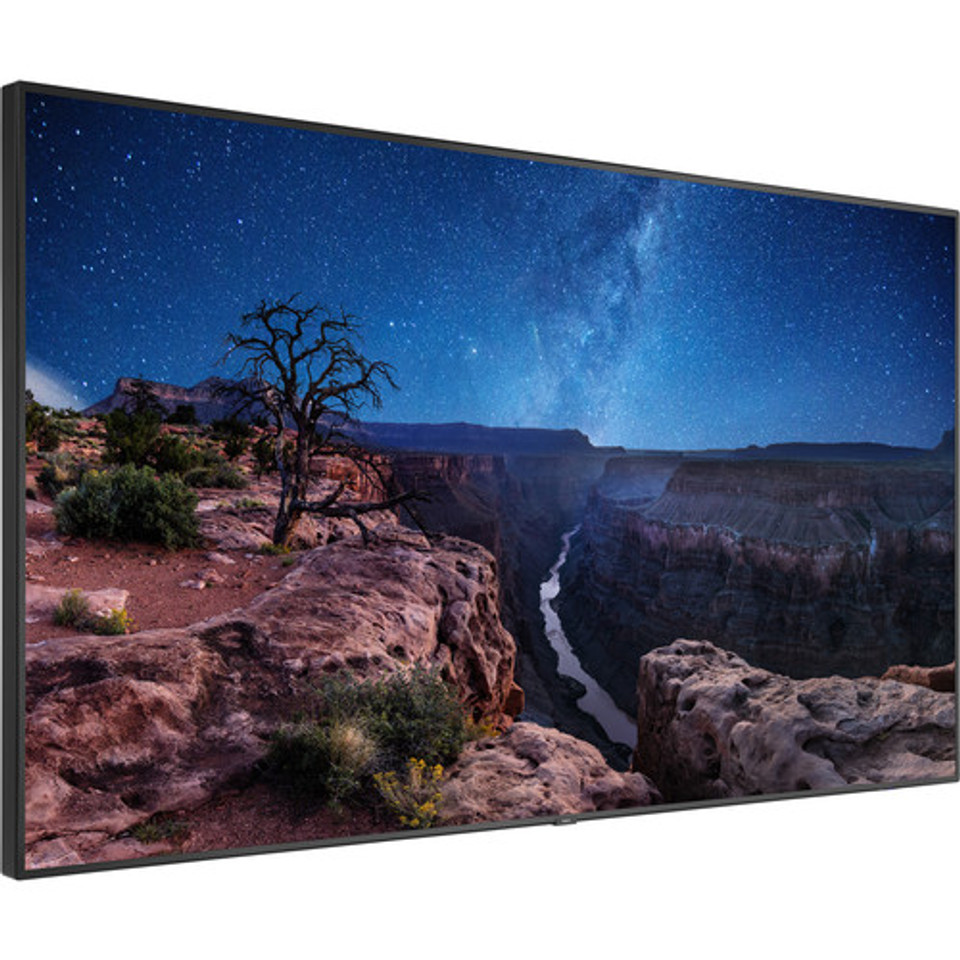

The 98" 4K UHD Display from NEC features clear, detailed imagery for unobtrusive digital signage. It has a slim design that allows for integration into any type of environment and a full metal chassis coupled with real-time temperature sensors and integrated cooling fans that maintain the professional quality necessary for commercial environments.
The 98" display includes three HDMI 2.0 and two DisplayPort 1.2 video inputs. The display also includes expandability options such as the Open Pluggable Specification (OPS) and Raspberry Pi Compute Module slots for source integration directly into the display. The monitor has a 500 cd/m² brightness along with an anti-glare surface that allows for efficient readability when ambient light is present. It is also suitable for 24/7 signage in retail environments and for presentations in corporate or educational institutions.
Key Features
- 4K UHD (3840 x 2160) Resolution
- 60 Hz Refresh Rate
- 1300:1 Contrast Ratio
- HDMI, DisplayPort & USB Inputs
- Ethernet Connectivity
- Dual Built-In 10W Speakers
- Digital-Signage Capable

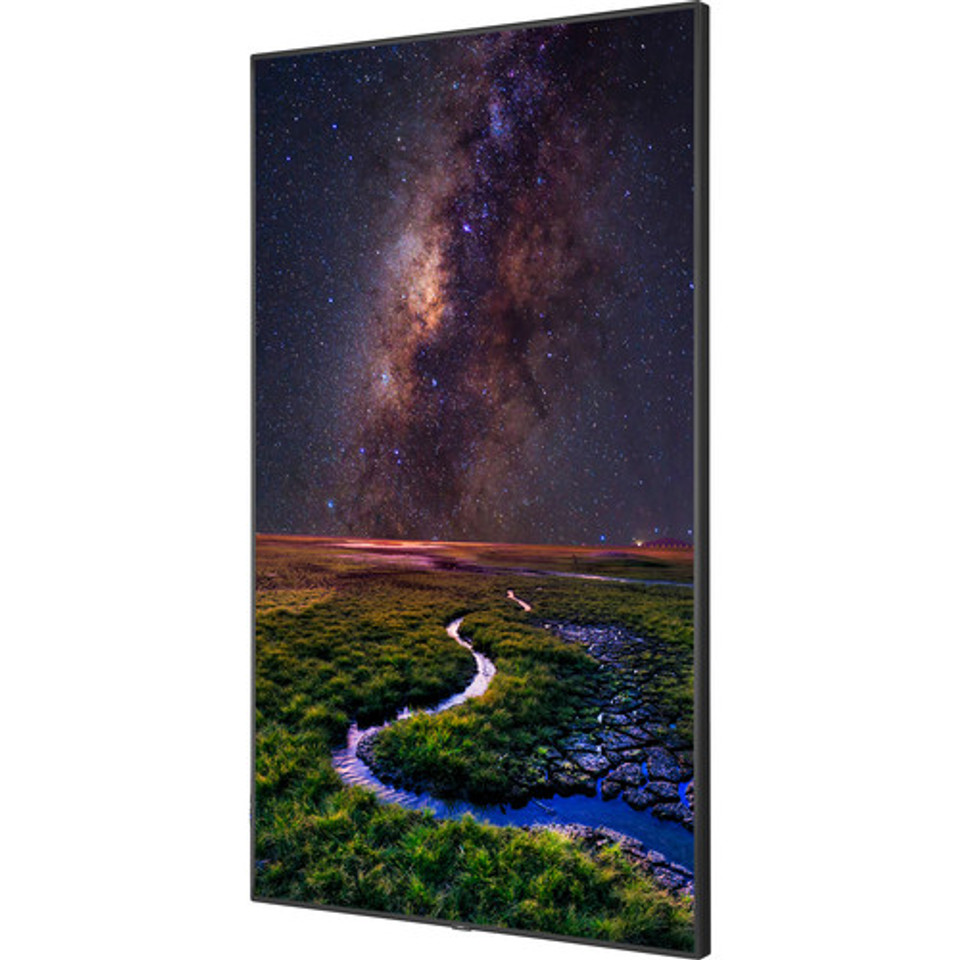

- Landscape/Portrait Orientation
- More than 1.07 Billion Colors
Brightness
500 cd/m² brightness combined with UHD resolution and an anti-reflective screen surface will allow for clear visibility in higher ambient light conditions.
SpectraView Engine
Allows for complete color, intensity, gamma, or uniformity control for imaging performance.
Integrated Media Player
Allows for audio, video, or image playback via USB or SD card.
Industrial-Strength, Premium-Grade Panel
Thermal protection and internal temperature sensors with self-diagnostics and fan-based technology allows for 24/7 operation.
Additional Features
- Localized dimming
- On-screen key guide
- Ethernet control and communication
- USB upstream/downstream
- RS-232 control and communication
- CEC communication
- HDCP 1.4 and 2.2 support through HDMI
- HDCP 1.3 support through DisplayPort
- Firmware via USB/Network
- Image flip
- TileMatrix (10 x 10)
- Carbon footprint meter
- 24/7 scheduler with real time clock
- Holiday settings
- Screen saver function
- Multi-picture mode
- 44% haze panel
- Ambient light sensor
- Screen saver function
- Optional human sensor
- Intelligent wireless data (near field communications)
- Metal rear cabinet
- Carrying handles
- Variable picture modes
- Advanced video settings (noise reduction, adaptive contrast)
- Input labeling
- Backlight adjust
- Aspect ratio control
- Built-in 2 x 10W speakers
- Powered USB
- NaViSet administrator compatible
- Auto ID/IP address control
- Crestron roomview support
- AMX beacon
- PJLink support
- HDMI and DisplayPort cables included
NEC V984Q Specs
Display
| Screen Size (Diagonal) | 98" |
| Resolution | 3840 x 2160 |
| Panel Type | IPS-Type LCD |
| Brightness | 500 cd/m² (Maximum) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 84.99 x 47.81" / 215.87 x 121.44 cm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1300:1 |
| Refresh Rate | 60 Hz |
| Horizontal Frequency | 26 to 135 kHz (Analog) 26 to 135 kHz (Digital) |
| Dot Pitch | 0.56 x 0.56 mm |
| Pixels Per Inch (ppi) | 45 ppi |
Connectivity
| Primary Connectivity Location | Display |

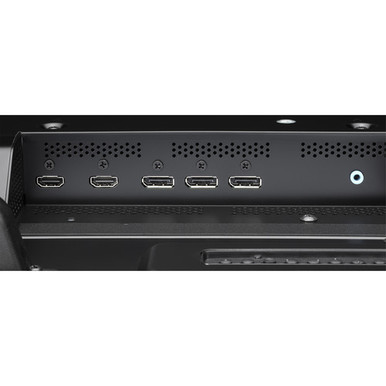

| Input Ports | 3 x HDMI 2.0 Audio, Video 2 x DisplayPort 1.2 Audio, Video 1 x 1/8" / 3.5 mm Audio |

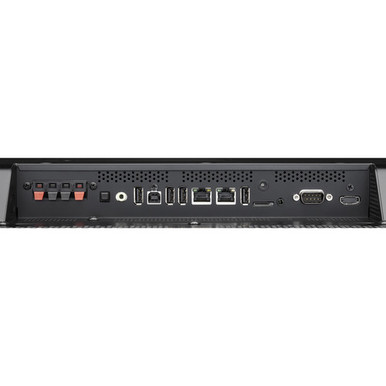

| Output Ports | 1 x DisplayPort – Audio, Video 1 x 1/8" / 3.5 mm – Audio 2 x Speaker Terminal – Audio |
| USB Ports | 1 x USB 2.0 1 x USB (Version Unspecified) - Service 1 x USB (Version Unspecified) Type-B 2 x USB (Version Unspecified) |
| Ethernet Ports | 1 |
| Control | RS-232C via DE-9/DB-9 Input IP via RJ45 IR |
| Digital Media Slot | microSD (Unspecified Type) |
| Number of OPS/Expansion Slots | 2 |
General
| TV Tuner | No |
| Display Orientation | Landscape, Portrait |
| HDCP Support | Yes |
Surface
| Haze Level | 28% |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
Electrical
| Power Consumption | Typical: 380.0 W Network Standby: 2.0 W Economy Mode: 0.5 W Maximum: 650.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3.1 to 7.5 A |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 90% |
| Operating Altitude | 9843' / 3000 m |
| Storage Altitude | 40,000' / 12,192 m |
Physical
| Wall Mounting | 400 x 400 mm 600 x 400 mm |
| Bezel Thickness | 15.9 mm (Bottom/Right/Top/Left) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 86.4 x 49.1 x 3.6" / 219.4 x 124.7 x 9.1 cm (without Stand) |
| Weight | 198.4 lb / 89.99 kg (without Stand) |
Packaging Info
| Package Weight | 239 lb |
| Box Dimensions (LxWxH) | 92.75 x 57.25 x 13" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
