Product Overview
NEC NP-P452H Overview
Brighten up your presentations with the NEC NP-P452H 4500-Lumen Full HD DLP Projector. Whether in a boardroom or a classroom, its 4500-lumen brightness, combined with the 6000:1 dynamic contrast ratio, virtually guarantee a viewable image even in areas where you can't control the ambient light. For a more immersive experience, you can watch 3D content with separately-sold DLP Link 3D glasses.

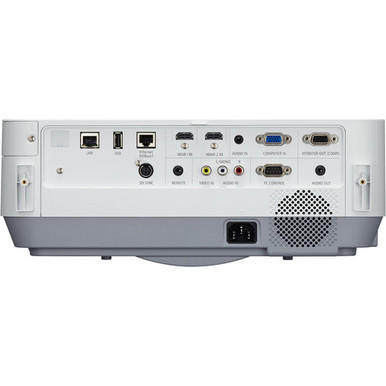

The NP-M283X offers a throw ratio of 1.24 to 2.1:1 with 1.7x zoom. Its connections include HDBaseT, VGA, composite video via RCA, two HDMI, and an RCA stereo and 3.5mm mini input for audio. It also features 15-pin VGA video and 3.5mm mini audio outputs. Images can be shown via USB from an external drive for added versatility. The projector has a 20W speaker built in, and includes a VGA cable and remote control.
- Dual HDMI inputs with HDCP ensures quick switching between presentations
- 6000:1 dynamic contrast ratio enhances detail
- Built-in HDBaseT enables simplified installations with a single cable for video, audio, and control signals
- LAN connection for control and asset management over the network
- 5000-hour filter design to reduce cleaning frequency, decreasing total cost of ownership
- Variable audio-out allows the remote control to adjust speaker volume
- Eco-friendly features and minimal maintenance meet the demands for integration applications such as higher education and corporate
- Built-in 20W speakers eliminate the need for an external speaker setup
- Horizontal and vertical lens shift enables flexible projector placement
- Image Express Utility (IEU) Lite provides audio and video transmission from a computer to the projector over the network
- Compatible with NaViSet Administrator 2, a free software solution designed to ease administration and management of larger display device installations
Key Features
- Brightness of 4500 Lumens
- Full HD (1920 x 1080) Native Resolution
- 1.24 to 2.1:1 Throw Ratio
- VGA, HDBaseT, RCA Composite, 2x HDMI-In
- VGA Output for Loop-Through
- Analog Audio Input and Output
- 20-Watt Speaker
- Ethernet, USB, and RS-232 Controllable
- IR Remote Included
NEC NP-P452H Specs
Image Display
| Display System | -Chip 0.65" DMD DLP |
| Native Chip Resolution | 1920 x 1080 (Full HD) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | 4500 Lumens |
| Aspect Ratio | Native: 16:9 |
| DLP Link 3D | Yes |
| Supported 3D Formats | Frame Packing (up to 1080p) Side by Side (up to 1080i) Top Bottom (up to 1080p) Frame Sequential |
| Scan | Horizontal: 24 to 153 kHz or 15 kHz Vertical: 24 to 120 Hz |
Lens
| Focus | Manual |
| Lens | f/2.0 (f = 18.2 - 31.1 mm) |
| Lens Shift | Vertical: + 0.59% Horizontal: ± 0.28% |
| Throw Distance | 2.6 - 46.6' / 0.792 - 14.204 m |
| Throw Ratio | 1.24 to 2.1:1 |
| Projection Size | 30 - 300" / 76.20 - 762.00 cm |
Features
| Keystone Correction | -Horizontal: ± 25° -Vertical: ± 30° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Closed Captioning | Yes |
General
| Lamp Power | 335 W |
| Expected Lamp Life | Low Brightness: 5000 Hours |
| Fan Noise | Medium Brightness: 39 dB Low Brightness: 31 dB |
| Security | Cable Lock Slot Password Protection Security Bar |
| Supported Languages | Arabic Bulgarian Croatian Czech Danish Dutch English Finnish French German Greek Hindi Hungarian Indonesian Italian Japanese Korean Norwegian Polish Portuguese Romanian Russian Simplified Chinese Spanish Swedish Thai Traditional Chinese Turkish Vietnamese |
| Power Consumption | Medium Brightness: 426 W Low Brightness: 288 W Standby Mode (Lamp Off): 2.7 W Standby Mode (Lamp Off): 0.26 W |
| Dimensions (W x H x D) | 14.3 x 5.1 x 11.9" / 36.3 x 13.0 x 30.2 cm Not including protrusion 14.3 x 5.5 x 12.1" / 36.3 x 14.0 x 30.7 cm Including protrusions |
| Weight (LB) | 11.5 |
Packaging Info
| Package Weight | 15.4 lb |
| Box Dimensions (LxWxH) | 17.5 x 15 x 9" |
