Product Overview
NEC E498 Overview

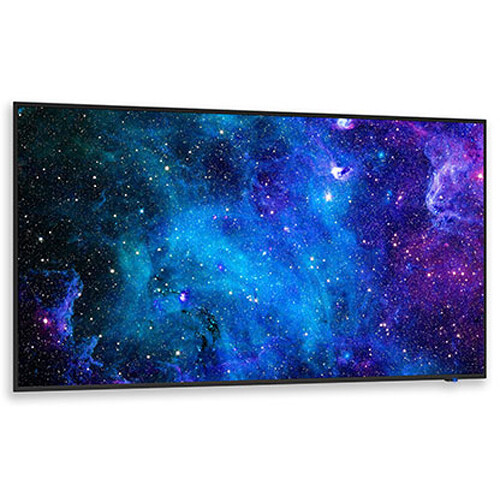

Get your clients' attention by display your content in 4K UHD resolution with the NEC E498 49" Class 4K UHD Commercial LED TV. It features a 48.5" LED backlit LCD panel with a 3840 x 2160 native resolution for viewing detailed 4K UHD images. It outputs up to 350 cd/m² of peak brightness with an 8000:1 typical contrast ratio to showcase boht light and dark on-screen images.
This display is equipped with VGA and three HDMI inputs for connecting a variety of video sources, as well as a USB port for multimedia playback. Dual built-in speakers allow audio to accompany your video messaging.
- Integrated USB media player allows for playback of video, audio, and picture files
- Additional USB port for 5V/3A power delivery
- 4K UHD panel (3840 x 2160) and high contrast ratio with local dimming provides stunning imagery
- Built-in tuner allows for high-definition broadcast capabilities
- Integrated LAN port for network control over IP
- Supports audio/video mute setting, and can also be muted individually
- External power supply via USB Type-C (5V/3A max) for direct connection to external IoT devices such as Raspberry Pi using a USB Type-C cable
- LED backlighting enables eco-friendly digital signage
- Simple 24-hour scheduler feature allows for programmable on/off times
- Multiple HDMI ports enhance best-in-class connectivity
- Internal down-firing stereo speakers enhance the experience with superior sound
- Ability to wake the display simply by plugging HDMI or VGA into the unit
- The display can be tilted 10° back and forth to install it at your desired angle
- Embedded Joystick key for an intuitive operation by showing key guidance on screen
- ENERGY STAR 8.0
- NaViSet Administrator 2 compatible
- Built-in closed captioning (TTS)
- V-Chip functionality
- HDR Gamma
- IP addressable
- Crestron Connected compatible
Key Features
- 4K UHD (3840 x 2160) Native Resolution
- 8000:1 Typical Contrast Ratio

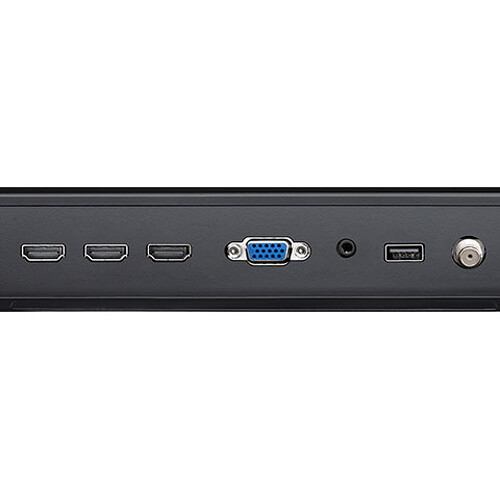

- VGA, 3 x HDMI-In

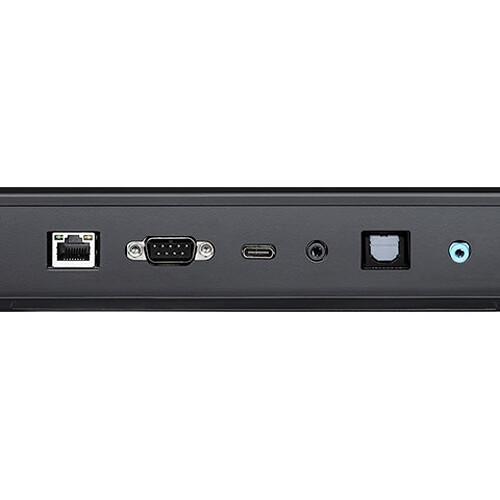

- Built-In Ethernet Connectivity
- USB Multimedia Playback
- Compatible with Popular Control Systems
- Dual Built-In Speakers
- Digital Signage Capable
NEC E498 Specs
Display
| Screen Size (Diagonal) | 48.5" |
| Resolution | 3840 x 2160 |
| Panel Type | LCD |
| Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
| Brightness | 320 cd/m² (Typical) 350 cd/m² (Maximum) |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 8000:1 |
| Backlighting Technology | Direct LED |
Connectivity
| Primary Connectivity Location | Display |
| Input Ports | 3 x HDMI 2.0 Audio, Video 1 x RF Antenna Audio, Video 1 x 15-Pin VGA Video 1 x 1/8" / 3.5 mm Audio, Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x TOSLINK Optical – Audio 1 x 1/8" / 3.5 mm – Headphone |
| USB Ports | 1 x USB (Version Unspecified) Type-A - Audio/Photo/Video 1 x USB (Version Unspecified) Type-C - Power |
| Ethernet Ports | 1 |
| Control | RS-232C via DE-9/DB-9 |
General
| TV Tuner | Yes - ATSC, Clear QAM |
| Display Orientation | Landscape |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
Convenience
| Analog Video Formats | NTSC |
| Supported Video File Types | H.263, H.264/AVC, H.265/HEVC, MP4, MPEG, MPEG2, MPEG4, MPG, TS, WMV, WMV3 |
| Supported Audio File Types | MP3 |
| Supported Photo File Types | JPE, JPEG, JPG |
| Tilt Adjustment | -10 to 10° |
Electrical
| Power Consumption | Maximum: 180.0 W Typical: 109.0 W Standby: 0.5 W Network Standby: 2.0 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 0.8 to 2.1 A |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 80% |
| Operating Altitude | 0.0 to 9842' / 0 to 3000 m |
| Certifications | ENERGY STAR, as per Manufacturer |
Physical
| Wall Mounting | 200 x 400 mm |
| IR Sensor | Yes |
| Bezel Thickness | 12.5 mm (Right/Top/Left) 13.9 mm (Bottom) |
| Dimensions | 43.4 x 25.0 x 2.8" / 1102.8 x 634.4 x 71.6 mm |
| Weight | 26.7 lb / 12.1 kg |
Packaging Info
| Package Weight | 36.8 lb |
| Box Dimensions (LxWxH) | 47.25 x 29 x 7" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
