Product Overview
This open frame, desktop, or wall mountable 15.6’’ LCD monitor provides OEMs and systems integrators with a unique option to deliver a cost-effective touch solution. It's ideal for any industrial, retail, or commercial use. The HDMI computer display offers an astonishing array of functions, including both analog and digital interfaces. This open-frame LCD monitor is sure to suit all prospective demands with its multilingual on-screen display (OSD) and multiple mounting choices, including VESA standard and front mount brackets.
- Bezel Width (Top): 0.47"
- Bezel Width (Bottom): 0.61"
- Bezel Width (Left): 0.49"
- Bezel Width (Right): 0.49"
- Processor Manufacturer: Intel
- Screen Size: 49"
- Display Screen Type: LCD
- High Dynamic Range (HDR): Yes
- High Dynamic Range (HDR) Type: HLG
- High Dynamic Range (HDR) Type: HDR10
- High Dynamic Range (HDR) Type: PQ
- Display Resolution: 3840 x 2160
- Backlight Technology: Edge LED
- Scan Format: 2160p
- Dynamic Contrast Ratio: 8,000:1
- Brightness: 500 Nit
- Ethernet: Yes
- USB: Yes
- HDMI: Yes
SPECIFICATIONS
General Information | |
| Manufacturer | Sharp NEC Display Solutions Ltd. |
| Manufacturer Part Number | M491-MPI4E |
| Brand Name | Sharp NEC Display |

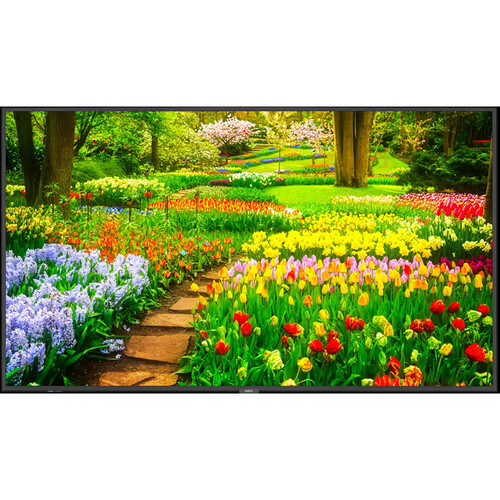

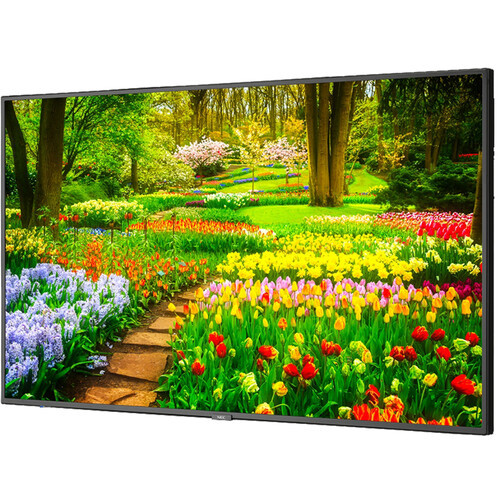

| Product Name | MultiSync M491-MPI4E Digital Signage Display/Appliance |
| Product Type | Digital Signage Display/Appliance |
Technical Information | |
| Bezel Width (Bottom) | 0.61" |
| Bezel Width (Top) | 0.47" |
| Bezel Width (Left) | 0.49" |
| Bezel Width (Right) | 0.49" |
Processor & Chipset | |
| Processor Manufacturer | Intel |
Display & Graphics | |
| Screen Size | 49" |
| Display Screen Type | LCD |
| Display Resolution | 3840 x 2160 |
| High Dynamic Range (HDR) | Yes |
| High Dynamic Range (HDR) Type | HLG |
|
| HDR10 |
|
| PQ |
| Pixel Pitch | 11 mil |
| Backlight Technology | Edge LED |
Video | |
| Scan Format | 2160p |
| Dynamic Contrast Ratio | 8,000:1 |
| Color Depth | 8-bit+FRC |
| Brightness | 500 Nit |
Network & Communication | |
| Ethernet | Yes |
Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Serial | Yes |
| Number of HDMI Inputs | 2 |
Power Description | |
| Input Voltage | 120 V AC |
|
| 230 V AC |
Physical Characteristics | |
| VESA Mount Standard | 300 x 300 |
| Mount Type | Wall Mountable |
|
| Table Mount |
Miscellaneous | |
| Package Contents |
|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | ENERGY STAR 8.0 |
Warranty | |
| Limited Warranty | 3 Year |
