Product Overview
- Stylish and sleek design allows for easy and unobtrusive integration into any environment
- 500 cd/m² brightness combined with UHD resolution and new anti-reflective screen surface will capture the attention of the audience while allowing for clear visibility in higher ambient light conditions
- Future proof modular expansion options including the ability to integrate Open Pluggable Specification (OPS) or a Raspberry Pi Compute Modules seamlessly into the display
- SpectraView Engine allows for complete color, intensity, gamma or uniformity control for the ultimate imaging performance
- Integrated Media Player allows for audio, video or image playback via USB or SD card
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allows for hassle-free 24/7 operation
- Full 3 year commercial warranty to allow for peace of mind and protection of this investment
| Contrast Ratio | 1200:1 | |||||||
|---|---|---|---|---|---|---|---|---|
| Viewing Angle | Hor 178°, Ver 178° | |||||||
| Response Time | 8ms | |||||||
| Screen Size (Diagonal) | 86" | |||||||

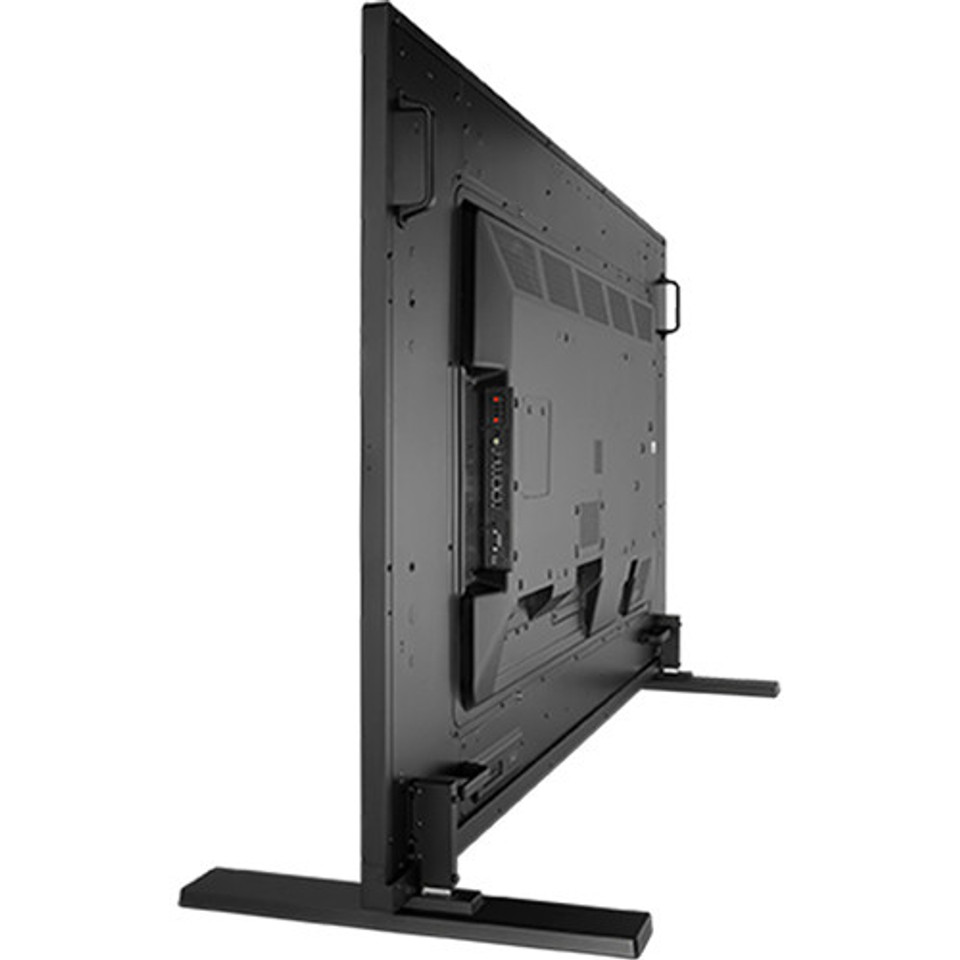

| Dimensions w/ Stand (W x H x D) | 75.91 x 44.74 x 23.9 in | |||||||
| Dimension w/o Stand (WxHxD) | 75.91 x 43.28 x 2.93 in | |||||||

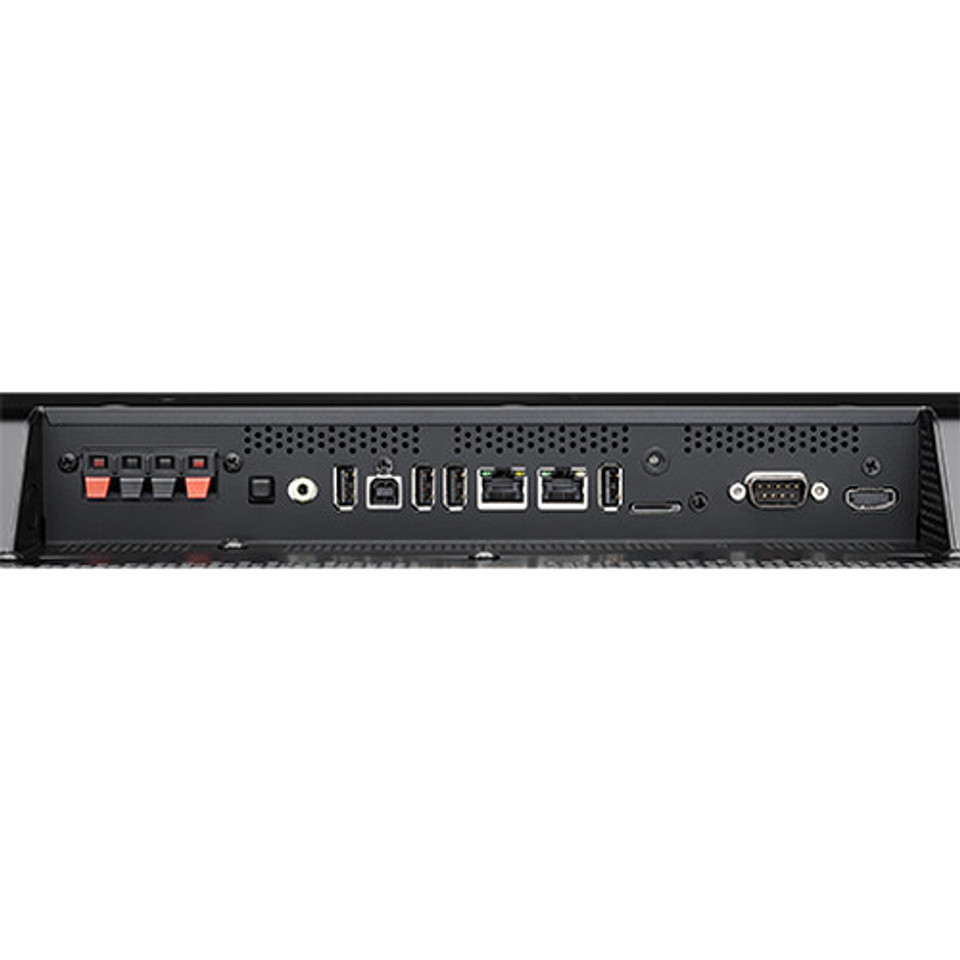

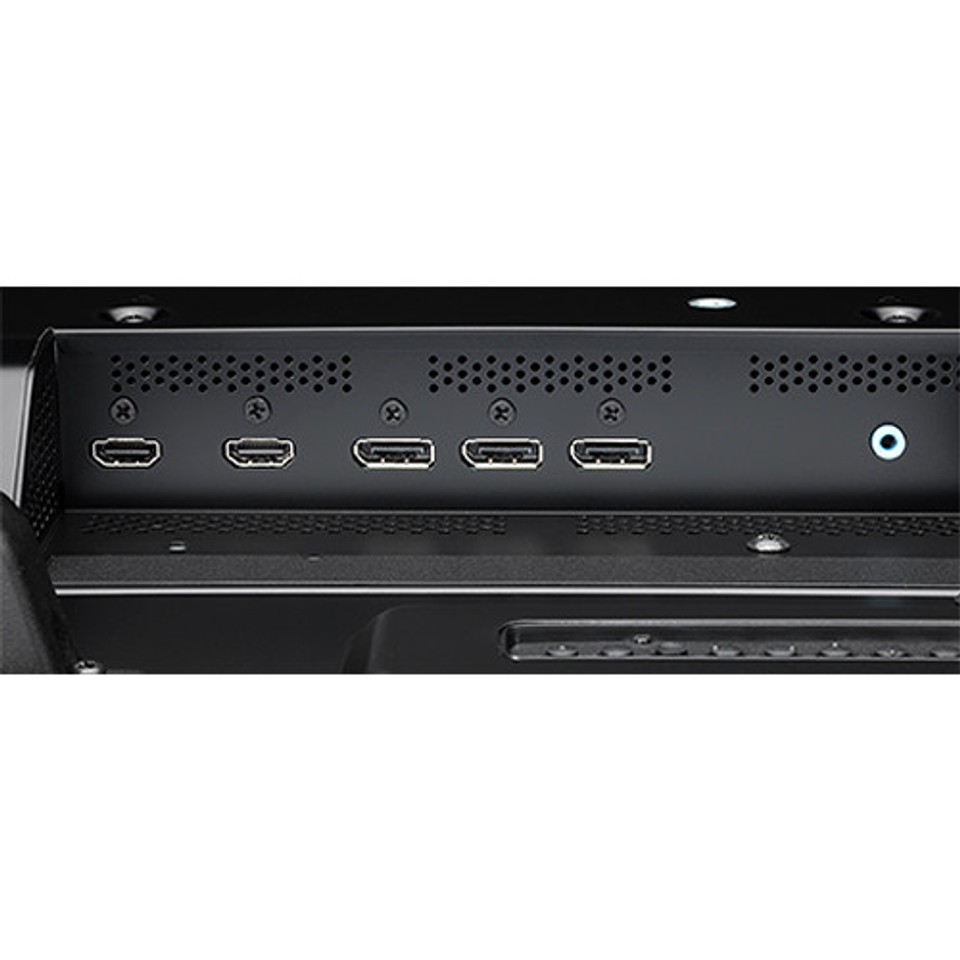

| Inputs | HDMI 2.0 (3), DisplayPort 1.2 (2), Audio Mini-Jack, DisplayPort Audio, HDMI Audio, RS-232C, LAN, IR Remote, microSD (Media Player), USB 2.0 (Media Player, USB (Service), USB Type-B (Upstream), USB x 2 (Both for Compute Module, 1 x 5V/2A Powered) | |||||||
| Outputs | DisplayPort (Outputs DisplayPort1 or Option), Audio Mini-Jack, External Speaker Out (2), DisplayPort Audio, LAN | |||||||
| Weight without Stand | 127.4 lbs | |||||||
| Weight with Stand | 137.6 lbs | |||||||
| Monitor Configuration | General Use Monitor | |||||||
| Brightness (cd/m) | 500 | |||||||
| Native Resolution | 3840 x 2160 | |||||||
| Display orientation | Landscape & Portrait | |||||||
| Duty Cycle (Hours of Use) | 24/7 | |||||||
| WiFi | No | |||||||
| Refresh rate | 60Hz | |||||||
Warranty Information
1 Year Parts & Labor Manufacture Warranty
