Product Overview
NEC NP-PX1005QL-B Overview

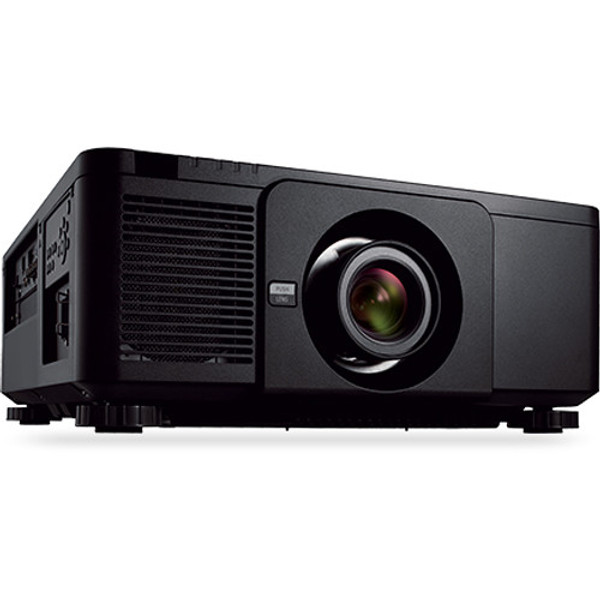

The (Black) 4K UHD Installation Laser Projector from NEC features 10,000-lumen output and a 10,000:1 contrast ratio. The projector's WQXGA 3840x2160 native resolution enables you to display detailed video, pictures, and data.
The laser projector includes two HDMI inputs and two DisplayPorts with HDCP, a HDBaseT, and a Quad 3G SDI inputs. The projector can be controlled via the included remote control, HDBaseT, and RS-232 ports.
Key Features
- Brightness of 10,000 Lumens
- WQXGA (3840 x 2160) Native Resolution
- HDMI, DisplayPort & 3G-SDI Inputs
- Ethernet Connectivity
- HDBaseT Input & RS-232 Control
- IR Remote Control
Wired Network Connection
Integrated RJ45 LAN connection (10/100 base-T capability)
Tilt-Free Installation
Allows the projector to be rotated (360°) in order to point up or down depending on installation.
Stacking Capabilities
Allows two projectors to boost an image's brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light.
Power Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image.
PIP/POP/Side-by-Side
Picture-in-picture (PIP) allows for a second frame within the screen area. Picture-on-picture (POP) surrounds the standard frame with multiple frames. Side-by-side places two sources adjacent to one another.
Open Pluggable Specification (OPS)
The first industry-wide standardization in option slots that allows for easier installation, use and maintenance of digital signage.
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.
Edge Blending
Blend multiple projectors together to create not standard images.
Dual HDMI Inputs (with HDCP)
Allows quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers, and computers.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Cornerstone Correction
Allows for horizontal, vertical, and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
AutoSense
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
BrilliantColor
Advanced video processing from Texas Instruments delivers exceptional picture management control for both progressive and interlaced sources, while making images more vibrant, colors more realistic and blacks richer with detail.
8 Bayonet-Style Lenses
Allows for quick and easy lens exchange. Optional lenses enable the user to determine the appropriate lens to cover projection distances between 1.5 and 179.5 feet.
Additional Features:
- Cornerstone
- Geometric correction
- Auto power-on
- ECO mode technology
- Virtual Remote
- Sleep timer
- Quick power-off
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
NEC NP-PX1005QL-B Specs
Image Display
| Display System | 0.66" DMD DLP |
| Native Chip Resolution | 3840 x 2160 (WQXGA) |
| Maximum Brightness | 10,000 Lumens |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 10,000:1 |
Features
| Keystone Correction | Vertical: ± 40° Horizontal: ± 40° |
| Supported HDR Input Formats | Yes |
| Multi-Input Support (PIP/PBP) | Picture-in-Picture (PIP) |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Projection Tilt Option | Yes |
Input/Output Connectors

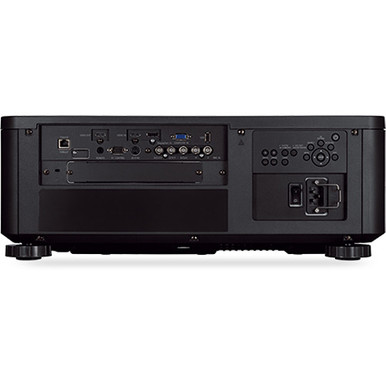

| Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input 2 x DisplayPort Audio, Video 1 x HDBaseT (RJ45) Audio, Control, Video 4 x 3G-SDI (BNC) Video 1 x RS-232 (DE-9/DB-9) Control |
| Number of Expansion Slots | 1 |
Hardware
| Wireless LAN / Wi-Fi | Yes, Built-in |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Full Brightness: 20,000 Hours |
| Fan Noise | Full Brightness: 43 dB Low Brightness: 39 dB |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5.2 to 11.6 A |
| Power Consumption | Full Brightness: < 1220 W |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -14 to 122°F / -25 to 50°C |
| Dimensions (W x H x D) | 19.7 x 8.5 x 22.9" / 50.0 x 21.6 x 58.2 cm |
| Weight | 63.9 lb / 28.98 kg |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
