Product Overview
NEC NP-P502WL-2 Overview
Brighten up your presentations with the NEC NP-P502WL-2 5000-Lumen WXGA DLP Projector. Whether in a boardroom or a classroom, its 5000-lumen brightness, combined with the 15,000:1 dynamic contrast ratio, will help provide a viewable image even in areas where you can't control the ambient light.

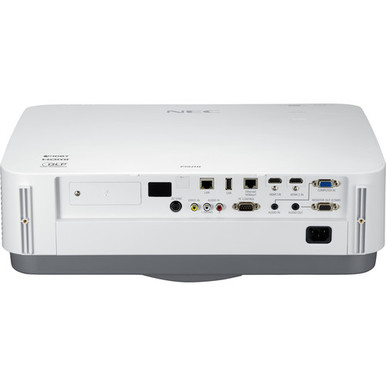

The NP-P502WL-2 offers a throw ratio of 1.3 to 2.2:1, with up to 1.7x zoom for versatile installation options. Its connections include HDBaseT, VGA, composite video via RCA, and two HDMI, plus an RCA stereo and 3.5mm input for audio. It also features 15-pin VGA video and 3.5mm audio outputs. JPG images can be shown via USB from an external drive for added versatility. The projector has a 20W speaker built in, and includes a remote control.
Key Features
- Brightness of 5000 Lumens
- WXGA (1280 x 800) Native Resolution
- 1.3 to 2.2:1 Throw Ratio
- HDBaseT, VGA, RCA Composite, 2 x HDMI-In
- VGA Output for Loop-Through
- Analog Audio Input and Output
- 20-Watt Speaker
- Ethernet, USB, VGA, RS-232 Controllable
- IR Remote Included
Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations. Portrait Mode allows the projector to sit on its side to create a 10:16 portrait image.
Advanced AccuBlend
Helps ensure detailed images when non-native resolution sources are connected to the projector.
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
AutoSense
Syncs the projector with most computer signals, and features one-touch image optimization.
BrilliantColor
Designed to provide enhanced picture management control for both progressive and interlaced sources, helping to make images more vibrant, colors more realistic, and blacks richer with detail.
Built-In Closed Captioning
Enables decoding and display of text information from a video.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) and point up or down, depending on the installation requirements.
Built-In Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.
USB Viewer
Permits playback of presentations or display images stored as JPG files from a USB flash drive without using a computer.
Dual HDMI Inputs with HDCP
Enables quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers, and computers.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
Virtual Remote
Used over the VGA cable to control the projector directly from a computer, without the need for additional control cables.
Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100BASE-T capability).
Wireless Imaging Utility
Allows users to send an image from an iPad directly to the projector.
Built-In 20W Speaker
The built-in 20W speaker is designed to eliminate the need for an external speaker system.
Crestron RoomView Compatibility
The projector is compatible with Crestron RoomView software, which is designed to provide unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Remote Diagnostics
Enables the user to monitor and adjust the projector from a remote location.
Designed for Extended Use
For use in applications up to and including 24/7 operation.
Image Express Utility Lite with Audio Transfer
Designed to provide wired and wireless data transmission via peer-to-peer or over the network.
Auto Power On
Powers on the projector as soon as it is plugged into a power outlet.
Power Management
Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. It also enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
ECO Mode
Designed to extend lamp life, lower audible noise, and reduce total cost of ownership.
Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode. A green ECO Mode button on the remote control makes the switch easy.
Optional Wireless LAN
Allows you to transmit images from a computer wirelessly to the projector, eliminating the need for cables.
Additional Features
- High brightness designed to enhance the always-on capabilities of laser projection
- Suitable for unique applications, such as digital signage
- Lamp-less operation helps reduce TCO
- Eco-friendly features, minimal maintenance, and cost savings mean laser projectors are suitable for demanding integration applications, such as higher education and corporate
- Built-in HDBaseT enables simplified installations with a single cable for video, audio, and control signals, with a LAN connection for control and asset management over the network.
- 15,000:1 contrast ratio helps provide detail in dark areas of images
- IEU Lite (Image Express Utility Lite) for audio and video transmission from a computer to the projector over the network
- NaViSet Administrator 2 is a free software solution designed to ease administration and management of larger display device installations
- Sleep timer
NEC NP-P502WL-2 Specs
Image Display
| Display System | 0.66" DMD DLP |
| Native Chip Resolution | 1280 x 800 (WXGA) |
| Supported Resolutions | Maximum: WUXGA - 1920 x 1200 |
| Maximum Brightness | 5000 Lumens |
| Aspect Ratio | Native: 16:10 |
| Scan | Horizontal: 15 to 100 kHz Vertical: 50 to 120 Hz |
Lens
| Focus | Manual |
| Lens | f/2 (f = 18.2 - 31.1 mm) |
| Lens Shift | Vertical: + 0.59% Horizontal: ± 0.25% |
| Optical Zoom | 1.7x |
| Throw Distance | 2.6 - 46.6' / 0.792 - 14.204 m |
| Throw Ratio | 1.3 to 2.2:1 |
| Projection Size | 30 - 300" / 76.20 - 762.00 cm |
Features
| Keystone Correction | Manual-Horizontal: ± 25° Manual-Vertical: ± 30° |
| Ceiling Mountable | Yes |
| Rear Screen Projection | Yes |
| Built-In Speaker | Yes |
| Speaker Power | 20W |
Input/Output Connectors
| Wireless LAN / Wi-Fi | None |
General
| Light Source | Laser Phosphor |
| Expected Lamp Life | Medium Brightness: 20,000 Hours |
| Fan Noise | Medium Brightness: 39 dB Low Brightness: 33 dB |
| Power Consumption | Medium Brightness: 530 W Low Brightness: 420 W Standby Mode (Lamp Off): 6 W Standby Mode (Lamp Off): 0.5 W |
| Dimensions (W x H x D) | 18.5 x 5.4 x 14.4" / 47.0 x 13.7 x 36.6 cm |
| Weight lb | 19.4 |
Packaging Info
| Package Weight | 25 lb |
| Box Dimensions (LxWxH) | 23.8 x 19.3 x 10" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
