Product Overview
NEC V652 Overview

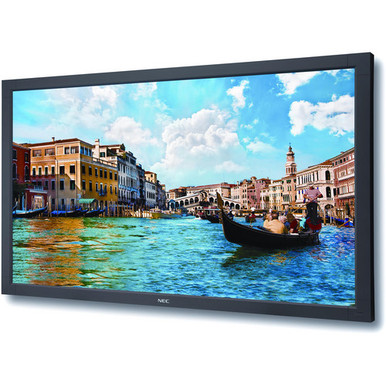

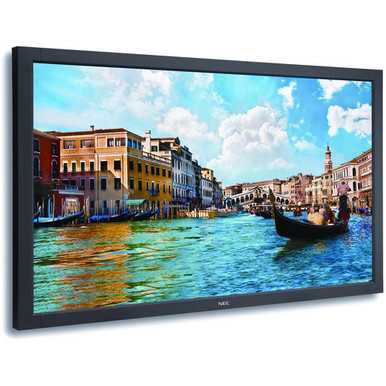

Display your business's content in 1080p with the NEC V652 65"-Class Full HD Commercial LED Display. This commercial monitor has a 65" LED edge-lit display and features a 1920 x 1080 native resolution for viewing detailed Full HD images. It supports portrait or landscape viewing orientations and an I/O expansion slot in addition to the built-in HDMI, DVI-D, DisplayPort, VGA, BNC composite, and other connections. As a digital-signage-capable display, the V652 is suitable for use in environments such as hospitals and restaurants. For audio playback, 10-Watt speakers are built-in to capture the ears as well as the eyes of your clientele.
LED edgelighting technology reduces power consumption and allows for a slimmer cabinet depth than CCFL backlights
Built-in expansion slot supports the OPS (Open Pluggable Specification), which is the standardization option slot that simplifies digital signage installations
Full 1080p high-definition resolution for enhanced detail
Commercial-grade LCD panel and components
Expanded connectivity with digital loop-through
Built-in, low-profile 10W speakers enhance the experience
TileMatrix allows you to create video walls up 10 x 10 and customize configuration using on-screen display controls
The NaViSet Administrator 2 free software solution is designed to ease administration and management of large-display device installations
Integrated thermal capabilities and cooling system
TileComp
Separate group/monitor ID function
Ethernet and RS-232 control and communication
Carbon footprint meter
Plug-and-play (DDC/CI, DDC2B)
Scheduler with real-time clock
Screen saver function
POP
Side-by-side viewing
Cable lock slot for security

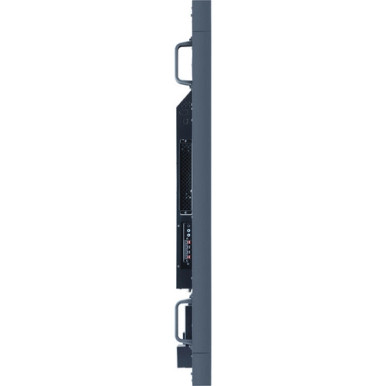

Integrated handles for ease of maneuvering
Touch- and protective screen-ready
Variable picture modes
Adjustable video settings with Noise Reduction and Adaptive Contrast
Input labeling
Backlight adjust
Aspect ratio control
NEC V652 Specs
Display
| Screen Size (Diagonal) | 65" |
| Resolution | 1920 x 1080 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Brightness | 450 cd/m² (Maximum) 320 cd/m² (Typical) |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 56.2 x 31.6" / 1428.5 x 803.5 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Horizontal Frequency | 31.5 to 91.1 kHz (Analog) 31.5 to 91.1 kHz (Digital) |
| Vertical Frequency | 50 to 85 Hz |
| Dot Pitch | 0.74 x 0.74 mm |
| Pixels Per Inch (ppi) | 33 ppi |
| Backlighting Technology | Edge LED |
Connectivity
| Input Ports | 1 x HDMI Audio, Video 1 x DVI-D Video 1 x DisplayPort Audio, Video 1 x 15-Pin VGA Video 1 x BNC Composite Video 1 x BNC Composite Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 3 x 1/8" / 3.5 mm – Audio 1 x DVI-D – Video |
| Ethernet Ports | 1 |
General
| Display Orientation | Landscape, Portrait |
Electrical
| Power Consumption | Typical: 185.0 W Standby: 2.0 W |
Environmental
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 90% |
| Operating Altitude | 9842' / 3000 m |
| Storage Altitude | 40,000' / 12,192 m |
Physical
| Wall Mounting | 400 x 400 mm |
| Bezel Thickness | 50.5 mm (Bottom) 53.5 mm (Right) 50.5 mm (Top) 53.5 mm (Left) |
| Dimensions | 60.6 x 37.2 x 20.2" / 154.0 x 94.4 x 51.2 cm (with Stand) 60.6 x 35.8 x 3.5" / 154.0 x 90.9 x 8.8 cm (without Stand) |
| Weight | 125.9 lb / 55.1 kg (with Stand) 114.4 lb / 52 kg (without Stand) |
Packaging Info
| Package Weight | 129 lb |
| Box Dimensions (LxWxH) | 71 x 46.5 x 12.5" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
