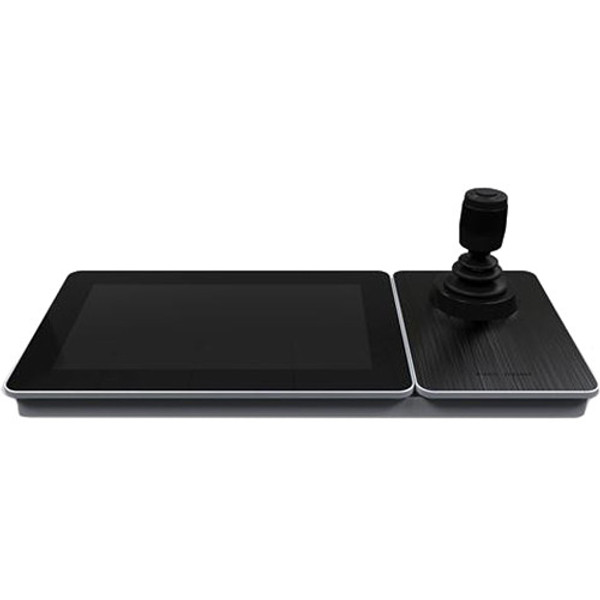

Product Overview
POE power supply
Capable of decoding 2-ch at 1080P decoding; up to 16-division window display
Live view on touch panel
DVI and HDMI output to monitor
Controllable of 2000 devices
Access to Hikvision products including DVR, DVS, NVR, network camera, speed dome, etc.
Control of MVC and decoders for video decoding and output on video wall
PTZ control, setting and calling preset, patrol and pattern
Support upgrade and configuration files import/export by USB flash disk
Support recording and picture capturing; saving files in USB flash disk or uploading to FTP server
Two-level user authority and up to 16 user accounts are configurable: one admin and 15 operators
- Preview camera live image on network keyboard touchscreen
- Quickly switch to the previous/next camera
- Control speed dome movement via joystick
- Live view on touch panel
- DVI and HDMI output to monitor
- Controllable of 2000 devices
- Connectable to Multi-Functional Video Center (MVC), Matrix Access Gateway (VAG), Video Wall Controller, and Decoder
- 128 x 64 Pixel Screen
- Supports PTZ Control and Picture Capture
Specifications
System
TFT LCD Screen 10.1" TFT LCD touchscreen
1024 x 600 pixel screen
Joystick 4-axis joystick
Local Decoding Local live view at 1080P/720P/HD1/BCIF/CIF/QCIF resolution, and up to 16-division window display
External Interfaces
Network Interface 1-port 10M/100M/1000M Adaptive Ethernet port
Two-Way Audio Input 1-ch, 3.5mm connector (2.0 Vp-p, >1 kΩ)
Audio Output 1-ch, 3.5mm connector (2.0 Vp-p, 600 Ω)
Wi-Fi Supported
USB Interface USB 2.0 × 2
Video Interface HDMI, DVI
General
Power Supply 12 VDC/PoE
Consumption ≤15 W
Working Temperature 14° F to 131° F (-10° C to 55° C)
Working Humidity 10% to 90%
Dimensions (W x D x H) 404 mm × 180 mm × 163 mm (15.9" × 7.1" × 6.4")
Weight 1.7 kg (3.75 lb)
