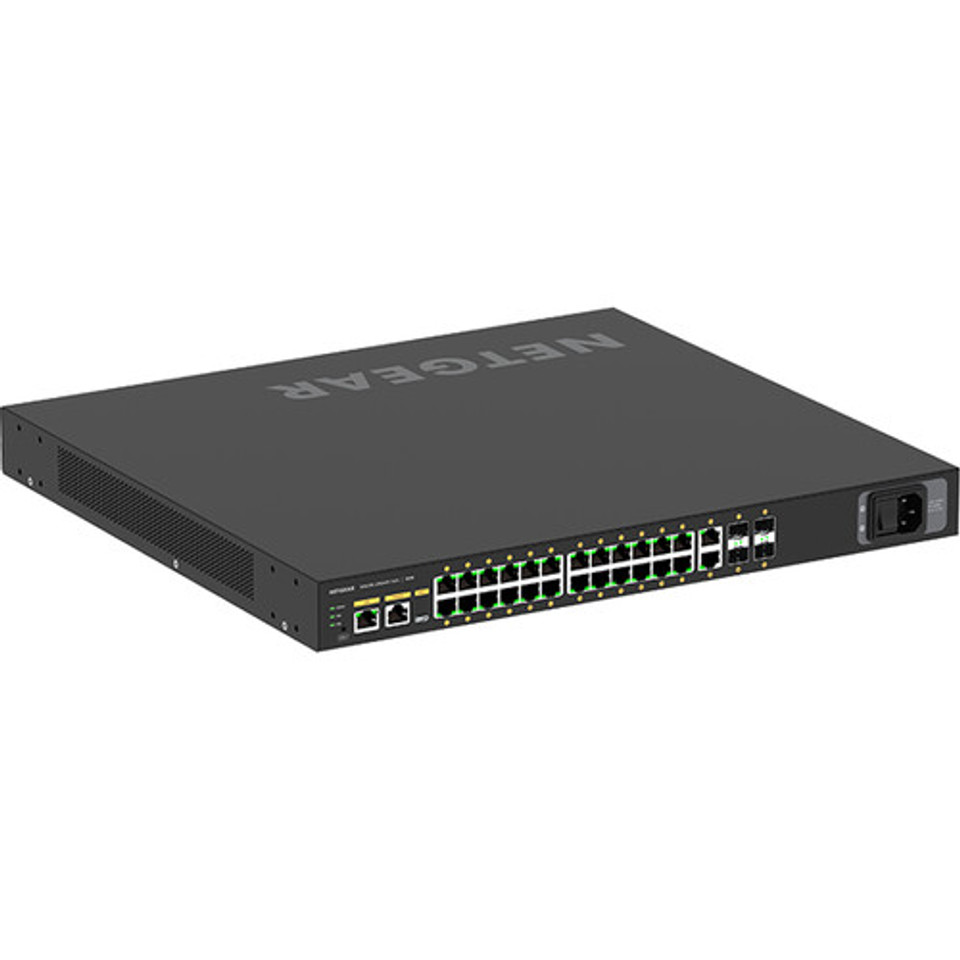

Netgear AV Line M4250 GSM4230PX-TAANAS 24-Port Gigabit PoE+ Compliant Managed Network Switch with SFP+ (480W)

Netgear

(No reviews yet) Write a Review
$3,275.00
SKU:
GSM4230PX-TAANAS
UPC:
060644916875
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

Netgear GSM4230PX Overview

Designed with input from industry professionals, the AV Line M4250 GSM4230PX 24-Port Gigabit PoE+ Compliant Managed Network Switch from Netgear is engineered for 1G AV over IP. Enjoy 24 rear-facing PoE+ compliant RJ45 ports with a 480W power budget and four 10G SFP+ uplink slots that ensure a clean integration in AV racks and pre-configuration for out-of-the-box functionality.

Built for AV over IP Pre-Configured for Out-of-the-Box Use
NETGEAR IGMP Plus enables instant multicast functionality for most AV over IP installations.
Dedicated AV Web-Based Interface
Unique interface designed for the AV professional with color-coded, port-based profiles.
Profiles for Common Audio Protocols
Quickly assign profiles to ports for Dante, AES67, and AVB audio configurations.
Video Profiles Built-In
Special profiles for NVX, SVSI, Q-SYS, and Dante video profiles can be easily assigned to ports as needed.
Mounting Flexibility Rackmount Versatility
1 RU, 7.9" deep rackmount with all power and Ethernet ports on the back.
Reversed Mounting Possibility
Possible reversed mounting with ports in the front including recessed mounting to protect cables.
Universal Mounting Availability
Mounting outside the rack made possible with bottom M5 and front M10 threaded holes.
Advanced Features Layer 2 / Layer 3 Switching
Common Layer 2 and Layer 3 switching engine across all M4250 models.
Control Methods Abound
Built-in IT web GUI, console, telnet, and SSH.
Standard Network Features
Feature set includes static, RIP and PIM routing, DHCP Server, and PTPv2.

Netgear GSM4230PXSpecs

Inputs/Outputs
24x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
4x SFP+ 10 GbE
2x RJ45 Gigabit Ethernet LAN
2x USB-C
1x USB-A
Switching Bandwidth
132 Gb/s
PoE Power Budget
480 W
Protocols
Layer Services Supported
Layer 2, Layer 3
Supported Protocols
DHCP Server
IGMP Snooping
IPv4
IPv6
Link Aggregation
Port Mirroring
Jumbo Frames Support
12,000 Bytes
MAC Address Table Size
16K
Security
Security Features
DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control
Performance
Latency
0.8 to 2.2 µs
Forwarding Rate
98.21 Mpps
Switching Bandwidth
132 Gb/s
Packet Buffer
16 Mb
Computer
CPU
Quad-Core: Up to 1.8 GHz Cortex A57
Memory
2 GB
Electrical
PoE per Port
30 W
PoE Power Budget
480 W
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Supply Type
Internal
Environmental
Operating Temperature
32 to 77°F / 0 to 45°C
Operating Humidity
90%
Storage Temperature
-4 to 158°F / -20 to 70°C
Storage Humidity
95%
Noise Level
67.0 dB (Active)
General
Certifications
No
Cooling System
Fan/Passive Combo
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.3 x 15.7 x 1.7" / 440 x 400 x 43.2 mm
Weight
9.5 lb / 4.3 kg
Packaging Info
Package Weight
16.68 lb
Box Dimensions (LxWxH)
21.2 x 18.3 x 4.8"
