Product Overview
Product Overview
Use the SW-505-8P-F to provide 12-Port of network connectivity and PoE+ power in commercial or residential applications. This 12-Port, fanless switch includes 8 Gigabit PoE+ Ethernet ports, 2 non-PoE Ethernet ports, and 2 Gigabit SFP expansion ports. Designed to support AV-over-IP (AVoIP) applications, the SW-505-8P-F includes eight 1-Gigabit PoE+ Ethernet ports, two non-PoE Ethernet Ports, and two 1-Gigabit SFP expansion ports. Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb. The 8 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/at-compliant devices, with a maximum of 30W per port. For separately powered devices, these ports deliver network connectivity only. The total power budget is 130W for all PoE+ ports combined. The advanced Layer 2/Layer 3 features and easy-to-use management interface simplify configuration and make this switch ideal for use in single-switch AVoIP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously. This model also features a small form factor and fanless design that is perfect for conference rooms, offices, theaters, or wherever silent operation is needed.
Main Features
- Refreshed, simplified user interface
- Layer 2/Layer 3 capabilities (static routing included)
- Multicast/IGMP snooping and querying feature
- Per port unregistered flooding
- 130W Total power budget
- Dante and AES67 compatibility
- AV-Over-IP Compatible
- PoE Monitoring; Auto-Recovery and Power Scheduling
- Easy port aggregation; 1G SFP ports can be aggregated for a 2G connection
- 802.1Q VLAN And QoS support including DCSP
General Information

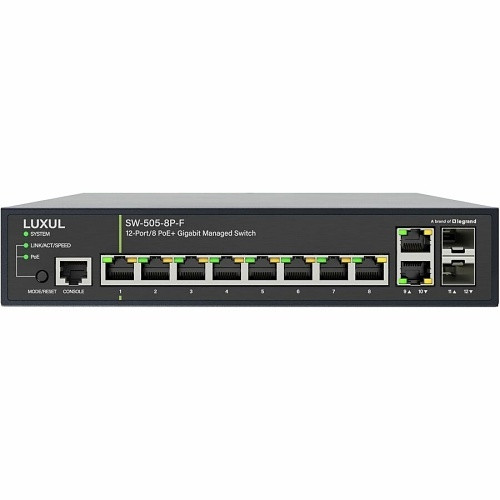

Name: Luxul SW-505-8P-F 12-Port 1Gb L2/L3 Managed Switch, US Powercord
Category: Luxul by Legrand, Data Comm & Networking, Hubs, Routers & Switches, Network Switches
UPC Code: 655003923483
| General Information: | |
|
The SW-505-8P-F provides 12 ports of network connectivity and PoE+ power in commercial or residential applications designed to support AV-over-IP (AVoIP) applications. This 12-port, fanless switch includes 8 1 Gbps PoE+ Ethernet ports, 2 non-PoE Ethernet ports, and 2 - 1 Gbps SFP expansion ports. |
|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | SW-505-8P-F |
| Manufacturer Website Address | http://www.legrand.us |
| Brand Name | Luxul |
| Product Model | SW-505-8P-F |
| Product Name | 12-Port L2/L3 Managed Switch - 8 PoE+ Gigabit Front Facing Ports |
| Product Type | Ethernet Switch |
| Product UPC | 655003923483 |
| Technical Information: | |
| Features | Fanless |
| Interfaces/Ports: | |
| Total Number of Network Ports | 8 |
| Network (RJ-45) | Yes |
| Modular | Yes |
| Port/Expansion Slot Details | 8 x Gigabit Ethenet PoE+ 2 x Gigabit Ethenet Network 2 x Gigabit Ethenet Expansion Slot |
| Media & Performance: | |
| Media Type Supported | Twisted Pair Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-T 1000Base-X |
| I/O Expansions: | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Network & Communication: | |
| Layer Supported | 3 |
| Management & Protocols: | |
| Manageable | Yes |
| Power Description: | |
| PoE (RJ-45) Port | Yes |
| Power Source | PoE+ |
