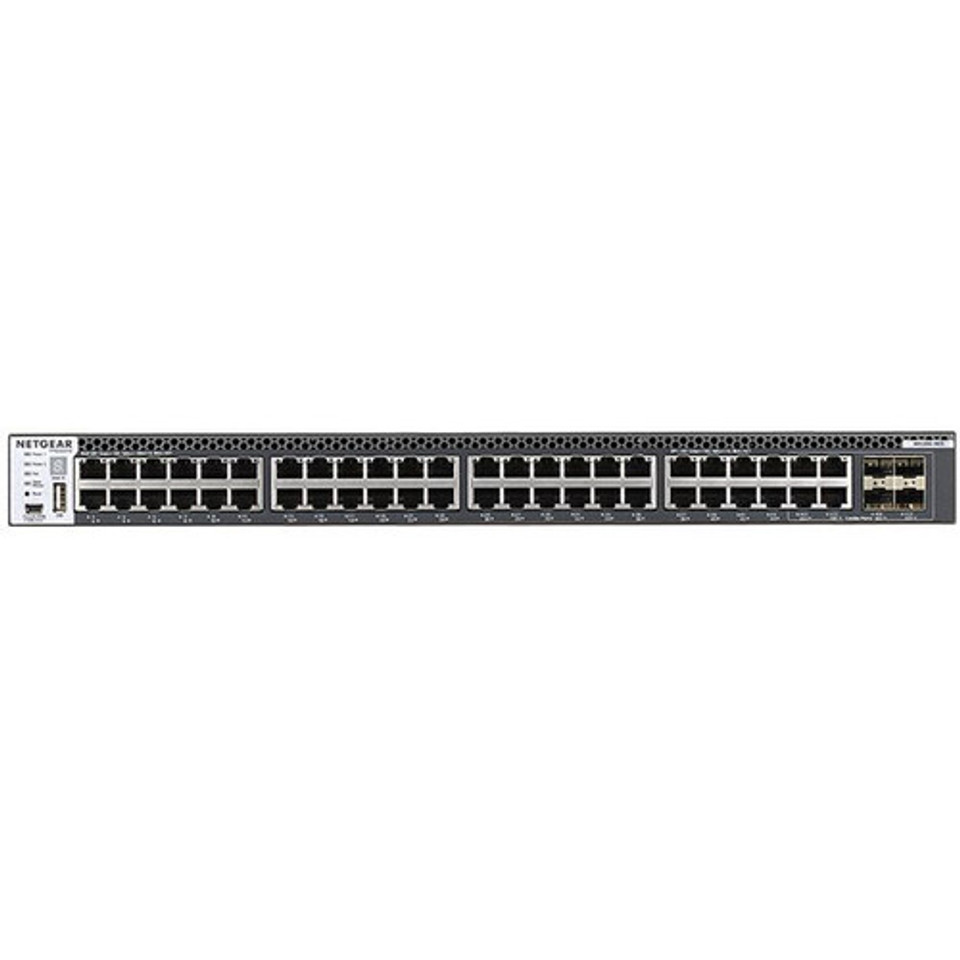

Netgear XSM4348CS-100NES M4300-48X 48-Port 10G Managed Network Switch with SFP+

Netgear

(No reviews yet) Write a Review
$4,498.99
SKU:
XSM4348CS-100NES
UPC:
606449114607
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

Netgear XSM4348CS-100NES Overview

Expand your small to medium-sized business's network capacity with the M4300-48X 48-Port 10G Managed Network Switch from Netgear. This fully managed rackmount network switch includes Layer 2, 3, and 4 feature sets, such as hot-swappable mixed stacking, with up to eight switches in a single logical switch, but no license requirements to support video broadcast and other high-bandwidth applications.

With 48 10G Ethernet ports, you can connect computers and other devices for high-bandwidth applications. This switch includes a 250W power supply with support for a second PSU for redundancy. The M4300-48X also includes four shared 10G SFP+ ports for fiber uplinks. Designed for smooth data transfers, this switch supports a 960 Gb/s non-blocking switching capacity and 714 Mpps forwarding rate. Your data is secured by features such as access control, private VLANs, and denial of service (DoS) attack protection.

Reliability High Availability (HA)
Nonstop forwarding (NSF) virtual chassis architectures with hitless failover across the stack.
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities.
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP).
Link Dependency
Enables or disables ports based on link state of different ports.
Advanced IPv4/IPv6 Security
Malicious code detection, DHCP Snooping, IP Source Guard protection, and DoS attacks mitigation.
Easy to Manage Simple GUI
Fully functional web console (GUI) for IT admins who prefer an intuitive graphical interface.
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit.
Room to Grow
With PoE+, plug-and-play ports, and hot-swap, you're ready to grow whenever you need to.
Ready for AV-over-IP
Zero-Touch AV-over-IP
Preconfigured for out-of-box L2 multicast (SDVoE-ready).
No Delay
Non-blocking fabric for near-zero switch latency.
Netgear IGMP Plus
Prevent network flooding with multicast implementation of Layer 2 multicast.

Netgear XSM4348CS-100NESSpecs

Inputs/Outputs
48x RJ45 10 GbE
4x SFP+ 10 GbE
1x RJ45 Gigabit Ethernet LAN
1x RJ45 RS-232 (Console)
1x Micro-USB
1x USB-A
Stackable
Yes
Switching Bandwidth
960 Gb/s (Non-Blocking)
PoE Power Budget
480 W
Stackable
Yes
Protocols
Layer Services Supported
Layer 2, Layer 3, Layer 4
Supported Protocols
Auto-VoIP
DHCP Server
IGMP Snooping
IPv4
IPv6
Link Aggregation
RADIUS
MAC Address Table Size
128K
Security
Security Features
DHCP Snooping
DoS Attack Prevention
RADIUS Authentication
Storm Control
Performance
Latency
1.5 to 2.4 µs
Forwarding Rate
714 Mpps
Switching Bandwidth
960 Gb/s (Non-Blocking)
Packet Buffer
56 Mb
Computer
Flash Memory
256 MB
CPU
Single-Core: Up to 800 MHz
Memory
1 GB
Electrical
PoE per Port
30 W
PoE Power Budget
480 W
Power Draw
577.00 W (Max)
Input Power
110 to 220 VAC, 50 / 60 Hz
Power Supply Type
Internal
General
Certifications
CE, EN, VCCI, RCM, CCC, FCC, ANSI, BSMI
Noise Level
40.3 dB
Cooling System
Fan
Mean Time Between Failures (MTBF)
0.2 Million Hours
Indicator Lights
Yes
Rack Mountable
Yes 1 RU
Dimensions
17.3 x 13.6 x 1.7" / 44 x 34.5 x 4.4 cm
Weight
14.44 lb / 6.55 kg
Packaging Info
Package Weight
17.71 lb
Box Dimensions (LxWxH)
22.8 x 17.4 x 3.6"
