Product Overview
Atlona HD570 Overview
Send embedded HDMI audio out to an optical or legacy analog receiver for surround sound with the Atlona AT-HD570 HDMI Audio De-Embedder. The unit features HDMI in and out, and does not effect the video quality of the HDMI signal. Audio embedded in the incoming HDMI signal is de-embedded by the AT-HD570 and sent out via optical digital or converted to analog and output via multi-channel 3.5mm outputs. Many multi-channel formats are supported including 5.1 and 7.1-channel LPCM as well as Dolby Digital and DTS varieties.
Key Features
- De-embed HDMI Audio
- Multi-channel Analog / Optical Outputs
- Multi-Channel Audio Support
- Supports up to 1080p Resolution
Atlona HD570 Specs
Video
| Resolution Support | Video: 1080p 1080i 720p 576p 480p NTSC PAL VESA: 640 x 480 800 x 600 1024 x 768 1280 x 1024 1360 x 768 1600 x 1200 1920 x 1200 |
| Color Space | YCbCr 4:4:4, xvYCC |
| Color Depth | 24-bit pass-through |
| Inputs | 1 x HDMI Type A |
| Outputs | 1 x HDMI Type A |
Audio
| Format Support | PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio |
| Bit Depth | Up to 24-bit pass-through |
| Sample Rates | 32 kHz 44.1 kHz 48 kHz 88.2 kHz' 96 kHz 176.4 kHz 192 kHz |
| THD + N | -95 dB |
| Outputs | 1 x Multi-channel output over 4 3.5mm jacks 1 x Optical output |
General
| Transmission Distance | HDMI: 50' / 15 m |
| Signal | Bandwidth: 6.75 Gbps CEC: Yes HDCP: Compliant |
| Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 140°F / -20 to 60°C Relative Humidity: 20-90% non-condensing |

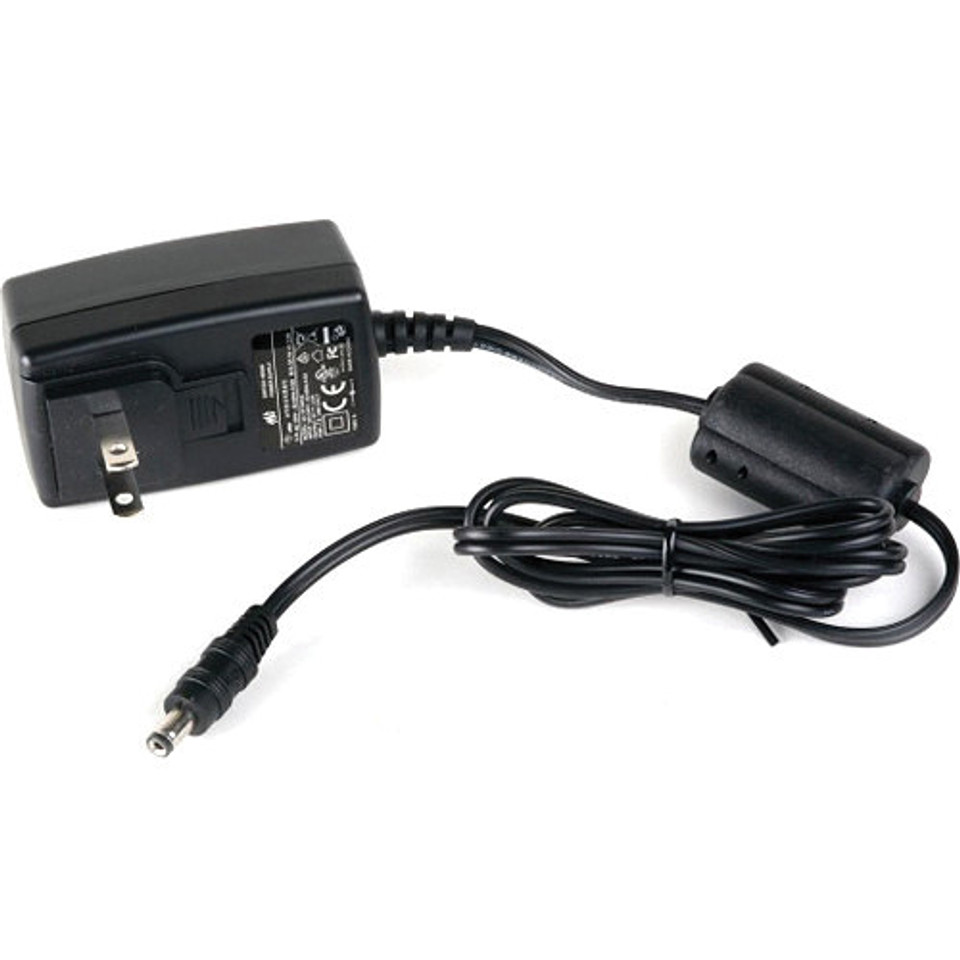

| Power | Consumption: 6 W (1 W, idle) Supply: 5 VDC, 2.6 A |
| Dimensions | 1 x 4 x 5.9" / 25 x 102 x 150 mm |
| Weight | 0.7 lb / 320 g |
Packaging Info
| Package Weight | 1.8 lb |
| Box Dimensions (LxWxH) | 11.1 x 7.3 x 2.9" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
