IC Realtime NVR-208NS 8 Channel 1U NVR, Integrated 8 Port POE Switch, Supports 8MP Resolution, 80Mbps Throughput, H.264, HDMI, Up to 6TB (Black)

IC Realtime NVR-208NS 8 Channel 1U NVR, Integrated 8 Port POE Switch, Supports 8MP Resolution, 80Mbps Throughput, H.264, HDMI, No HDD installed, Capacity Up To 6TB (Black)

• 8 Ch, Up to 8MP; 1 HDD

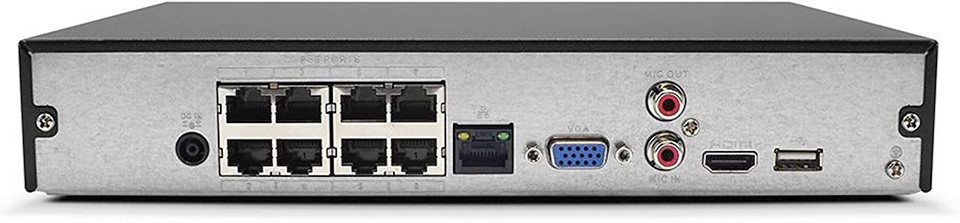

• 8 PoE (IEEE802.3af/at), 1 RJ-45 (10/100/1000Mbps)
• 2 USB; 1 HDMI / 1 VGA
• Compact 1U; Desktop or Rack Shelf
• 2.4 CGI Conformant

• Main Processor: Dual-core embedded processor
• Operating System: Embedded LINUX
• Display Interface: 1 HDMI, 1 VGA
• Display Resolution: HDMI: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, VGA: 1920 x 1080, 1280 x 1024, 1280 x 720
• OSD: Camera title, Time, Video loss, Camera lock, Motion detection, Recording
• HDMI Decoding: 1ch@8MP 30fps, 4ch@1080P 30fps
• IP Camera Input: 8 Channel
• Trigger Events: Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video Detection: Motion Detection, MD Zones: 396 (22 x 18), and Tampering
• Search Mode: Time /Date, MD and Exact Search (accurate to second), Smart search
• Backup Mode: USB Device/Network
• Bit Rate: 16Kbps ~ 20Mbps Per Channel
• Two-way Talk: 1 Channel Input, 1 Channel Output, RCA
• Record Compression: H.265/H.264
• Record Resolution: 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P
• Record Rate: 80Mbps
• Internal HDD: 1 SATA III Port, up to 6TB capacity for each HDD
• HDD Mode: Single
• Ethernet: 1 RJ-45 port (10/100/1000Mbps)
• Protocol: HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support IC Realtime IP camera, DVR, NVS and etc.), Easy4ip
• Max. User Access:128 users
• USB: 2 ports (1 Rear USB2.0, 1 Front USB2.0)
• Dimensions: 10.2" x 8.9" x 1.9"
