Product Overview

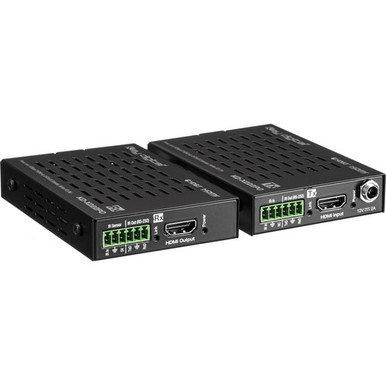

Key Digital KD-X222 Overview
The HDBaseT 4K HDMI Extender Set from Key-Digital is an HDCP 2.2 compliant product that extend 4K/UHD 24/25/30 (4:4:4) and 4K/UHD 60 (4:2:0) signals up to 150' using a KD-CAT6STP1X Super Cat 6a shielded cable, or up to 125' using a single third-party Cat 5e/6 cable. 1080p/60, 1920 x 1200, 3D signals are extended up to 250' via a single KD-CAT6STP1X Super Cat 6a shielded cable, or up to 230' using a single third-party Cat 5e/6 cable. In addition to HDMI video and audio signals, this extender set carries IR or RS-232 for controlling remotely located equipment. This unit features power extension from the transmitter to the receiver with Power over HDBaseT, so the receiver unit does not require a power supply.
HDR
More life-like images through a greater range of luminance levels
4K/UHD Resolution
Supports signals up to 4096 x 2160 60 Hz [4:2:0] 8-bit, 4096 x 2160 30 Hz [4:2:2] 12-bit, and 4096 x 2160 30 Hz [4:4:4] 8-bit
Deep Color Support
Up to UHD/4K 30 Hz [4:2:2] 12-bit or 60 Hz [4:2:0] 8-bit
3D
Support for standard 3D stereoscopic signal formats
Low-Profile
Super-slim chassis design
HDMI and HDCP Licensing
Fully licensed and compatible with HDCP 2.2 and HDMI latest technology such as 4K/UHD [4:2:0] 8-bit at 60 fps
EDID Control
Internal library features 15 default EDID configurations and native EDID data from Output/Display devices connected via Rx
Hot Plug Detection Control
Enables integrator to choose if active signal voltage is forced to connected input devices
Full Buffer System
Manages TMDS re-clocking / signal re-generation, HDCP authentication with source & display, EDID control handshake, and Hot Plug control
IR Sensor
Sensor powering via +5V on Rx unit's IR In port collects line-of-sight IR from remote without external IR connecting block
Up/Down IR
Two channels of IR enable control to/from devices connected to Tx and Rx units
RS-232
Bidirectional control to/from Tx and Rx unit on Phoenix connector
Rotary Switch RS-232 Control Mode
Provides control of Tx unit as well as connectivity status
Lossless Compressed Digital Audio
Support for Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio
CEC Support
For inter-device control between input and output HDMI channel
I2C Communication
EDID and HDCP authentication to Display and Source
Control System Support
Fully controllable by all RS-232 supported control systems via open API: Compass Control, AMX, Crestron, KNX, RTI, Savant, URC, Leviton, etc.
Key Digital KD-X222 Specs
| Inputs | Transmitter: 1 x HDMI, 1 x IR Receiver: 1 x Cat 5e/6 UTP/STP, 1 x IR |
| Outputs | Transmitter: 1 x Cat 5e/6 UTP/STP, 1 x IR/RS-232 Bidirectional Receiver: 1 x HDMI, 1 x IR/RS-232 Bidirectional |
| Input DDC Signal | 5 V p-p (TTL) |
| Input Video Signal | 1.2 V p-p |
| Regulation | CE, RoHS, WEEE |
| Enclosure | Black metal |
| Power | 12 VDC / 2 A, 100-240 VAC, 50-60 Hz, interchangeable head with screw-in connector |
| Dimensions | 4.1 x 2.8 x 0.9" (10.4 x 7.1 x 2.2 cm) |
| Weight | 0.75 lb (340 g) |
Packaging Info
| Package Weight | 2 lb |
| Box Dimensions (LxWxH) | 7.1 x 4.1 x 3.2" |
Warranty Information
1 Year Parts & Labor Manufacture Warranty
