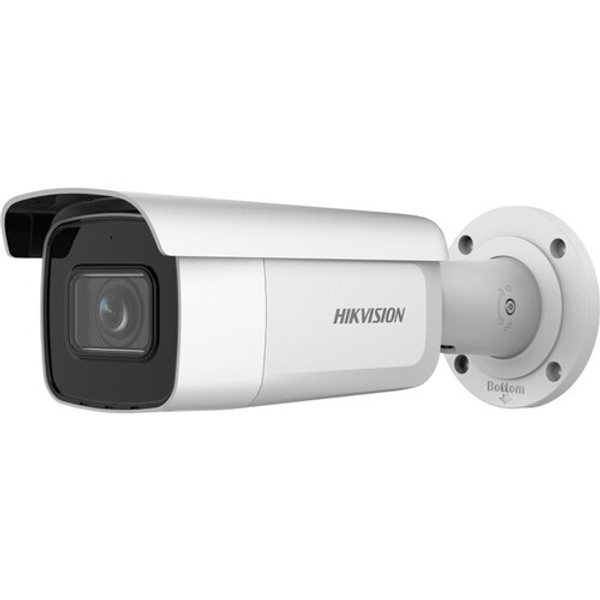

Hikvision AcuSense DS-2CD2683G2-IZS 8MP Outdoor Network Bullet Camera with Night Vision & 2.8-12mm Lens

• High quality imaging with 8MP resolution
• Motorized varifocal lens for easy installation and monitoring
• Efficient H.265 compression technology
• Clear imaging against strong backlight due to 120 dB true WDR technology
• Focus on human and vehicle targets classification based on deep learning
• Audio and alarm interface available
• Water and dust resistant (IP67) and vandal-resistant (IK10)

Specifications

Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV
2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to
35°
Lens Mount Ø 14
Iris Type Fixed
Aperture F1.6

DORI
DORI 2.8 to 12 mm: D: 97 m to 290 m, O: 38 m to 115 m, R: 19 m to 58 m, I: 9 m to 29 m

Illuminator
Supplement Light Type IR
Smart Supplement Light Yes
IR Wavelength 850 nm
IR Range Up to 60 m

Video
Max. Resolution 3840 × 2160
Main Stream
50 Hz: 20 fps (3840 × 2160)
25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 20 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.

Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream

Audio
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64
Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Environment Noise Filtering Yes

Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user

Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central

Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
SNR ≥ 52 dB

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support micro SD card, up to 256 GB

Audio
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24VDC/24 VAC, 1 A)
Hardware Reset Yes

Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm,
exception
Face Detection Yes
Deep Learning Function
Perimeter Protection
Line crossing detection, intrusion detection
Supports human and vehicle targets classification

General
Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger
capture, send email
Camera Material Aluminum alloy body
Camera Dimension 308.5 mm × 97.9 mm × 93 mm (12.2" × 3.9" × 3.7")
Package Dimension 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
Camera Weight Approx. 1385 g (3.1 lb.)
With Package Weight Approx. 2046 g (4.5 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Anti-flicker, heartbeat, password reset via email, pixel counter
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Firmware Version V5.5.113
Software Reset Yes
Power Consumption and Current
12 VDC, 1.08 A, max. 13 W
PoE (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, max. 15 W
Power Supply
12 VDC ± 25%
PoE: 802.3at, Class 4
Power Interface Ø 5.5 mm coaxial power plug

Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
